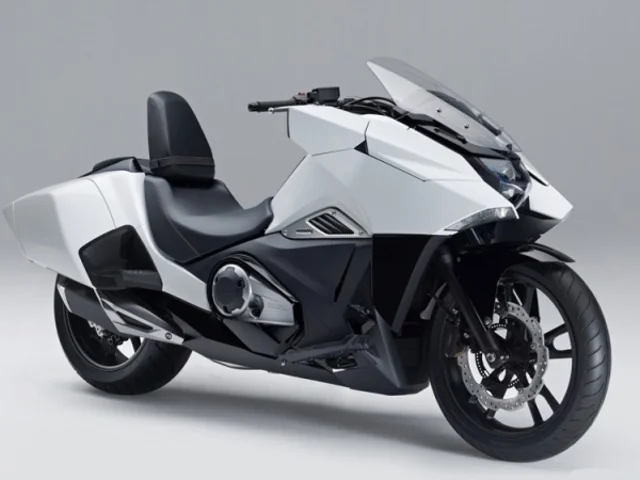

Honda NM4-02
2015Super Moto

Honda NM4-02

Key specifications

Engine
670 cc
Fuel type
petrol
Fuel capacity
3.7 L
Transmission
Automatic
Seat height
26 mm
Front brakes
Single disc. ABS. Two-piston calipers.
Rear brakes
Single disc. ABS. Single-piston caliper.

Overview

Introducing the 2015 Honda NM4-02: A Bold Step into the Future of Riding The 2015 Honda NM4-02 is not just a motorcycle; it’s a statement. Positioned within the super motard category, this innovative bike appeals to riders who crave both style and substance. With its striking, futuristic design and a low, approachable seat height of just 650 mm, the NM4-02 is tailored for urban adventurers and touring enthusiasts alike. Honda has successfully blended cutting-edge aesthetics with practical functionality, making this model a standout in a market saturated with traditional motorcycles. Engine Performance and Riding Characteristics At the heart of the NM4-02 lies a robust 670cc twin-cylinder, four-stroke engine that delivers a harmonious balance between performance and fuel efficiency. With a compression ratio of 10.7:1, it produces smooth power across the rev range, ensuring a responsive ride whether you're navigating city streets or cruising open highways. The automatic gearbox allows for effortless acceleration, freeing you from the complexities of shifting gears. Coupled with a fuel consumption rate of just 3.68 litres per 100 km (approximately 63.92 mpg), the NM4-02 proves to be an economical choice for those long rides without sacrificing performance. Riders can expect exhilarating power delivery and a thrilling experience with every twist of the throttle. Key Features and Technology The NM4-02 is equipped with an array of features that enhance both comfort and safety. Its advanced PGM-FI fuel injection system ensures optimal performance under various conditions while the liquid cooling system maintains engine efficiency. The motorcycle is fitted with state-of-the-art ABS brakes, providing exceptional stopping power with a 320 mm front disc and a 240 mm rear disc, allowing for confident braking in diverse environments. The distinctive

Pros

    Cons

    • Futuristic Design: The NM4-02’s unique styling sets it apart, attracting attention wherever you ride.
    • Fuel Efficiency: Exceptional fuel economy ensures longer rides with fewer stops.
    • User-Friendly Technology: The automatic transmission and advanced braking systems make it accessible for riders of all skill levels.
    • Limited Rear Suspension Travel: With only 23 mm of rear travel, the NM4-02 may not handle extreme off-road conditions as well as traditional super motards.
    • Weight Distribution: Some riders may find the weight distribution less optimal for aggressive cornering.
    • Market Niche: Its unconventional design may not appeal to all motorcycle enthusiasts, particularly those who prefer classic styles.

    Technical details

    Source specification data

    Make
    Honda
    Model
    NM4-02
    Category
    Super motard
    Starter
    Electric
    Comments
    Prototype planned for production.
    Color Options
    Pearl Glare White
    Carrying Capacity
    Saddle bags.
    Gearbox
    Automatic
    Ignition
    Digital transistorized with electronic advance
    Fuel System
    Injection. PGM-FI, 36mm throttle body
    Bore X Stroke
    73.0 x 80.0 mm (2.9 x 3.1 inches)
    Compression
    10.7:1
    Displacement
    670.00 ccm (40.88 cubic inches)
    Cooling System
    Liquid
    Engine Details
    Twin, four-stroke
    Fuel Consumption
    3.68 litres/100 km (27.2 km/l or 63.92 mpg)
    Greenhouse Gases
    O2
    g/km. (
    O2
    -
    Carbon
    dioxide emission)
    Valves Per Cylinder
    4
    Transmission Type Final Drive
    Chain
    Seat Height
    650 mm (25.6 inches) If adjustable, lowest setting.
    Fuel Capacity
    14.00 litres (3.70 gallons)
    Rake
    33.0°
    Trail
    110 mm (4.3 inches)
    Rear Tyre
    160/60-ZR17
    Front Tyre
    120/70-ZR18
    Rear Brakes
    Single
    disc.
    S
    .
    Single
    -piston caliper.
    Front Brakes
    Single disc. ABS. Two-piston calipers.
    Rear Suspension
    Pro-Link® single shock
    Front Suspension
    41mm fork
    Rear Wheel Travel
    23 mm (0.9 inches)
    Front Wheel Travel
    99 mm (3.9 inches)
    Rear Brakes Diameter
    240 mm (9.4 inches)
    Front Brakes Diameter
    320 mm (12.6 inches)

    Available colors

    Pearl Glare White
