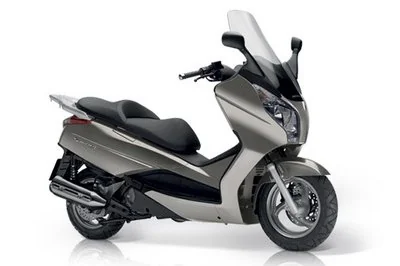

Honda S-Wing 125
2013Scooter

Honda S-Wing 125

Key specifications

Engine
125 cc
Power
13 HP
Torque
11 Nm
Weight
156 kg
Fuel type
petrol
Fuel capacity
2.5 L
Transmission
Automatic
Seat height
31 mm
Front brakes
Single disc. Combined three-piston calliper, drilled rotor and sintered metal pads. Optional ABS.
Rear brakes
Single disc. Single-piston calliper, Combined Brake system and resin mould pads. Optional ABS

Overview

Introducing the 2013 Honda S-Wing 125, a stylish and practical scooter that perfectly blends urban agility with dependable performance. Designed for the city commuter and those who seek a reliable ride for short to medium distances, the S-Wing 125 stands out with its sleek aesthetic and robust engineering. Honda has carved a niche for this model in the competitive scooter market, offering a perfect entry point for both new riders and seasoned enthusiasts looking for a nimble and efficient urban companion. At the heart of the S-Wing 125 lies a potent 125cc single-cylinder, four-stroke engine, delivering a commendable 13.01 horsepower at 9,000 RPM. This powerplant is designed for smooth acceleration and effortless cruising, making it perfect for navigating through bustling city streets or zipping down winding backroads. With a torque output of 11.10 Nm at 7,500 RPM, riders will appreciate the responsive throttle that makes overtaking a breeze. The advanced PGM-FI electronic fuel injection ensures optimal fuel efficiency while maintaining a clean and eco-friendly ride, making it an excellent choice for the environmentally conscious rider. Equipped with a steel frame that balances strength with lightweight agility, the S-Wing 125 features a sophisticated suspension system that enhances ride comfort and stability. The 33mm telescopic front forks and dual-damper unit swingarm at the rear provide a smooth ride over various terrains, while the optional ABS on both front and rear brakes ensures confident stopping power in any weather conditions. With a seat height of 776 mm, it caters to a wide range of riders, and the spacious under-seat storage adds practicality for daily commutes. Add to this the electric start and stylish color options—grey, black, and white—and you have a scooter that not only performs well but also looks great doing it. **

Pros

  • Agile Handling: Lightweight design and responsive suspension make it easy to maneuver through city traffic.
  • Fuel Efficiency: The advanced fuel injection system provides excellent fuel economy, perfect for daily commuting.
  • Comfortable Ride: Generous under-seat storage and a well-padded seat add to the overall comfort of longer rides.

Cons

  • Limited Power for Highways: While great for city riding, the 125cc engine may struggle on highways or steep inclines.
  • Basic Features: Lacks advanced tech features found in newer models, which may deter tech-savvy riders.
  • Weight: At 156 kg, it might feel a bit heavy for some riders when maneuvering at low speeds or when parked.

Technical details

Source specification data

Make
Honda
Model
S-Wing 125
Category
Scooter
Starter
Electric
Color Options
Grey, Black, White
Power
13.01 HP (9.5 kW)) @ 9000 RPM
Torque
11.10 Nm (1.1 kgf-m or 8.2 ft.lbs) @ 7500 RPM
Gearbox
Automatic
Ignition
Digital transistorised with electronic advance
Driveline
V-belt
Fuel System
Injection
.
M
-
I
electronic fuel injection
Bore X Stroke
52.4 x 57.8 mm (2.1 x 2.3 inches)
Compression
11.0:1
Displacement
125.00 ccm (7.63 cubic inches)
Cooling System
Liquid
Engine Details
Single cylinder, four-stroke
Transmission Type Final Drive
Belt
Dry Weight
156.0 kg (343.9 pounds)
Seat Height
776 mm (30.6 inches) If adjustable, lowest setting.
Fuel Capacity
9.40 litres (2.48 gallons)
Overall Width
745 mm (29.3 inches)
Overall Height
1,439 mm (56.7 inches)
Overall Length
2,090 mm (82.3 inches)
Ground Clearance
134 mm (5.3 inches)
Power Weight Ratio
0.0834 HP/kg
Wheels
Triple-spoke cast aluminium
Rear Tyre
130/70-M12
Frame Type
Steel
Front Tyre
110/90-M13
Rear Brakes
Single
disc.
Single
-piston calliper,
Combined Brake
system and resin mould pads.
Front Brakes
Single
disc.
Combined
three-piston calliper, drilled rotor and sintered metal pads.
S
.
Rear Suspension
Dual-damper unit swingarm, 98.1mm axle travel
Front Suspension
33mm telescopic fork, 85.7mm axle travel
Rear Brakes Diameter
220 mm (8.7 inches)
Front Brakes Diameter
240 mm (9.4 inches)

Available colors

GreyBlackWhite
