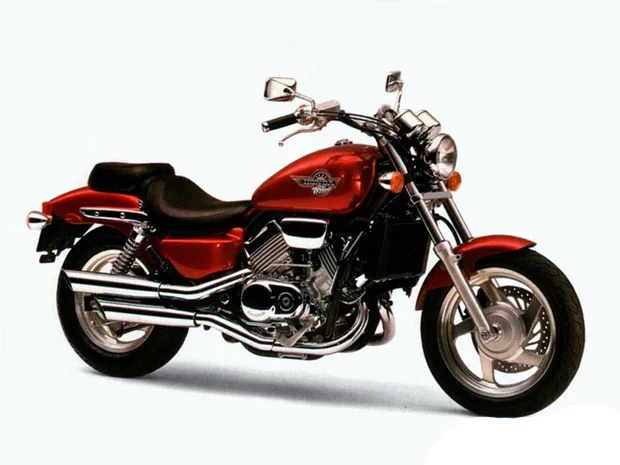

Honda VF 750 Magna
2003Cruiser

Honda VF 750 Magna

$7,499

Key specifications

Engine
748 cc
Power
78 HP
Torque
65 Nm
Weight
229 kg
Fuel type
petrol
Fuel capacity
3.6 L
Transmission
5-speed
Seat height
28 mm
Front brakes
Single disc. 2-piston caliper
Rear brakes
Expanding brake (drum brake). Single, Leading-Shoe Drum

Overview

Introducing the 2003 Honda VF 750 Magna, a stunning representation of Honda’s commitment to blending power with style in the custom-cruiser category. Priced at $7,499, this motorcycle offers a captivating combination of classic design and modern engineering, appealing to both seasoned riders and newcomers alike. With its sleek lines, aggressive stance, and unmistakable V4 engine growl, the VF 750 Magna stands out on the road, embodying the spirit of freedom that defines the cruiser lifestyle. At the heart of the VF 750 Magna is its robust 748cc V4 engine, delivering an impressive 78.2 horsepower at 9,000 RPM and a torque of 65 Nm at 7,250 RPM. This dynamic powertrain provides exhilarating acceleration and smooth performance, making it a joy to ride on both short jaunts and long-distance journeys. The liquid-cooled, four-stroke design ensures reliability and longevity, while the 5-speed transmission allows for effortless gear changes. With a fuel consumption rate of 6.19 liters per 100 kilometers, riders can enjoy the thrill of the open road without frequent stops at the pump. The VF 750 Magna is not just about raw power; it is also equipped with features that enhance comfort and control. The front suspension utilizes a cartridge fork, providing 41 mm of travel to absorb bumps, while the dual shocks at the rear offer an impressive 99 mm of travel for a stable and comfortable ride. The braking system features a single 315 mm disc in the front, paired with a rear drum brake for reliable stopping power. With a low seat height of just 711 mm, the Magna is accessible to a wide range of riders, ensuring that every enthusiast can experience the joy of riding this classic cruiser. **

Pros

  • Powerful V4 Engine: Offers a thrilling ride with excellent acceleration and smooth performance.
  • Comfortable Riding Position: The low seat height and well-designed suspension make it accessible and easy to handle for various riders.
  • Stylish Design: The unique custom-cruiser styling and vibrant blue color options ensure it turns heads wherever it goes.

Cons

  • Discontinued Model: As a 2003 model, finding parts and service may be challenging due to its discontinuation.
  • Weight: At 244 kg (538 lbs) when fully fueled, it may feel heavy for some riders, particularly when maneuvering at low speeds.
  • Drum Rear Brake: The rear drum brake may not provide the same level of stopping power as modern disc brakes, potentially affecting performance in emergency situations.

Technical details

Source specification data

Make
Honda
Model
VF 750 Magna
Price
S
$ 7499.
Prices
depend on country, taxes, accessories, etc.
Category
Custom-cruiser
Comments
Discontinued
Color Options
Blue
Power
78.20 HP (57.1 kW)) @ 9000 RPM
Clutch
Wet, Multiplate Clutch
Torque
65.00 Nm (6.6 kgf-m or 47.9 ft.lbs) @ 7250 RPM
Gearbox
5-speed
Ignition
Digital
Fuel System
Carburettor. 4 - 34 mm CV Keihin
Bore X Stroke
70.0 x 48.6 mm (2.8 x 1.9 inches)
Compression
10.8:1
Displacement
748.00 ccm (45.64 cubic inches)
Cooling System
Liquid
Engine Details
V4, four-stroke
Exhaust System
4 into 4 Chrome
One Quarter Mile
12.760 seconds
Fuel Consumption
6.19 litres/100 km (16.2 km/l or 38.00 mpg)
Greenhouse Gases
O2
g/km. (
O2
-
Carbon
dioxide emission)
Lubrication System
Wet sump
Valves Per Cylinder
4
Transmission Type Final Drive
Chain
Dry Weight
229.1 kg (505.0 pounds)
Seat Height
711 mm (28.0 inches) If adjustable, lowest setting.
Fuel Capacity
13.62 litres (3.60 gallons)
Overall Width
800 mm (31.5 inches)
Overall Length
2,362 mm (93.0 inches)
Power Weight Ratio
0.3414 HP/kg
Reserve Fuel Capacity
3.02 litres (0.80 gallons)
Weight Incl Oil Gas Etc
244.0 kg (538.0 pounds)
Rake
32.0°
Trail
132 mm (5.2 inches)
Rear Tyre
150/80-17
Front Tyre
120/80-17
Rear Brakes
Expanding
brake (drum brake).
Single
,
Leading
-
Front Brakes
Single disc. 2-piston caliper
Rear Suspension
Dual shocks
Front Suspension
Cartridge fork
Rear Wheel Travel
99 mm (3.9 inches)
Front Wheel Travel
41 mm (1.6 inches)
Front Brakes Diameter
315 mm (12.4 inches)

Available colors

Blue
