Horwin EK DS
2024Scooter

Horwin EK DS

Key specifications

Power
5 HP
Weight
95 kg
Fuel type
electric
Transmission
1-speed
Seat height
31 mm
Front brakes
Single disc. Combined braking system (CBS)
Rear brakes
Single disc

Overview

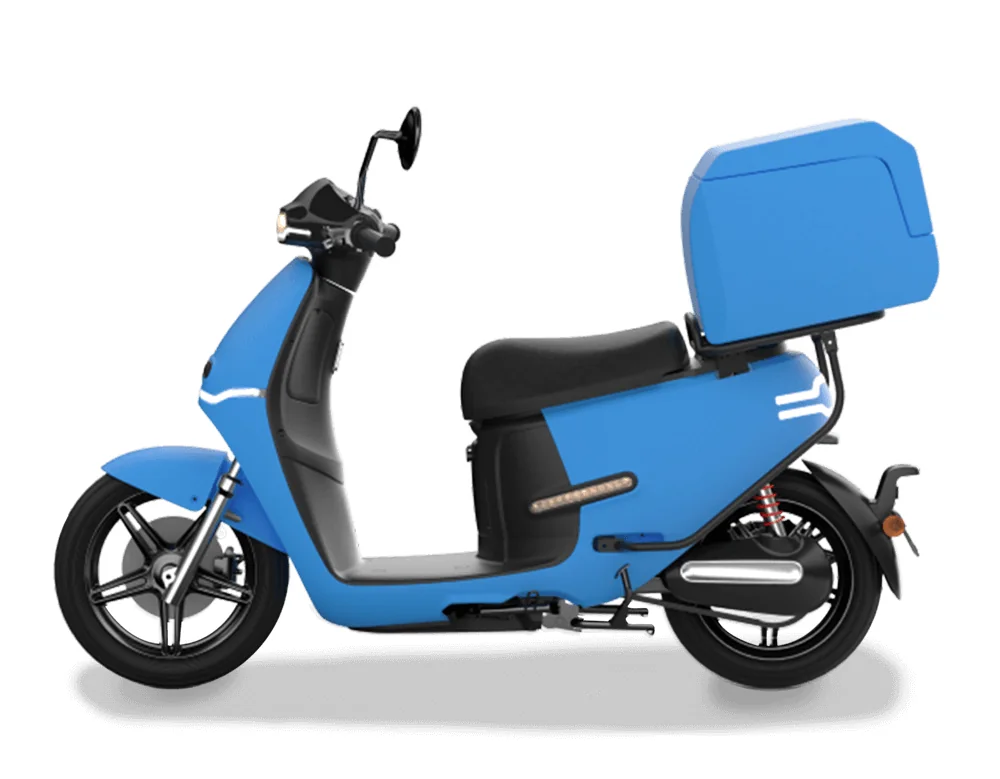

Introducing the 2024 Horwin EK DS, a sleek and modern electric scooter that redefines urban mobility. Positioned as a stylish yet practical solution for city dwellers and commuters, the EK DS combines cutting-edge technology with an eco-friendly design, making it a remarkable addition to the growing electric scooter market. With its eye-catching aesthetics available in bold colors like Black, White, Red, and Silver Grey, the EK DS is not just a mode of transport; it’s a statement on two wheels. At the heart of the Horwin EK DS lies a potent DC motor capable of delivering a peak power of 6.2 kW, translating to a zippy 4.7 HP that ensures spirited acceleration. With a top speed of 95 km/h (59 mph), this scooter is well-equipped for navigating busy streets and open roads alike. The 1-speed gearbox provides seamless power delivery, making it easy for riders to focus on the thrill of the ride without the complexities of shifting gears. The lightweight frame, tipping the scales at just 95 kg (209.4 pounds), enhances maneuverability and responsiveness, allowing riders to effortlessly weave through traffic or tackle tight corners with confidence. Beyond performance, the Horwin EK DS is packed with features designed for comfort and safety. Its underbone frame is complemented by a robust suspension system that includes twin hydraulic shock absorbers both at the front and rear, offering a smooth ride over various terrains. The combined braking system (CBS) ensures optimal stopping power with its single disc brakes, providing peace of mind in urban environments. Additional conveniences like electric starting make this scooter user-friendly, while the thoughtfully designed seat height of 780 mm (30.7 inches) accommodates a wide range of riders, ensuring a comfortable riding position. **

Pros

  • Eco-Friendly Performance: With zero emissions and a powerful electric motor, the EK DS is a sustainable choice for the environmentally conscious rider.
  • Lightweight and Agile: Weighing only 95 kg, it offers excellent maneuverability, making it ideal for urban commuting.
  • Stylish Design: Available in multiple color options, the EK DS stands out with its modern aesthetics, appealing to riders who prioritize style.

Cons

  • Limited Range: As an electric scooter, range may be a consideration for longer journeys or commutes, depending on battery capacity (not specified).
  • Single-Speed Gearbox: While simplicity can be an advantage, some riders may miss the versatility of a multi-speed transmission.
  • Ground Clearance: With a ground clearance of only 125 mm (4.9 inches), it may not be suitable for rougher terrains or pothole-riddled roads.

Technical details

Source specification data

Make
Horwin
Model
EK DS
Category
Scooter
Light
LED headlight
Starter
Electric
Instruments
TFT Colour Display
Color Options
Black, White, Red, Silver Grey
Carrying Capacity
Rear rack
Modifications Compared To Previous Model
Scooter
also called
S
.
Li
-ion battery 72
V
36
Ah
.
Range
161 km with two batteries.
Charging
time 4.5 hours.
Power
4.7 HP (3.4 kW))
Gearbox
1-speed
Top Speed
95.0 km/h (59.0 mph)
Engine Type
Electric
Engine Details
DC motor, peak 6.2 kW
Dry Weight
95.0 kg (209.4 pounds)
Seat Height
780 mm (30.7 inches) If adjustable, lowest setting.
Overall Width
690 mm (27.2 inches)
Overall Height
1130 mm (44.5 inches)
Overall Length
1900 mm (74.8 inches)
Ground Clearance
125 mm (4.9 inches)
Power Weight Ratio
0.0494 HP/kg
Wheels
Alloy wheels
Rear Tyre
110/70-13
Frame Type
Underbone
Front Tyre
100/80-14
Rear Brakes
Single disc
Front Brakes
Single
disc.
Combined
braking system (
S
)
Rear Suspension
Twin hydraulic shock absorbers
Front Suspension
Twin Hydraulic Shock Absorbers

Available colors

BlackWhiteRedSilver Grey
