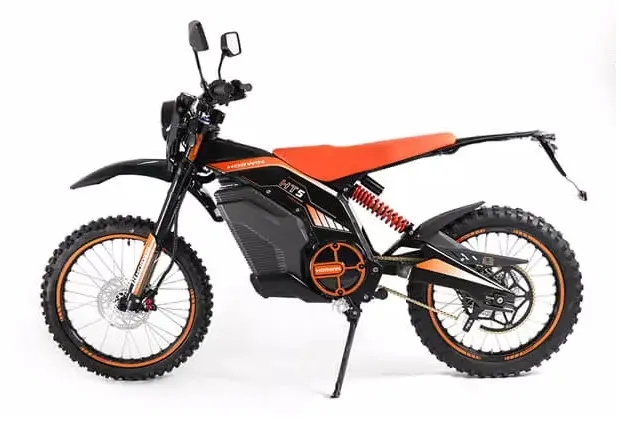

Horwin HT5 Offroad
2023Off-road

Horwin HT5 Offroad

Key specifications

Power
8 HP
Weight
80 kg
Fuel type
electric
Transmission
1-speed
Front brakes
Single disc
Rear brakes
Single disc

Overview

Introducing the 2023 Horwin HT5 Offroad, a dynamic contender in the enduro-offroad category, designed to captivate both seasoned riders and newcomers alike. With its stylish design and robust engineering, the HT5 Offroad expertly combines modern aesthetics with rugged functionality. Positioned as an affordable yet capable machine for trail enthusiasts, this motorcycle promises to deliver exhilarating performance on and off the beaten path. Whether you’re navigating through rocky terrains or cruising along forest trails, the Horwin HT5 is crafted for adventure seekers who crave freedom and exploration. At the heart of the HT5 Offroad lies a spirited 8.3 horsepower (6.1 kW) engine, which propels the bike to an impressive top speed of 85 km/h (52.8 mph). This single-speed gearbox, paired with a reliable chain final drive, ensures seamless power delivery while allowing riders to focus on the thrill of the ride. With a lightweight frame made of aluminum magnesium alloy, tipping the scales at just 80 kg (176.4 pounds), the HT5 offers an exceptional power-to-weight ratio of 0.1039 HP/kg. This weight advantage, combined with 200 mm (7.9 inches) of front travel and a responsive monoshock rear suspension, provides remarkable agility and control, making even the most challenging trails feel manageable. The 2023 HT5 Offroad is not just about raw power; it also brings a host of features that enhance the riding experience. With electric starting, riders can enjoy effortless ignition at the push of a button, while the single disc brakes on both the front and rear ensure reliable stopping power when tackling descents or sudden obstacles. The bike's ground clearance of 265 mm (10.4 inches) allows for confident navigation over rough terrain, while its sleek dimensions (1950 mm in length, 785 mm in width, and 1070 mm in height) make it easy to maneuver through tight spots. Available in striking black and red color options, the HT5 Offroad is as visually appealing as it is functional. **

Pros

  • Lightweight design enhances agility and handling.
  • Impressive ground clearance for tackling rugged terrain.
  • Electric start provides convenience and ease of use.

Cons

  • Limited power output may not satisfy experienced riders seeking high-performance.
  • Single-speed gearbox limits versatility compared to multi-gear options.
  • May require more frequent maintenance for offroad conditions compared to other models.

Technical details

Source specification data

Make
Horwin
Model
HT5 Offroad
Category
Enduro-offroad
Starter
Electric
Color Options
Black/red
Modifications Compared To Previous Model
Range
100 km. 72
V
30
Ah
battery.
Chargingtime
2 hours
Power
8.3 HP (6.1 kW))
Gearbox
1-speed
Top Speed
85.0 km/h (52.8 mph)
Engine Type
Electric
Transmission Type Final Drive
Chain (final drive)
Dry Weight
80.0 kg (176.4 pounds)
Overall Width
785 mm (30.9 inches)
Overall Height
1070 mm (42.1 inches)
Overall Length
1950 mm (76.8 inches)
Ground Clearance
265 mm (10.4 inches)
Power Weight Ratio
0.1039 HP/kg
Rear Tyre
3.00-18
Frame Type
Aluminum magnesium alloy
Front Tyre
70/100-19
Rear Brakes
Single disc
Front Brakes
Single disc
Rear Suspension
Monoshock
Front Suspension
Telescopic fork
Front Wheel Travel
200 mm (7.9 inches)

Available colors

Black/red
