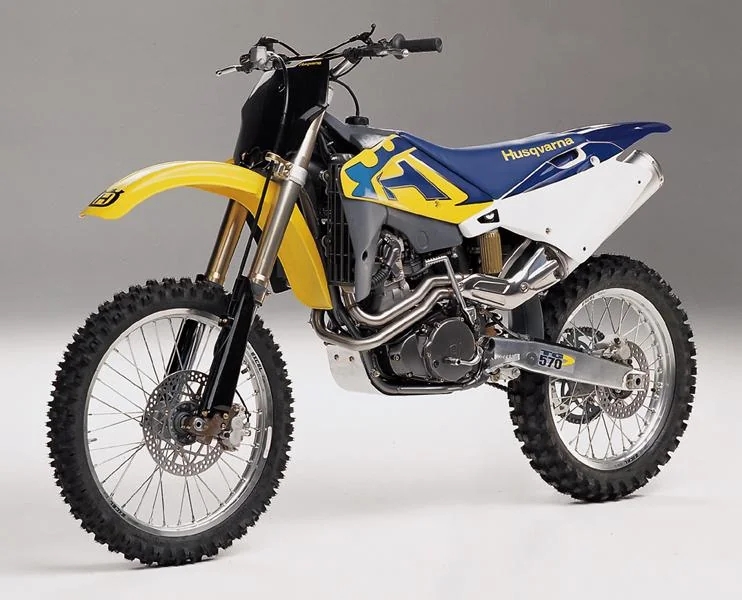

Husqvarna TE 570
2004Off-road

Husqvarna TE 570

Key specifications

Engine
576 cc
Fuel type
petrol
Fuel capacity
2.4 L
Transmission
6-speed
Seat height
39 mm
Front brakes
Single disc
Rear brakes
Single disc

Overview

Introducing the 2004 Husqvarna TE 570, a robust and spirited contender in the realm of enduro-offroad motorcycles. Renowned for its exceptional versatility, the TE 570 is engineered to tackle both rugged terrains and urban environments with ease. This bike represents Husqvarna’s legacy of combining cutting-edge technology with a passion for adventure, making it a popular choice among seasoned riders and off-road enthusiasts alike. With its striking color options of red, yellow, and blue, this motorcycle not only delivers performance but also commands attention wherever it roams. At the heart of the TE 570 lies a potent 576.28 cc single-cylinder, four-stroke engine that churns out impressive torque and power. With a compression ratio of 10.0:1 and a bore/stroke measurement of 98.0 x 76.4 mm, this engine is designed for spirited acceleration and precise throttle response. The 6-speed gearbox allows for smooth transitions through gears, enabling riders to harness the full potential of the engine across various terrains. Coupled with liquid cooling, the TE 570 maintains optimal performance even in the most demanding conditions, ensuring that you can push your limits without worrying about overheating. The TE 570 is equipped with an advanced chassis that complements its powerful engine. The steel single-tube cradle frame, paired with a lightweight aluminum rear frame, provides the necessary rigidity and stability for tackling challenging trails. The Marzocchi upside-down telescopic forks offer 300 mm of front travel, while the Sachs progressive soft-dump rear suspension provides an impressive 320 mm of rear travel, ensuring a smooth ride over bumps and obstacles. With a ground clearance of 340 mm and a seat height of 980 mm, this bike is designed to give riders confidence and control, whether navigating rocky paths or cruising through urban streets. **

Pros

  • Powerful Engine Performance: The TE 570's single-cylinder engine delivers impressive torque and acceleration, ideal for tackling both off-road trails and on-road rides.
  • Exceptional Suspension: With generous suspension travel front and rear, this motorcycle offers superior handling and comfort over uneven terrain.
  • Lightweight Design: Weighing in at just 118.9 kg (262.1 pounds), the TE 570 is nimble and easy to maneuver, enhancing rider confidence in challenging situations.

Cons

  • Seat Height: At 980 mm (38.6 inches), the seat height may be too tall for shorter riders, potentially affecting comfort and control.
  • Limited Fuel Capacity: With a fuel tank capacity of 9 liters (2.38 gallons), longer rides may require frequent refueling, which could be inconvenient on extended adventures.
  • Basic Instrumentation: The instrumentation may lack some advanced features found in modern bikes, potentially limiting the rider's access to real-time data while on the move.

Technical details

Source specification data

Make
Husqvarna
Model
TE 570
Category
Enduro-offroad
Color Options
Red/yellow/blue
Gearbox
6-speed
Bore X Stroke
98.0 x 76.4 mm (3.9 x 3.0 inches)
Compression
10.0:1
Displacement
576.28 ccm (35.16 cubic inches)
Cooling System
Liquid
Engine Details
Single cylinder, four-stroke
Valves Per Cylinder
4
Transmission Type Final Drive
Chain
Seat Height
980 mm (38.6 inches) If adjustable, lowest setting.
Fuel Capacity
9.00 litres (2.38 gallons)
Overall Width
1,260 mm (49.6 inches)
Overall Height
810 mm (31.9 inches)
Overall Length
2,170 mm (85.4 inches)
Ground Clearance
340 mm (13.4 inches)
Weight Incl Oil Gas Etc
118.9 kg (262.1 pounds)
Rear Tyre
140/80-18
Frame Type
Steel
singel tube cradle.
Rear
frame in light alloy.
Front Tyre
90/90-18
Rear Brakes
Single disc
Front Brakes
Single disc
Rear Suspension
Sachs progressive soft-dump with single hydraulic
Front Suspension
Marzocchi upside-down telescopic hydraulic adjustable fork
Rear Wheel Travel
320 mm (12.6 inches)
Front Wheel Travel
300 mm (11.8 inches)
Rear Brakes Diameter
220 mm (8.7 inches)
Front Brakes Diameter
260 mm (10.2 inches)

Available colors

Red/yellow/blue
