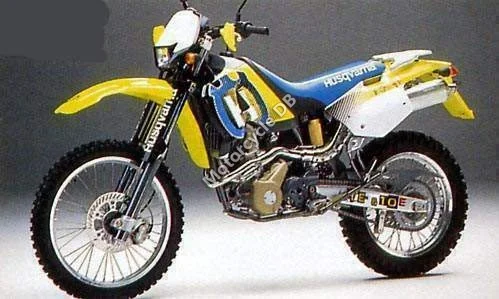

Husqvarna TE 610 e
2005Off-road

Husqvarna TE 610 e

Key specifications

Engine
577 cc
Fuel type
petrol
Fuel capacity
2.4 L
Transmission
6-speed
Seat height
35 mm
Front brakes
Single disc
Rear brakes
Single disc

Overview

Introducing the 2005 Husqvarna TE 610 e, a formidable contender in the enduro-offroad motorcycle category that captures the spirit of adventure and rugged terrain. This bike is tailored for riders who crave the thrill of exploring uncharted trails while demanding high performance and reliability from their machine. With its robust design and advanced engineering, the TE 610 e stands out as a versatile choice for both seasoned off-road veterans and enthusiastic newcomers looking to conquer the wild. At the heart of the Husqvarna TE 610 e lies a potent 577 cc single-cylinder, four-stroke engine, meticulously crafted to deliver exhilarating performance. With a compression ratio of 12.5:1 and a well-calibrated Dell’Orto PHM 40 mm carburettor, this engine produces an impressive balance of power and torque, allowing riders to tackle steep inclines and rugged landscapes with ease. The 6-speed gearbox ensures smooth transitions across varying terrains, while the liquid cooling system maintains optimal engine temperature during the most demanding rides. This motorcycle's lightweight design—clocking in at just 146 kg (321.9 lbs)—further enhances its agility, making it a joy to maneuver in tight spots and over obstacles. The TE 610 e is equipped with key features that elevate its performance and rider experience. The single tube cradle frame, complemented by a lightweight rear frame crafted from alloy, provides excellent stability and durability. The advanced upside-down telescopic hydraulic fork offers 300 mm of front travel, while the Sachs progressive ‘soft damp’ single shock in the rear delivers 320 mm of travel—both ensuring a plush ride over rough terrain. Safety is also a priority, with powerful braking systems including a 260 mm front disc and a 220 mm rear disc, providing reliable stopping power when it counts. Plus, the convenience of an electric starter means you can focus more on your adventure and less on the hassle of kick-starting. **

Pros

  • Powerful Engine Performance: The 577 cc engine offers excellent torque and responsiveness, perfect for both trail riding and challenging off-road conditions.
  • Lightweight and Agile: Weighing just 146 kg, the TE 610 e is easy to handle and maneuver, making it ideal for technical terrains.
  • Advanced Suspension System: With impressive front and rear travel, the suspension ensures a smooth and comfortable ride over bumps and obstacles.

Cons

  • Seat Height: At 890 mm, the seat height may be challenging for shorter riders, making it less accessible for some.
  • Fuel Capacity: The 9.10-litre tank may require more frequent refueling during extended rides, limiting long-distance capabilities.
  • Limited Color Options: The available yellow and blue color scheme may not appeal to all riders looking for more customization options.

Technical details

Source specification data

Make
Husqvarna
Model
TE 610 e
Category
Enduro-offroad
Starter
Electric
Color Options
Yellow/blue
Clutch
Wet, multiplate type, hydraulic
Gearbox
6-speed
Ignition
Analogic
Fuel System
Carburettor. Dell´Ortho PHM 40 mm
Bore X Stroke
98.0 x 76.5 mm (3.9 x 3.0 inches)
Compression
12.5:1
Displacement
577.00 ccm (35.21 cubic inches)
Cooling System
Liquid
Engine Details
Single cylinder, four-stroke
Lubrication System
Dry sump with two oil pump rotor and cartridge filter
Valves Per Cylinder
4
Transmission Type Final Drive
Chain
Seat Height
890 mm (35.0 inches) If adjustable, lowest setting.
Fuel Capacity
9.10 litres (2.40 gallons)
Overall Width
820 mm (32.3 inches)
Overall Height
1,290 mm (50.8 inches)
Overall Length
2,215 mm (87.2 inches)
Ground Clearance
340 mm (13.4 inches)
Weight Incl Oil Gas Etc
146.0 kg (321.9 pounds)
Rear Tyre
140/80-18
Frame Type
Single tube cradl, rear frame in light alloy
Front Tyre
90/90-18
Rear Brakes
Single disc
Front Brakes
Single disc
Rear Suspension
Sachs progressive ´soft damp´, single shock
Front Suspension
Upside
-
Down
telescopic hydraulic fork with advanced axle
Rear Wheel Travel
320 mm (12.6 inches)
Front Wheel Travel
300 mm (11.8 inches)
Rear Brakes Diameter
220 mm (8.7 inches)
Front Brakes Diameter
260 mm (10.2 inches)

Available colors

Yellow/blue
