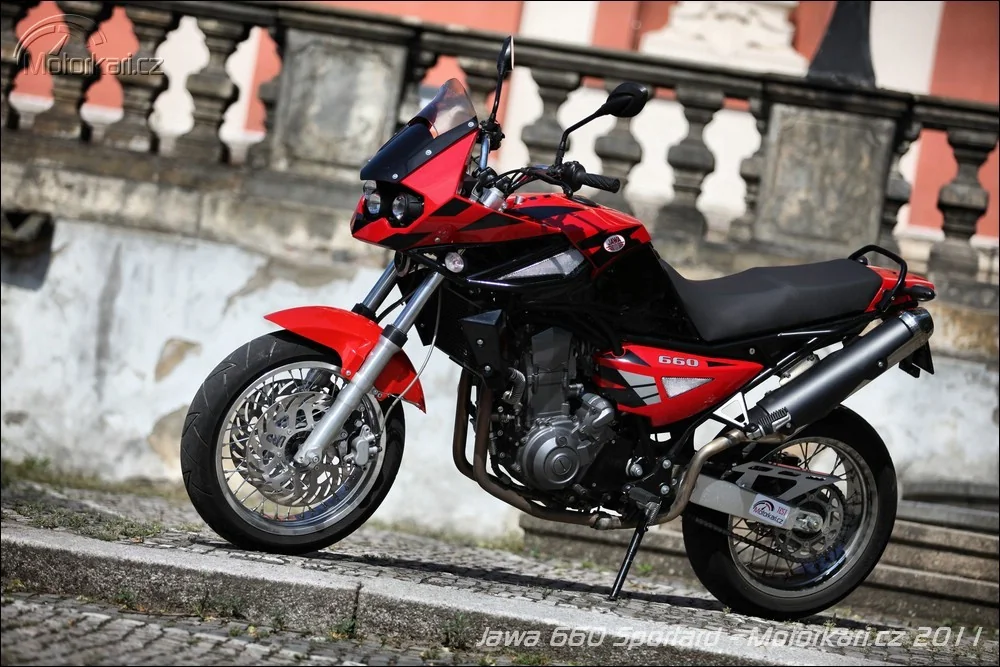

Jawa-CZ 660 Sportard
2017Super Moto

Jawa-CZ 660 Sportard

Key specifications

Engine
660 cc
Power
48 HP
Torque
58 Nm
Weight
195 kg
Fuel type
petrol
Fuel capacity
4.5 L
Transmission
5-speed
Seat height
34 mm
Front brakes
Double disc
Rear brakes
Single disc

Overview

Introducing the 2017 Jawa-CZ 660 Sportard, a dynamic super motard that masterfully blends classic aesthetics with modern performance. This motorcycle stands as a testament to Jawa's rich heritage while appealing to a new generation of riders seeking versatility and excitement. With its striking color options of red/black and yellow/black, the 660 Sportard commands attention on and off the road. Positioned in the super motard category, it’s designed for those who crave agility and spirited rides through urban landscapes and winding back roads alike. At the heart of the 660 Sportard lies a robust 660cc single-cylinder, four-stroke engine that delivers 48.28 horsepower at 6000 RPM and an impressive torque of 57.50 Nm at 5000 RPM. This potent combination ensures exhilarating acceleration and a top speed of 165 km/h (102.5 mph), making it a thrilling companion for both spirited outings and daily commutes. The bike's liquid cooling system and 5-speed gearbox enhance the riding experience, ensuring smooth and efficient power delivery, while its 10.0:1 compression ratio allows for a responsive throttle that keeps riders engaged in the moment. The 660 Sportard is not just about raw power; it boasts a thoughtfully engineered chassis and suspension system that elevate its handling characteristics. The tubular frame provides a solid foundation, complemented by telescopic front forks and Bitubo rear shocks that offer 150 mm and 170 mm of travel, respectively. This setup ensures excellent stability and comfort over varying terrains. The braking system features double discs at the front (305 mm) and a single disc at the rear (280 mm), delivering reliable stopping power that inspires confidence. With a weight of 195 kg (429.9 lbs) and a power-to-weight ratio of 0.2476 HP/kg, the 660 Sportard strikes a balance between agility and stability, making it an enjoyable ride for both seasoned riders and newcomers. **

Pros

  • Agile Handling: The lightweight chassis and well-tuned suspension make for nimble maneuverability, ideal for city riding and twisty roads.
  • Strong Performance: The engine delivers a satisfying mix of power and torque, ensuring spirited rides without compromising everyday usability.
  • Distinctive Design: With its eye-catching color schemes and classic styling, the 660 Sportard stands out in a sea of modern motorcycles.

Cons

  • Limited Fuel Capacity: At 17 litres (4.49 gallons), the fuel tank may require more frequent stops on long rides.
  • Single Cylinder Dynamics: While the single-cylinder engine offers a unique character, it may lack the refinement of multi-cylinder counterparts at higher RPMs.
  • Seat Height: With a seat height of 860 mm (33.9 inches), it may not be the most accessible option for shorter riders, even at the lowest setting.

Technical details

Source specification data

Make
Jawa-CZ
Model
660 Sportard
Category
Super motard
Starter
Electric
Color Options
Red/black, yellow/black
Carrying Capacity
Top box, saddle bags
Power
48.28 HP (35.2 kW)) @ 6000 RPM
Torque
57.50 Nm (5.9 kgf-m or 42.4 ft.lbs) @ 5000 RPM
Gearbox
5-speed
Top Speed
165.0 km/h (102.5 mph)
Fuel System
Carburettor. Bing
Bore X Stroke
100.0 x 84.0 mm (3.9 x 3.3 inches)
Compression
10.0:1
Displacement
660.00 ccm (40.27 cubic inches)
Cooling System
Liquid
Engine Details
Single cylinder, four-stroke
Valves Per Cylinder
4
Transmission Type Final Drive
Chain
Dry Weight
195.0 kg (429.9 pounds)
Seat Height
860 mm (33.9 inches) If adjustable, lowest setting.
Fuel Capacity
17.00 litres (4.49 gallons)
Power Weight Ratio
0.2476 HP/kg
Reserve Fuel Capacity
1.50 litres (0.40 gallons)
Rear Tyre
140/80-17
Frame Type
Tubular
Front Tyre
110/90-17
Rear Brakes
Single disc
Front Brakes
Double disc
Rear Suspension
Bitubo shocks
Front Suspension
Telescopic forks
Rear Wheel Travel
170 mm (6.7 inches)
Front Wheel Travel
150 mm (5.9 inches)
Rear Brakes Diameter
280 mm (11.0 inches)
Front Brakes Diameter
305 mm (12.0 inches)

Available colors

Red/blackyellow/black
