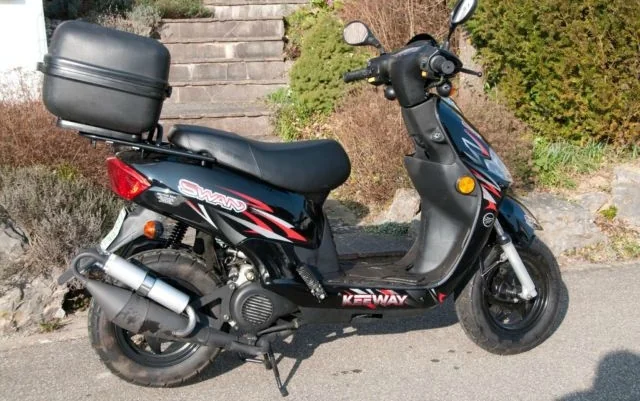

Keeway Swan 50
2014Scooter

Keeway Swan 50

Key specifications

Engine
49 cc
Power
4 HP
Torque
4 Nm
Weight
75 kg
Fuel type
petrol
Fuel capacity
1.0 L
Transmission
Automatic
Seat height
30 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)

Overview

Introducing the 2014 Keeway Swan 50, a delightful entry in the scooter category that perfectly balances style, practicality, and ease of use. Designed for urban commuting and casual rides, this scooter caters to both novice riders and those seeking an efficient means of transport. With its compact design and lightweight structure, the Swan 50 is ideal for navigating through city traffic while providing a comfortable ride. Keeway, the American and European brand name of Qianjiang from China, has crafted a machine that emphasizes reliability without compromising trendy aesthetics, making it an appealing choice for younger riders and those new to the two-wheeled lifestyle. At the heart of the Swan 50 is a peppy 49.3 cc single-cylinder two-stroke engine that delivers a spirited 3.75 horsepower at 6750 RPM. This setup, paired with an automatic gearbox and belt final drive, ensures smooth and effortless acceleration, perfect for quick getaways at stoplights. With a torque rating of 4.20 Nm at 5750 RPM, the Swan 50 responds well to everyday riding demands, whether it's darting through traffic or cruising along park avenues. The air-cooled engine is not only efficient but also easy to maintain, making it a practical choice for those who want to spend more time riding and less time in the garage. The 2014 Keeway Swan 50 stands out with its user-friendly features and thoughtful design. It boasts a stylish multi-colored exterior that appeals to a wide range of tastes, while the comfortable seat height of 765 mm (30.1 inches) allows for easy mounting and dismounting. The scooter is equipped with both electric and kick starters for added convenience, ensuring that you're always ready to ride. The front telescopic forks and rear telescopic coil spring suspension provide a smooth ride, absorbing bumps along the way. Safety is prioritized with a reliable braking system that includes a single disc brake in the front and a drum brake in the rear, both measuring 110 mm, ensuring you come to a stop confidently. **

Pros

  • Lightweight & Maneuverable: At just 75 kg (165.3 lbs), the Swan 50 is easy to handle and perfect for urban environments.
  • Fuel Efficient: With a modest fuel capacity of 3.7 liters and a power-to-weight ratio of 0.0500 HP/kg, it’s economical for daily commutes.
  • User-Friendly Features: The combination of electric and kick starters, along with an automatic clutch, makes it accessible for riders of all experience levels.

Cons

  • Limited Power for Highway Use: With only 3.75 HP, it may struggle on faster roads and isn’t suited for long-distance highway travel.
  • Suspension Travel: The rear suspension travel of 45 mm may not provide enough comfort on rougher terrains or pothole-ridden roads.
  • Small Fuel Capacity: While it’s efficient, the small 3.7-liter tank means more frequent stops at the pump compared to larger scooters.

Technical details

Source specification data

Make
Keeway
Model
Swan 50
Category
Scooter
Starter
Electric & kick
Comments
Keeway
is the
American
and
European
brand name of
Qianjiang
,
China
.
Color Options
Mulitcolored
Power
3.75 HP (2.7 kW)) @ 6750 RPM
Clutch
Automatic
Torque
4.20 Nm (0.4 kgf-m or 3.1 ft.lbs) @ 5750 RPM
Gearbox
Automatic
Ignition
CDI
Fuel System
Carburettor
Bore X Stroke
40.0 x 39.2 mm (1.6 x 1.5 inches)
Compression
6.9:1
Displacement
49.30 ccm (3.01 cubic inches)
Cooling System
Air
Engine Details
Single cylinder, two-stroke
Lubrication System
Separate lubrication
Transmission Type Final Drive
Belt
Dry Weight
75.0 kg (165.3 pounds)
Seat Height
765 mm (30.1 inches) If adjustable, lowest setting.
Fuel Capacity
3.70 litres (0.98 gallons)
Overall Width
600 mm (23.6 inches)
Overall Height
1,090 mm (42.9 inches)
Overall Length
1,680 mm (66.1 inches)
Ground Clearance
105 mm (4.1 inches)
Power Weight Ratio
0.0500 HP/kg
Rear Tyre
3.50-10
Front Tyre
3.50-10
Rear Brakes
Expanding brake (drum brake)
Front Brakes
Single disc
Rear Suspension
Telescopic coil spring oil damped
Front Suspension
Telescopic forks
Rear Wheel Travel
45 mm (1.8 inches)
Front Wheel Travel
70 mm (2.8 inches)
Rear Brakes Diameter
110 mm (4.3 inches)
Front Brakes Diameter
110 mm (4.3 inches)

Available colors

Mulitcolored
