Keeway TX 125EN
2015Off-road

Keeway TX 125EN

Key specifications

Engine
125 cc
Power
11 HP
Torque
9 Nm
Weight
135 kg
Fuel type
petrol
Fuel capacity
2.8 L
Transmission
5-speed
Seat height
33 mm
Front brakes
Single disc
Rear brakes
Single disc

Overview

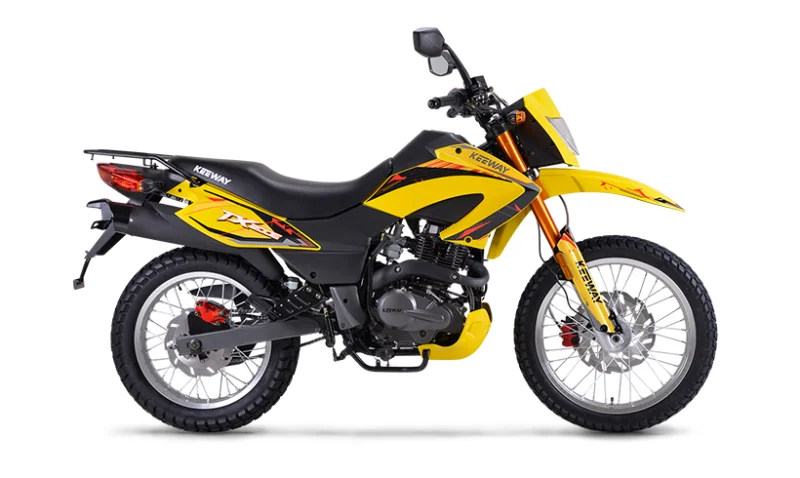

Introducing the 2015 Keeway TX 125EN, a spirited machine designed for the adventurous soul in search of a reliable enduro-offroad motorcycle. As an offering from Keeway, the American and European nameplate for Qianjiang, this bike is engineered for both new riders and seasoned enthusiasts who crave the thrill of tackling rugged terrains without sacrificing the practicality of daily commuting. With its modern design, robust build, and approachable performance metrics, the TX 125EN positions itself as an enticing entry point into the world of off-road biking. At the heart of the TX 125EN lies a single-cylinder, four-stroke engine with a displacement of 124.50 ccm. This powerplant produces a spirited 11 horsepower at a lively 9,000 RPM, coupled with 9.40 Nm of torque, ensuring that the bike has enough get-up-and-go for both city streets and dirt trails. The air-cooled engine is paired with a five-speed gearbox that delivers smooth shifts, making it easy to navigate through various riding conditions. Riders can expect a nimble and responsive feel, thanks to its lightweight frame, which weighs in at just 135 kg (297.6 lbs), and a commendable power-to-weight ratio of 0.0815 HP/kg. Whether you're cruising through urban landscapes or carving through the countryside, the TX 125EN offers a delightful blend of power and agility. The 2015 Keeway TX 125EN is packed with features that enhance both comfort and performance. Its sturdy arch bar truck frame supports a telescopic front suspension with 180 mm of travel, providing excellent shock absorption for uneven terrains, while the rear swing arm suspension offers an additional 45 mm of travel for a smooth ride. Stopping power is assured with its single disc brakes on both the front and rear wheels, ensuring confident and responsive braking when you need it most. With a seat height of 825 mm and a ground clearance of 225 mm, the bike is designed for versatility, accommodating a range of rider heights and ensuring a commanding view of the road ahead. The electric starter adds convenience, while the range of color options—gray, white, red, and gold—allows riders to personalize their machine. **

Pros

  • Lightweight and Nimble: With a weight of just 135 kg, the TX 125EN offers an agile riding experience, making it easy to handle on and off-road.
  • Versatile Performance: The combination of a responsive engine and solid suspension system allows for both urban commuting and off-road adventures.
  • User-Friendly Features: The electric start and approachable seat height provide added convenience and comfort for riders of various skill levels.

Cons

  • Limited Power Output: With only 11 HP, the bike may struggle to keep up with faster traffic on highways, making it more suited for urban and rural settings.
  • Basic Suspension Travel: While adequate for casual off-roading, the rear suspension travel of 45 mm may not provide the performance needed for more aggressive trail riding.
  • Carburetted Engine: The carburettor fuel system, while simple, may require more frequent tuning compared to modern fuel-injected engines, especially in changing weather conditions.

Technical details

Source specification data

Make
Keeway
Model
TX 125EN
Category
Enduro-offroad
Starter
Electric
Comments
Keeway
is the
American
and
European
brand name of
Qianjiang
,
China
.
Color Options
Gray/white/red/gold
Power
11.00 HP (8.0 kW)) @ 9000 RPM
Clutch
Wet, multiple-plate
Torque
9.40 Nm (1.0 kgf-m or 6.9 ft.lbs) @ 7500 RPM
Gearbox
5-speed
Ignition
TLI
Fuel System
Carburettor
Bore X Stroke
57.0 x 48.8 mm (2.2 x 1.9 inches)
Compression
7.0:1
Displacement
124.50 ccm (7.60 cubic inches)
Cooling System
Air
Engine Details
Single cylinder, four-stroke
Lubrication System
Pressure splash lubrication
Valves Per Cylinder
2
Transmission Type Final Drive
Chain
Dry Weight
135.0 kg (297.6 pounds)
Seat Height
825 mm (32.5 inches) If adjustable, lowest setting.
Fuel Capacity
10.50 litres (2.77 gallons)
Overall Width
830 mm (32.7 inches)
Overall Height
1,140 mm (44.9 inches)
Overall Length
2,090 mm (82.3 inches)
Ground Clearance
225 mm (8.9 inches)
Power Weight Ratio
0.0815 HP/kg
Wheels
Aluminium
Rear Tyre
110/90-17
Frame Type
Arch bar truck.
Front Tyre
90/90-19
Rear Brakes
Single disc
Front Brakes
Single disc
Rear Suspension
Swing Arm
Front Suspension
Telescopic forks
Rear Wheel Travel
45 mm (1.8 inches)
Front Wheel Travel
180 mm (7.1 inches)
Rear Brakes Diameter
240 mm (9.4 inches)
Front Brakes Diameter
280 mm (11.0 inches)

Available colors

Gray/white/red/gold
