Kollter ES1-X
Key specifications
Overview

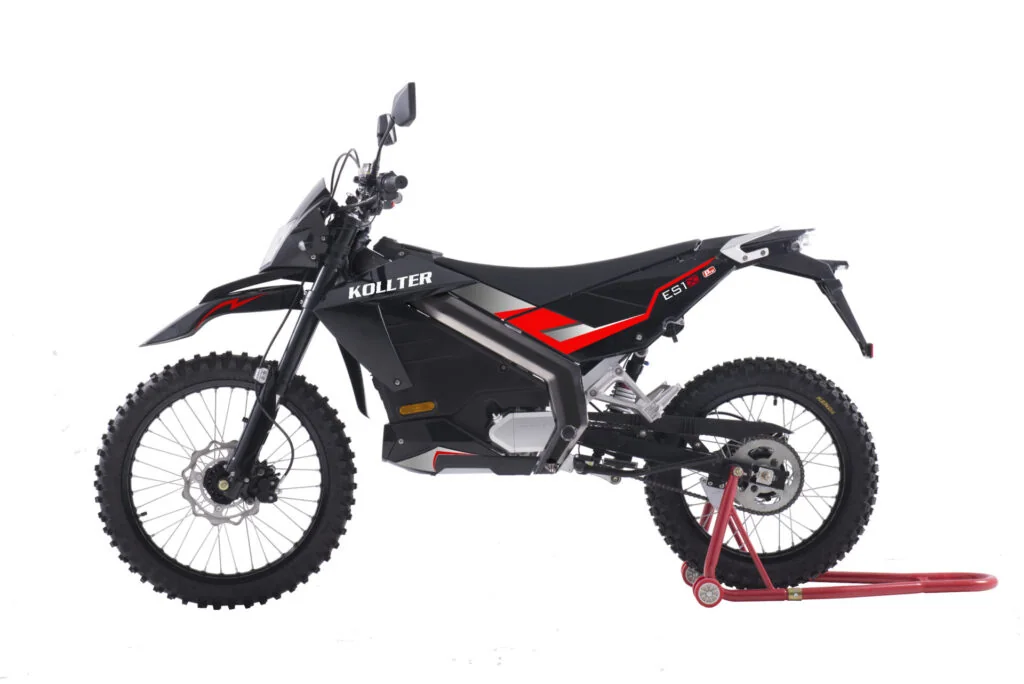

Introducing the 2021 Kollter ES1-X, a trailblazing entry in the world of electric enduro-offroad motorcycles. Designed for the adventurous spirit who craves the thrill of off-road exploration, the ES1-X is a perfect blend of innovative electric technology and rugged performance. With its striking color options of orange, black, and white, this machine not only commands attention on the trails but also represents a significant step towards sustainable riding. As the off-road segment increasingly embraces electric mobility, the ES1-X positions itself as a pioneer, allowing riders to conquer the wild without leaving a carbon footprint. At the heart of the Kollter ES1-X is a robust Permanent Magnet motor that delivers a peak power of 11 kW, translating to a respectable 6.7 HP and an impressive torque of 50 Nm at 5000 RPM. This electric powerhouse propels the bike to a top speed of 75 km/h (46.6 mph), making it ideal for navigating challenging terrains while maintaining a smooth and responsive ride. The air-cooled engine ensures reliable performance, while the chain final drive enhances the bike's durability on rugged paths. Riders will appreciate the nimble handling and lightweight construction, with the ES1-X weighing in at just 110 kg (242.5 pounds), allowing for agile maneuverability through tight trails and rocky obstacles. Equipped with advanced features and cutting-edge technology, the Kollter ES1-X is built for the modern adventurer. The adjustable 37mm inverted hydraulic front suspension and medium hydraulic rear shock absorber offer excellent stability and comfort, absorbing bumps and uneven surfaces with ease. The braking system, featuring a single disc with 2-piston calipers in the front and a rear disc setup, ensures responsive stopping power when tackling steep descents. Charging the 72V 25.6Ah lithium battery takes approximately six hours, providing riders with ample range for extended excursions. Whether you're a weekend warrior or a dedicated trail enthusiast, the Kollter ES1-X is designed to elevate your off-road experience. **
Pros
- Eco-friendly electric motor with impressive torque and power delivery.
- Lightweight design enhances agility and maneuverability on trails.
- Adjustable suspension system provides superior comfort and handling.
Cons
- Limited top speed of 75 km/h may not satisfy thrill-seekers looking for high-speed performance.
- Charging time of six hours could be a drawback for longer rides without suitable charging infrastructure.
- The seat height, while adjustable, might not accommodate all riders comfortably, particularly those with shorter inseams.
Technical details
Source specification data
- Make
- Kollter
- Model
- ES1-X
- Category
- Enduro-offroad
- Starter
- Electric
- Comments
- Charging
- time 6 hours. 72
- V
- 25.6
- Ah
- lithium battery.
- Color Options
- Orange/black/white
- Power
- 6.7 HP (4.9 kW))
- Torque
- 50.0 Nm (5.1 kgf-m or 36.9 ft.lbs) @ 5000 RPM
- Top Speed
- 75.0 km/h (46.6 mph)
- Engine Type
- Electric
- Cooling System
- Air
- Engine Details
- Permanent Magnet motor, peak power 11 kW
- Transmission Type Final Drive
- Chain (final drive)
- Dry Weight
- 110.0 kg (242.5 pounds)
- Seat Height
- 665 mm (26.2 inches) If adjustable, lowest setting.
- Overall Width
- 860 mm (33.9 inches)
- Overall Height
- 1150 mm (45.3 inches)
- Overall Length
- 2080 mm (81.9 inches)
- Ground Clearance
- 252 mm (9.9 inches)
- Power Weight Ratio
- 0.0610 HP/kg
- Rear Tyre
- 4.10-18
- Frame Type
- Plate tube welding
- Front Tyre
- 90/60-21
- Rear Brakes
- Single disc
- Front Brakes
- Single disc. 2-piston calipers
- Rear Suspension
- Medium hydraulic shock absorber
- Front Suspension
- 37mm inverted hydraulic shock absorber adjustable rebound damping
- Rear Brakes Diameter
- 210 mm (8.3 inches)
- Front Brakes Diameter
- 240 mm (9.4 inches)
