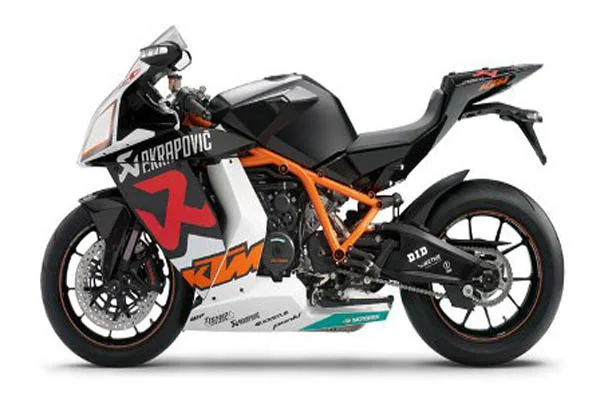

KTM 1190 RC8 R Akrapovic
Key specifications
Overview
Introducing the 2011 KTM 1190 RC8 R Akrapovic, a stunning embodiment of performance engineering and race-inspired aesthetics that firmly positions itself in the sport motorcycle category. As a limited edition model, this motorcycle was designed not just to turn heads but to dominate the track and the road alike. With its aggressive lines and unmistakable KTM color palette of black, orange, and white, the RC8 R stands out in a crowd, appealing to enthusiasts who require both form and function in their rides. This model is a testament to KTM's commitment to pushing the boundaries of motorcycle performance, making it a must-have for those who crave excitement and precision. At the heart of the 1190 RC8 R Akrapovic lies a formidable V2, four-stroke engine that boasts a displacement of 1195 cc. This powerhouse delivers an exhilarating 167.63 horsepower at an impressive 10,250 RPM, along with 123 Nm of torque at 8,000 RPM. The sophisticated fuel injection system and high compression ratio of 13.5:1 ensure that the engine not only delivers raw power but does so with remarkable efficiency. The 6-speed gearbox allows for smooth and responsive shifts, enhancing the bike's dynamic riding characteristics and allowing riders to unleash the full potential of their machine. Whether you're navigating tight corners or blasting down straightaways, the RC8 R offers a thrilling ride that’s sure to leave a lasting impression. The engineering prowess of the 1190 RC8 R extends beyond its engine. The motorcycle features a lightweight chromium-molybdenum trellis frame paired with an aluminum subframe, providing a perfect balance of rigidity and agility. With a rake of 23.3° and a trail of 97 mm, the handling is razor-sharp, giving riders confidence in high-speed maneuvers. The WP suspension system, with 140 mm of travel at both the front and rear, ensures that even the most challenging terrains are absorbed smoothly, allowing for maximum grip and control. The dual Brembo brake system, featuring a 320 mm front and 220 mm rear disc, guarantees that stopping power is equally impressive, enhancing safety and performance on the track. **
Pros
- Exceptional Power-to-Weight Ratio: With a power-to-weight ratio of 0.9210 HP/kg, the RC8 R delivers exhilarating acceleration and performance.
- Advanced Suspension Technology: The WP suspension setup offers excellent handling and comfort, perfect for both track days and spirited rides on the road.
- Striking Design: The limited edition color scheme and aggressive styling make this motorcycle a visual standout.
Cons
- Seat Height: At 805 mm (31.7 inches), the seat may be a challenge for shorter riders, limiting accessibility for some enthusiasts.
- Fuel Capacity: With a fuel tank capacity of 16.5 liters (4.36 gallons), longer rides may require more frequent stops for refueling.
- Limited Availability: As a limited edition model, the 1190 RC8 R Akrapovic may be difficult to find, making it a rare gem for collectors and enthusiasts alike.
Technical details
Source specification data
- Make
- KTM
- Model
- 1190 RC8 R Akrapovic
- Category
- Sport
- Starter
- Electric
- Comments
- Limited edition model.
- Color Options
- Black/orange/white
- Power
- 167.63 HP (122.4 kW)) @ 10250 RPM
- Clutch
- Wet
- m
- Double
- disk clutch, operated hydraulically
- Torque
- 123.00 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 8000 RPM
- Gearbox
- 6-speed
- Driveline
- 17:37. Primary drive: 40:76.
- Engine Type
- V 75°
- Fuel System
- Injection
- Bore X Stroke
- 105.0 x 69.0 mm (4.1 x 2.7 inches)
- Compression
- 13.5:1
- Displacement
- 1195.00 ccm (72.92 cubic inches)
- Cooling System
- Liquid
- Engine Details
- V2, four-stroke
- Exhaust System
- Stainless steel underfloor silencer with regulated catalytic converter
- Valves Per Cylinder
- 4
- Dry Weight
- 182.0 kg (401.2 pounds)
- Seat Height
- 805 mm (31.7 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.50 litres (4.36 gallons)
- Ground Clearance
- 110 mm (4.3 inches)
- Power Weight Ratio
- 0.9210 HP/kg
- Rake
- 23.3°
- Trail
- 97 mm (3.8 inches)
- Wheels
- Cast aluminium wheels 3.5 x 17in., 6 x 17in.
- Rear Tyre
- 190/55-ZR17
- Frame Type
- Chromium
- -
- Molybdenum
- trellis frame, powder-coated.
- Subframe
- :
- Aluminium
- .
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single
- disc.
- Brembo
- two piston, fixed caliper
- Front Brakes
- Double
- disc.
- Brembo
- four piston, radially bolted caliper
- Rear Suspension
- WP-Monoshock
- Front Suspension
- WP-USD 43 mm
- Rear Wheel Travel
- 140 mm (5.5 inches)
- Front Wheel Travel
- 140 mm (5.5 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
