Back to Bike FinderYears: 2017
2017Off-road

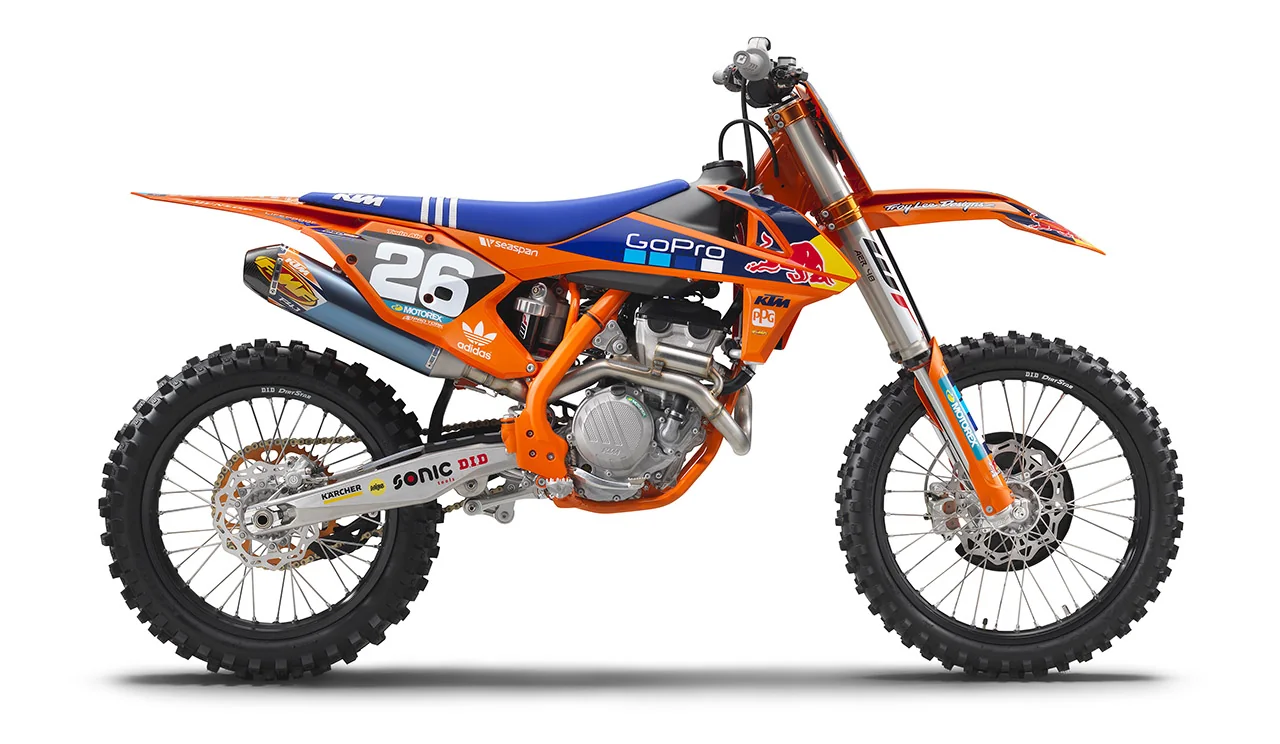

KTM 250 SX-F Factory Edition
Key specifications
Engine
250 cc
Weight
99 kg
Fuel type
petrol
Fuel capacity
1.9 L
Transmission
5-speed
Seat height
38 mm
Front brakes
Single disc. Brake calipers on floating bearings
Rear brakes
Single disc. Brake calipers on floating bearings
Overview
Introducing the 2017 KTM 250 SX-F Factory Edition, a formidable contender in the cross-motocross category that is designed to elevate your off-road experience. Positioned as a high-performance machine, the Factory Edition is a refined version of KTM's acclaimed 250 SX-F, built for riders who demand precision, power, and agility on the track. With its striking orange and black color scheme, this bike not only looks the part but also embodies the cutting-edge engineering that KTM is renowned for. Whether you’re a seasoned
Pros
- Lightweight design at just 98.5 kg (217.2 pounds), enhancing agility and maneuverability.
- High-performance engine with smooth power delivery and responsive throttle response.
- Advanced suspension setup provides exceptional handling and comfort on rough terrain.
Cons
- Carbureted fuel system may require more maintenance compared to modern fuel-injected systems.
- Seat height may be challenging for shorter riders, even at its lowest setting.
- Limited fuel capacity of 7.00 liters (1.85 gallons) may necessitate more frequent stops during long rides.
Technical details
Source specification data
- Make
- KTM
- Model
- 250 SX-F Factory Edition
- Category
- Cross-motocross
- Starter
- Electric
- Color Options
- Orange/blue/white/black
- Clutch
- Wet
- ,
- S
- multi-disc clutch,
- Brembo
- hydraulics
- Max Rpm
- 14000
- Gearbox
- 5-speed
- Ignition
- Keihin EMS
- Driveline
- 13:48. Primary drive: 22:68.
- Fuel System
- Carburettor
- Bore X Stroke
- 78.0 x 52.3 mm (3.1 x 2.1 inches)
- Compression
- 13.5:1
- Displacement
- 249.91 ccm (15.25 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Transmission Type Final Drive
- Chain
- Dry Weight
- 98.5 kg (217.2 pounds)
- Seat Height
- 960 mm (37.8 inches) If adjustable, lowest setting.
- Fuel Capacity
- 7.00 litres (1.85 gallons)
- Ground Clearance
- 370 mm (14.6 inches)
- Rake
- 26.1°
- Wheels
- C
- machined hubs.
- Excel
- rims.
- Wire
- spoked.
- Frame Type
- 25CrMo4 steel central-tube frame
- Rear Brakes
- Single
- disc.
- Brake
- calipers on floating bearings
- Front Brakes
- Single
- disc.
- Brake
- calipers on floating bearings
- Rear Suspension
- WP shock absorber with linkage
- Front Suspension
- WP-USD, AER 48, Ø 48 mm
- Rear Wheel Travel
- 300 mm (11.8 inches)
- Front Wheel Travel
- 300 mm (11.8 inches)
- Rear Brakes Diameter
- 260 mm (10.2 inches)
- Front Brakes Diameter
- 300 mm (11.8 inches)
Available colors
Orange/blue/white/black
