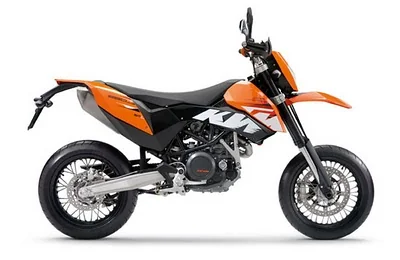

KTM 690 Supermoto
Key specifications
Overview
Introducing the 2008 KTM 690 Supermoto—a remarkable fusion of supermoto prowess and lightweight agility that stands out in the competitive motorcycle landscape. As a flagship model within KTM’s lineup, the 690 Supermoto captures the essence of urban riding while being more than capable on twisty backroads. With its distinctive styling and vibrant orange livery, this bike is not just a machine; it’s a statement for riders who crave both performance and thrill. The Supermoto category is known for its versatility, and the 690 excels in delivering a dynamic experience—combining off-road capability with street relevance. At the heart of the 690 Supermoto lies a robust 653.7cc single-cylinder, four-stroke engine that delivers an exhilarating 63.02 HP at 7500 RPM and a torque output of 65 Nm at 6550 RPM. This powertrain is designed for the enthusiastic rider, providing an engaging throttle response and an impressive power-to-weight ratio of 0.4146 HP/kg. The six-speed gearbox ensures smooth transitions through the power band, while the Keihin MX FCR 41 carburettor guarantees precise fuel delivery. The bike's liquid cooling system keeps temperatures in check, allowing you to push the limits without worrying about overheating. With a weight of just 152 kg, the 690 Supermoto is nimble, encouraging flickable handling and responsive cornering that invigorates the riding experience. KTM has equipped the 690 Supermoto with an array of features that enhance its riding dynamics and rider convenience. The chromoly trellis frame provides exceptional rigidity while keeping the overall weight low, contributing to its sharp handling characteristics. WP suspension—featuring a 48 mm USD front fork and a Monoshock with
Pros
- Powerful Engine: The single-cylinder engine offers an impressive power-to-weight ratio, delivering spirited acceleration and torque for exhilarating rides.
- Lightweight and Nimble: Weighing in at just 152 kg, the 690 Supermoto is agile and easy to maneuver, making it perfect for urban commuting or spirited corner carving.
- Advanced Suspension: With quality WP suspension, riders enjoy excellent handling and comfort, absorbing bumps and providing stability in various conditions.
Cons
- Limited Fuel Capacity: With a fuel tank of only 13.2 liters (3.49 gallons), longer rides may require more frequent stops for refueling.
- Kick Starter Only: The traditional kick starter may not appeal to all riders, especially those accustomed to electric starts for convenience.
- Seat Height: While adjustable, the 875 mm seat height may pose a challenge for shorter riders, limiting accessibility for some enthusiasts.
Technical details
Source specification data
- Make
- KTM
- Model
- 690 Supermoto
- Category
- Super motard
- Starter
- Kick
- Power
- 63.02 HP (46.0 kW)) @ 7500 RPM
- Clutch
- APTC multi-disc wet clutch, hydraulically operated
- Torque
- 65.00 Nm (6.6 kgf-m or 47.9 ft.lbs) @ 6550 RPM
- Gearbox
- 6-speed
- Ignition
- Kokusan digital
- Fuel System
- Carburettor. Keihin MX FCR 41
- Bore X Stroke
- 102.0 x 80.0 mm (4.0 x 3.1 inches)
- Compression
- 11.7:1
- Displacement
- 653.70 ccm (39.89 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Exhaust System
- INOX double silencer with regulated catalytic converters
- Lubrication System
- Pressure lubrication with 2 oil pumps
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Dry Weight
- 152.0 kg (335.1 pounds)
- Seat Height
- 875 mm (34.4 inches) If adjustable, lowest setting.
- Fuel Capacity
- 13.20 litres (3.49 gallons)
- Ground Clearance
- 260 mm (10.2 inches)
- Power Weight Ratio
- 0.4146 HP/kg
- Rake
- 26.0°
- Trail
- 112 mm (4.4 inches)
- Rear Tyre
- 160/60-17
- Frame Type
- Chromoly trellis frame, powder-coated
- Front Tyre
- 120/70-17
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- WP Monoshock with Pro Lever
- Front Suspension
- WP USD Ø 48 mm (1.89
- Rear Wheel Travel
- 310 mm (12.2 inches)
- Front Wheel Travel
- 280 mm (11.0 inches)
- Rear Brakes Diameter
- 240 mm (9.4 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
