Back to Bike FinderYears: 2026
2026Off-road

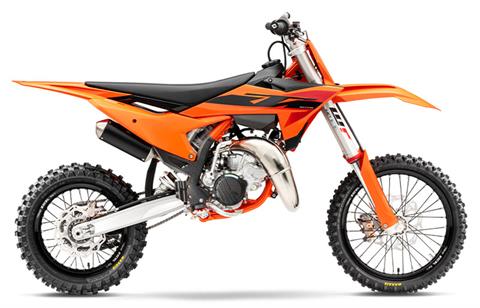

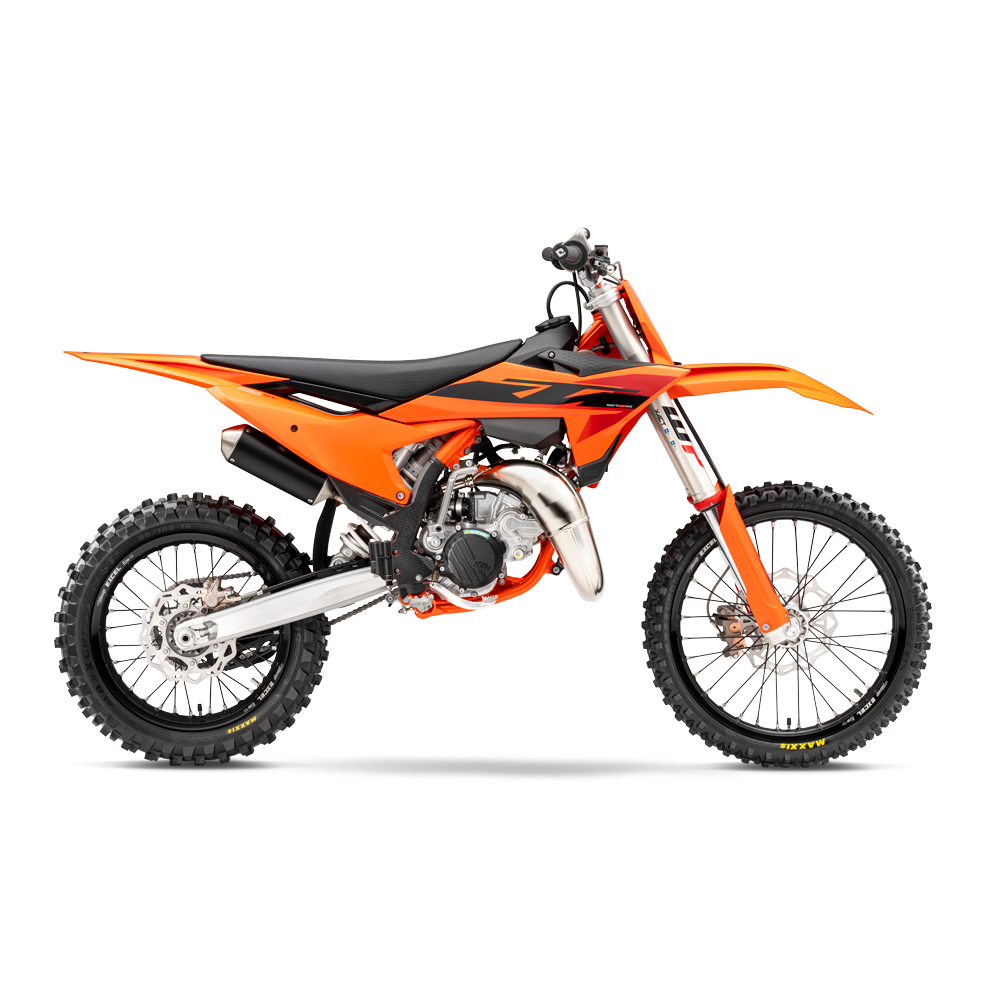

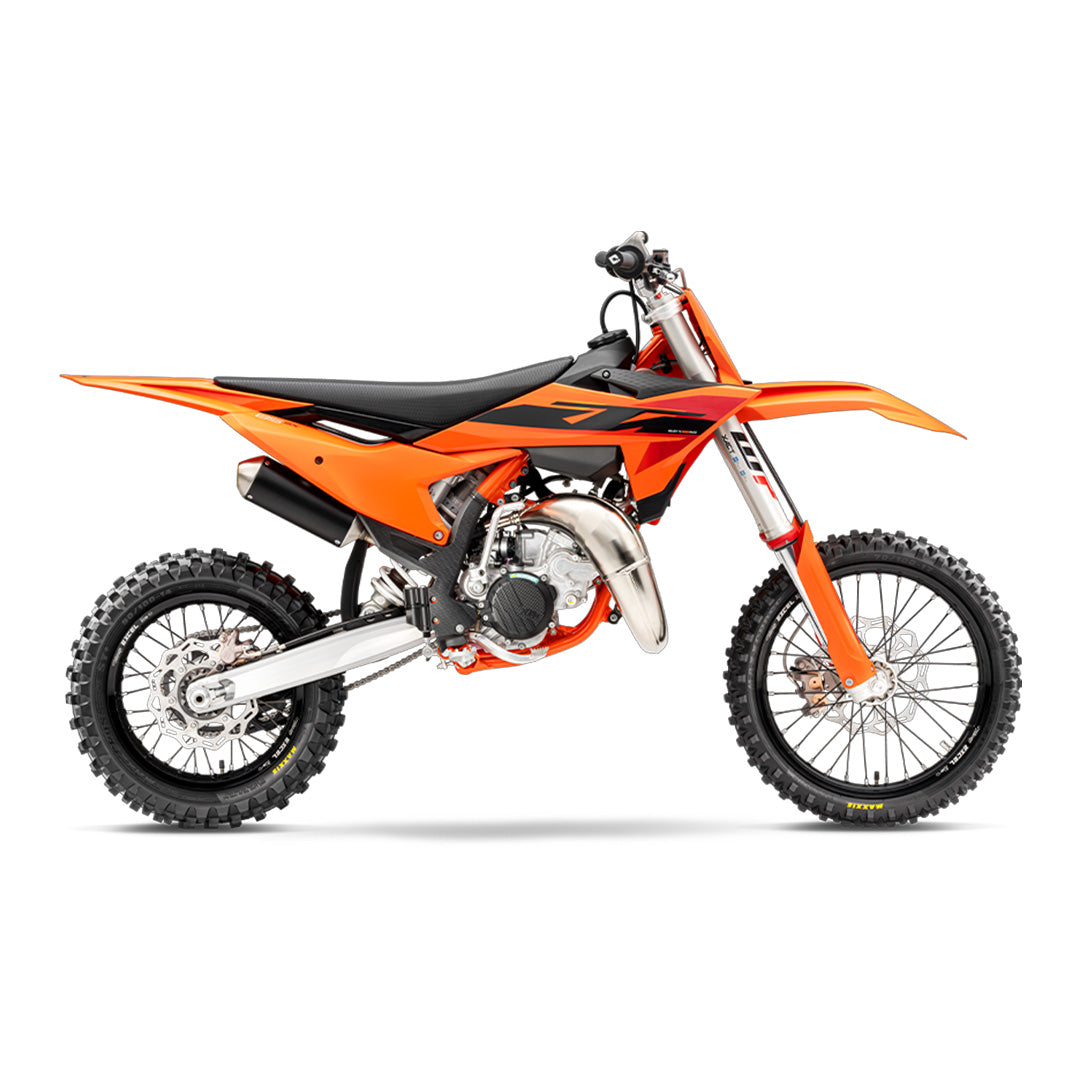

KTM SX 85 17/14
$6,949
Key specifications
Engine
84 cc
Weight
68 kg
Fuel type
petrol
Fuel capacity
5.0 L
Transmission
Manual, 6 speed, Chain
Seat height
845 mm
Front brakes
Hydraulic Disc
Rear brakes
Hydraulic Disc
Technical details
Source specification data
- Seats
- One
- -
- Seat Height (in/mm)
- 33.3 / 845
- Seat_type
- One-Piece
- Seat_location
- Driver
- Seat_material
- Vinyl
- Number_of_seats
- 1
- Seat_specifications
- Standard
- Brakes
- Front Brake Diameter (in/mm)
- 9.4 / 240
- Rear Brake Diameter (in/mm)
- 8.7 / 220
- Rear_brake_type
- Hydraulic Disc
- Brake_brand_name
- Formula
- Front_brake_type
- Hydraulic Disc
- Rear_brake_diameter_inmm
- 8.7 / 220
- Front_brake_diameter_inmm
- 9.4 / 240
- Engine
- Single
- -
- Engine Stroke2
- -
- Gas
- /
- Bore (mm/in)
- 47 / 1.85
- Stroke (in/mm)
- 1.93 / 49
- Displacement (cc/ci)
- 84.9 / 5.2
- Carburetor Size (mm)
- 28
- Cooling
- Liquid
- Starter
- Kick
- Bore_mmin
- 47 / 1.85
- Cylinders
- 1
- Fuel_type
- Gas / Oil Premix
- Carburetion
- Standard
- Engine_type
- Single-Cylinder
- Stroke_inmm
- 1.93 / 49
- Displacement
- 84.9 / 5.2
- Engine_stroke
- 2-Stroke
- Fuel_injector
- No
- Carburetion_type
- Carburetor
- Carburetion_brand
- Keihin
- Displacement_ccci
- 84.9 / 5.2
- Displacement_cc_ci
- 84
- Valve_configuration
- Reed Valve
- Engine_displacement_to_weight_cc
- 0.57
- Paint
- Standard
- Dealers
- KTM Dealers
- Folding
- No
- Pricing
- P
- $6,949
- Warranty (Months/Condition)
- 1 /
- Reverse
- No
- Exterior
- ConstructionStandardFrameChromium MolybdenumBody MaterialPlasticFoot PegsStandardFoot Peg LocationDriverHand GripsStandardHandlebarsStandardHandlebar PadsStandardExterior GuardsStandardBelt GuardNoBrush GuardNoChassis ProtectorsNoDrive Shaft GuardNoExhaust GuardYesFork GuardsYesLight GuardNoSaddle Bag GuardNoExterior CoversStandardRadiator CoverYesSide CoverNoFront FenderStandardRear FenderStandardStandStandardStand TypeKickSkid PlateOptional
- Metallic
- No
- Steering
- Steering ControlHandlebar
- Decal_kit
- Standard
- Foot_pegs
- Standard
- Lap_timer
- Optional
- Adjustable
- Yes
- Capacities
- Standard
- Carburetor
- Yes
- Hand_grips
- Standard
- Handlebars
- Standard
- Side_cover
- No
- Skid_plate
- Optional
- Tachometer
- Optional
- Convenience
- Adjustable HandlebarsStandardAdjustable LeversStandard
- Performance
- Standard
- Rear_fender
- Standard
- Construction
- Standard
- Front_fender
- Standard
- Paint_finish
- PaintStandardMetallicNoDecal KitStandard
- Photo_gallery
- Standard
- Tube_tubeless
- Tubed
- Air_adjustable
- No
- Handlebar_pads
- Standard
- Identification
- Off
- -
- X
- 85 17/14
- Parent_company
- KTM
- Radiator_cover
- Yes
- Exterior_covers
- Standard
- Steering_damper
- No
- Steering_control
- Handlebar
- Adjustable_levers
- Standard
- Foot_peg_location
- Driver
- Fuel_requirements
- Premium
- Carburetor_size_mm
- 28
- Chassis_protectors
- No
- Destination_charge
- 410
- Representative_image
- No
- Adjustable_handlebars
- Standard
- Number_of_carburetors
- 1
- Technical_specifications
- Wheelbase (in/mm)
- 50.5 / 1282
- Ground Clearance (in/mm)
- 12.1 / 308
- Dry Weight (lbs/kg)
- 149.9 / 68
- Fuel Capacity (gal/l)
- 1.4 / 5.4
- Engine Displacement
- to
- Weight (cc)
- 0.57
- Msrp
- 6,949
- Price
- Standard
- Warranty_monthscondition
- 1 / Limited
- Storage
- Storage CoverOptional
- Storage_cover
- Optional
- Frame
- Chromium Molybdenum
- Stand
- Standard
- Belt_guard
- No
- Stand_type
- Kick
- Brush_guard
- No
- Light_guard
- No
- Body_material
- Plastic
- Exhaust_guard
- Yes
- Exterior_guards
- Standard
- Saddle_bag_guard
- No
- Suspension
- Rear Adjustable Shock
- /
- Spring Pre
- -
- Front Suspension Size (in/mm)
- 1.7 / 43
- Front Travel (in/mm)
- 10.9 / 278
- Rear Travel (in/mm)
- 11.4 / 289
- Fork_guards
- Yes
- Rear_travel_inmm
- 11.4 / 289
- Front_travel_inmm
- 10.9 / 278
- Rear_suspension_type
- Twin Sided Swing Arm
- Front_suspension_type
- Inverted Fork
- Rear_suspension_material
- Aluminum
- Front_suspension_size_inmm
- 1.7 / 43
- Rear_suspension_brand_name
- WP XACT
- Front_suspension_brand_name
- WP XACT
- Number_rear_shock_absorbers
- 1
- Front_central_suspension_strut
- No
- Rear_adjustable_rebound_damping
- Yes
- Front_adjustable_rebound_damping
- Yes
- Rear_adjustable_shock_spring_preload
- Yes
- Overdrive
- No
- Transmission
- TransmissionStandardTransmission TypeManualNumber Of Speeds6OverdriveNoReverseNoPrimary Drive (Rear Wheel)Chain
- Number_of_speeds
- 6
- Drive_shaft_guard
- No
- Transmission_type
- Manual
- Rear_tire_speed_rating
- M
- Front_tire_speed_rating
- M
- Primary_drive_rear_wheel
- Chain
- Tires
- Standard
- Wheels
- Standard
- Tire_brand
- Maxxis®
- Wheels_tires
- Tube
- /
- Maxxis
- ®
- Front Wheel Width (in)
- 1.4
- Rear Wheel Width (in)
- 1.6
- Maxxis
- ®
- X
- -
- T
- 70/100
- R17
- 40
- Maxxis
- ®
- X
- -
- T
- 90/100
- R14
- 49
- Wheels_composition
- Aluminum
- Rear_tire_full_spec
- Maxxis® Maxxcross MX-ST 90/100 R14 49M
- Rear_wheel_diameter
- 14
- Front_tire_full_spec
- Maxxis® Maxxcross MX-ST 70/100 R17 40M
- Front_wheel_diameter
- 17
- Generic_type_primary
- Off-Road
- Rear_tire_aspect_ratio
- 100
- Front_tire_aspect_ratio
- 100
- Make
- KTM
- Year
- 2026
- Manufacturer_country
- Austria
- Manufacturer_recommend_minimum_age
- 11
- Display_name
- SX 85 17/14
- Instrumentation
- Digital InstrumentationOptionalTachometerOptionalLap TimerOptional
- Digital_instrumentation
- Optional
- Weight
- Standard
- Wheelbase
- (in/mm)
- Dimensions
- Standard
- Seat_height
- (in/mm)
- Fuel_capacity
- (gal/l)
- Wheelbase_inmm
- 50.5 / 1282
- Rear_tire_width
- 90
- Dry_weight_lbskg
- 149.9 / 68
- Front_tire_width
- 70
- Seat_height_inmm
- 33.3 / 845
- Fuel_capacity_gall
- 1.4 / 5.4
- Rear_wheel_width_in
- 1.6
- Front_wheel_width_in
- 1.4
- Ground_clearance_inmm
- 12.1 / 308
