2017Naked

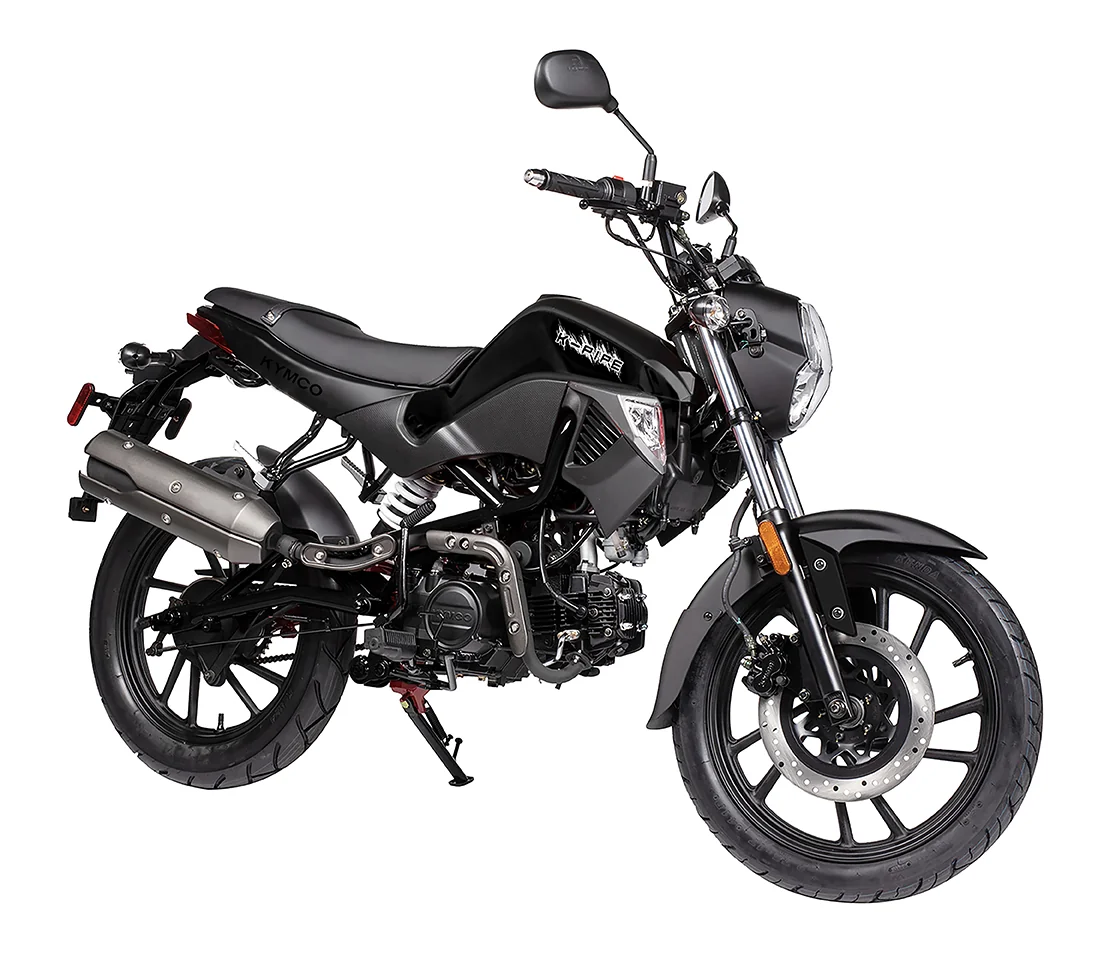

Kymco K-Pipe 125
$1,999
Key specifications
Engine
124 cc
Power
8 HP
Torque
9 Nm
Weight
120 kg
Fuel type
petrol
Fuel capacity
1.2 L
Transmission
4-speed
Seat height
31 mm
Front brakes
Double disc. Twin-piston
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Kymco
- Model
- K-Pipe 125
- Price
- S
- $ 1999.
- Prices
- depend on country, taxes, accessories, etc.
- Category
- Naked bike
- Starter
- Electric & kick
- Comments
- Kymco
- is made by
- Kwang Yang Motor Company
- ,
- Taiwan
- .
- Color Options
- Red, white, black
- Factory Warranty
- Year Factory Warranty
- , extended coverage available with
- O
- extended protection plan.
- Power
- 8.00 HP (5.8 kW)) @ 7000 RPM
- Torque
- 8.54 Nm (0.9 kgf-m or 6.3 ft.lbs) @ 6000 RPM
- Gearbox
- 4-speed
- Fuel System
- Carburettor
- Bore X Stroke
- 54.0 x 54.0 mm (2.1 x 2.1 inches)
- Compression
- 8.6:1
- Displacement
- 123.70 ccm (7.55 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Emission Details
- Meets
- current
- A
- standards.
- Models
- sold in
- California
- meet current
- B
- ˆstandards and may differ slightly due to emissions equipment.
- Transmission Type Final Drive
- Chain
- Dry Weight
- 119.8 kg (264.0 pounds)
- Seat Height
- 787 mm (31.0 inches) If adjustable, lowest setting.
- Fuel Capacity
- 4.54 litres (1.20 gallons)
- Overall Width
- 750 mm (29.5 inches)
- Overall Height
- 800 mm (31.5 inches)
- Overall Length
- 1,950 mm (76.8 inches)
- Power Weight Ratio
- 0.0668 HP/kg
- Rear Tyre
- 3.50-17
- Frame Type
- Tubular steel
- Front Tyre
- 2.75-17
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Double disc. Twin-piston
- Rear Suspension
- Mono shock
- Front Suspension
- Telescopic forks
- Front Brakes Diameter
- 276 mm (10.9 inches)
Available colors
Redwhiteblack
