Back to Bike FinderYears: 2013
2013Naked

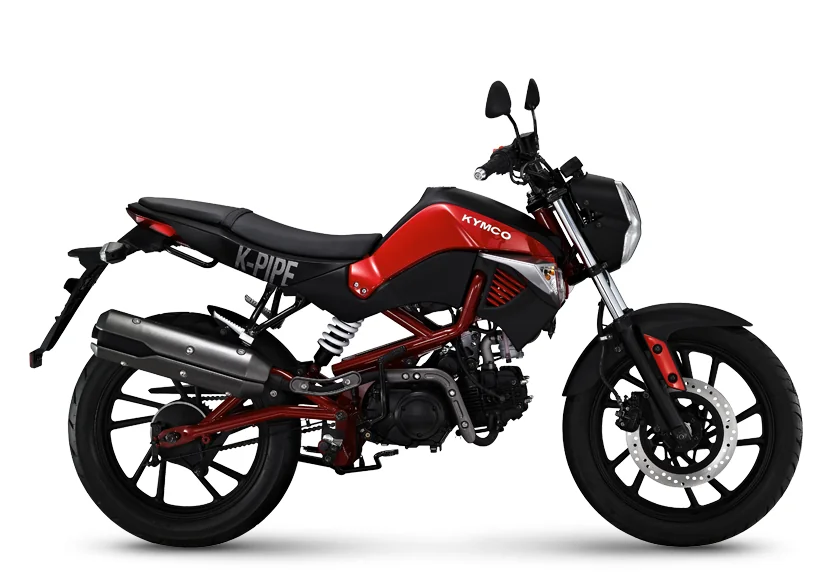

Kymco K-Pipe 50
Key specifications
Engine
49 cc
Power
2 HP
Torque
3 Nm
Weight
103 kg
Fuel type
petrol
Transmission
4-speed
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Kymco
- Model
- K-Pipe 50
- Category
- Naked bike
- Starter
- Electric & kick
- Color Options
- Red, white
- Factory Warranty
- Two Year Limited Factory Warranty
- Power
- 2.01 HP (1.5 kW)) @ 6000 RPM
- Torque
- 2.50 Nm (0.3 kgf-m or 1.8 ft.lbs) @ 4000 RPM
- Gearbox
- 4-speed
- Fuel System
- Carburettor
- Bore X Stroke
- 39.0 x 41.0 mm (1.5 x 1.6 inches)
- Displacement
- 49.00 ccm (2.99 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Transmission Type Final Drive
- Shaft drive (cardan)
- Dry Weight
- 102.5 kg (226.0 pounds)
- Overall Length
- 1,950 mm (76.8 inches)
- Power Weight Ratio
- 0.0196 HP/kg
- Wheels
- Black rims
- Rear Tyre
- 130/70-17
- Frame Type
- Tubular steel
- Front Tyre
- 120/70-17
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Monoshock
- Front Suspension
- Telescopic fork
Available colors
Redwhite
