2024ATV

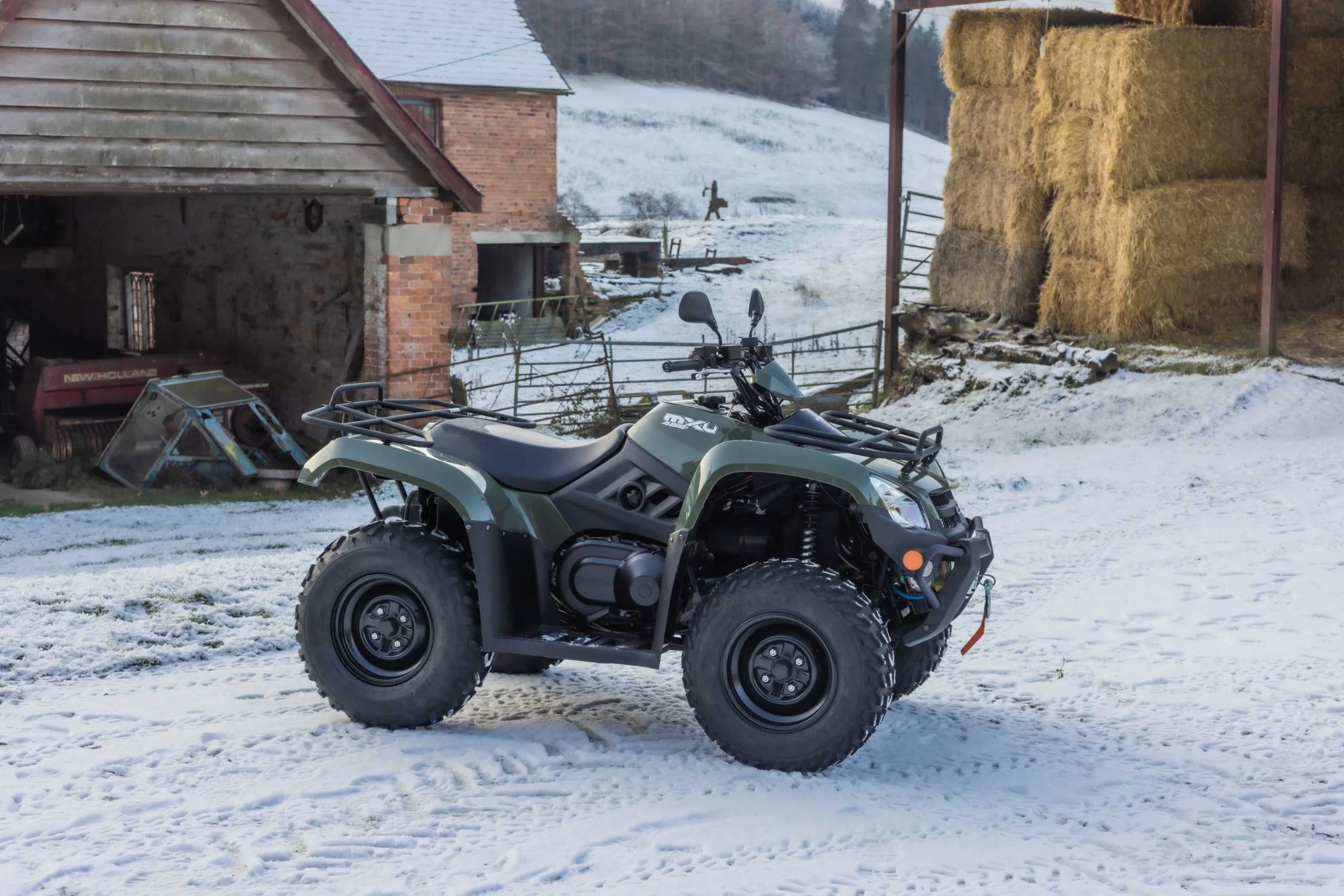

Kymco MXU 465
Key specifications
Torque
34 Nm
Weight
294 kg
Fuel type
petrol
Fuel capacity
4.0 L
Transmission
Automatic
Front brakes
Single disc. Combined braking system (CBS)
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Kymco
- Model
- MXU 465
- Category
- ATV
- Starter
- Electric
- Color Options
- Green
- Factory Warranty
- One year limited
- Carrying Capacity
- Front and rear rack
- Torque
- 33.8 Nm (3.4 kgf-m or 24.9 ft.lbs) @ 5500 RPM
- Gearbox
- Automatic
- Ignition
- CDI
- Driveline
- CVT Automatic H-L-N-R.
- Fuel System
- Injection. EFI
- Bore X Stroke
- 89.0 x 71.2 mm (3.5 x 2.8 inches)
- Compression
- 9.0:1
- Cooling System
- Liquid
- Lubrication System
- Wet sump
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Shaft drive (cardan) (final drive)
- Dry Weight
- 294.0 kg (648.2 pounds)
- Fuel Capacity
- 14.99 litres (3.96 US gallons)
- Overall Width
- 1102 mm (43.4 inches)
- Overall Height
- 1192 mm (46.9 inches)
- Overall Length
- 2085 mm (82.1 inches)
- Ground Clearance
- 260 mm (10.2 inches)
- Power Weight Ratio
- 0.1122 HP/kg
- Rear Tyre
- 24/10-12
- Frame Type
- Pipe under bone
- Front Tyre
- 24/8-12
- Rear Brakes
- Single disc
- Front Brakes
- Single
- disc.
- Combined
- braking system (
- S
- )
- Rear Suspension
- Dual A-Arm, IRS
- Front Suspension
- Dual A-Arm
- Rear Wheel Travel
- 178 mm (7.0 inches)
- Front Wheel Travel
- 178 mm (7.0 inches)
Available colors
Green
