Back to Bike FinderYears: 2017
2017ATV

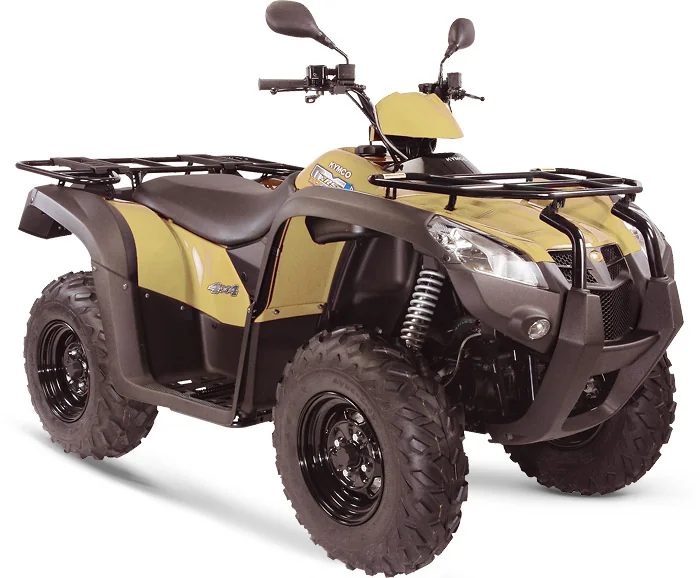

Kymco MXU 500 IRS
Key specifications
Engine
498 cc
Power
20 HP
Weight
324 kg
Fuel type
petrol
Fuel capacity
5.0 L
Transmission
Automatic
Seat height
33 mm
Front brakes
Double disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Kymco
- Model
- MXU 500 IRS
- Category
- ATV
- Starter
- Electric
- Instruments
- Backlit Digital Dash (clock, mph, trip, fuel, odometer)
- Color Options
- Red
- Carrying Capacity
- Heavy
- -
- Duty Front
- and
- Power
- 19.98 HP (14.6 kW)) @ 5800 RPM
- Gearbox
- Automatic
- Ignition
- CDI
- Driveline
- H
- -
- L
- -
- N
- -
- R
- -
- Differential Lock
- . 2
- D
- /4
- D
- .
- Fuel System
- Injection. EFI
- Compression
- 10.5:1
- Displacement
- 498.00 ccm (30.39 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Transmission Type Final Drive
- Belt
- Dry Weight
- 324.0 kg (714.3 pounds)
- Seat Height
- 840 mm (33.1 inches) If adjustable, lowest setting.
- Fuel Capacity
- 19.00 litres (5.02 gallons)
- Overall Width
- 1,223 mm (48.1 inches)
- Overall Height
- 1,313 mm (51.7 inches)
- Overall Length
- 2,203 mm (86.7 inches)
- Power Weight Ratio
- 0.0617 HP/kg
- Rear Tyre
- 25/10-12
- Frame Type
- Tubular steel
- Front Tyre
- 25/8-12
- Rear Brakes
- Single disc
- Front Brakes
- Double disc
- Rear Suspension
- Engine Type
- Front Suspension
- Independent Dual A-Arm
Available colors
Red
