Back to Bike FinderYears: 2021
2021ATV

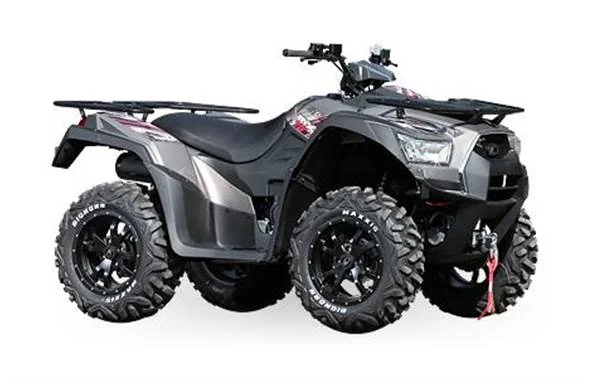

Kymco MXU 500i EPS
Key specifications
Engine
501 cc
Power
34 HP
Torque
39 Nm
Weight
329 kg
Fuel type
petrol
Fuel capacity
4.4 L
Front brakes
Double disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Kymco
- Model
- MXU 500i EPS
- Category
- ATV
- Starter
- Electric
- Instruments
- Backlit Digital Dash (clock, mph, trip, fuel, odometer)
- Color Options
- Malt Deep Blue, Flat Deep Green
- Factory Warranty
- One-Year Limited Factory Warranty
- Carrying Capacity
- Heavy
- -
- Duty Front
- and
- Power
- 33.5 HP (24.5 kW)) @ 6500 RPM
- Torque
- 38.8 Nm (4.0 kgf-m or 28.6 ft.lbs) @ 5500 RPM
- Ignition
- Electric
- Driveline
- H
- -
- L
- -
- N
- -
- R
- -
- Differential Lock
- . 2
- D
- /4
- D
- .
- Fuel System
- Injection. EFI
- Bore X Stroke
- 92.0 x 75.4 mm (3.6 x 3.0 inches)
- Displacement
- 501.0 ccm (30.57 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Belt
- Dry Weight
- 329.0 kg (725.3 pounds)
- Fuel Capacity
- 16.50 litres (4.36 gallons)
- Overall Width
- 1219 mm (48.0 inches)
- Overall Height
- 1267 mm (49.9 inches)
- Overall Length
- 2210 mm (87.0 inches)
- Power Weight Ratio
- 0.1018 HP/kg
- Rear Tyre
- 25/10-12
- Front Tyre
- 25/8-12
- Rear Brakes
- Single disc
- Front Brakes
- Double disc
- Rear Suspension
- Independent Dual A-Arm
- Front Suspension
- Independent Dual A-Arm
Available colors
Malt Deep BlueFlat Deep Green
