Back to Bike FinderYears: 2013
2013ATV

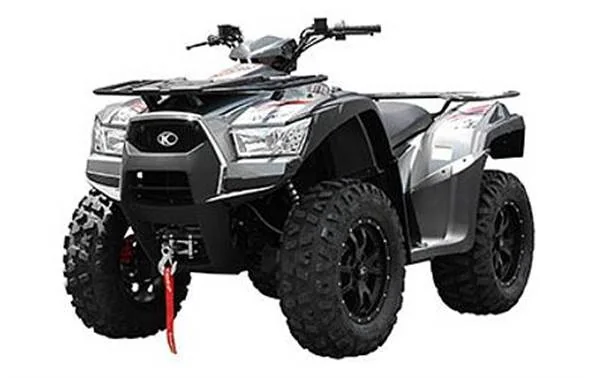

Kymco MXU 500i LE
$8,299
Key specifications
Engine
499 cc
Power
48 HP
Torque
40 Nm
Weight
305 kg
Fuel type
petrol
Fuel capacity
4.5 L
Seat height
35 mm
Front brakes
Double disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Kymco
- Model
- MXU 500i LE
- Price
- S
- $ 8299.
- Prices
- depend on country, taxes, accessories, etc.
- Category
- ATV
- Starter
- Electric
- Comments
- 3,000-lb Winch
- Instruments
- Backlit Digital Dash (clock, mph, trip, fuel, odometer)
- Color Options
- Metallic Silver.
- Factory Warranty
- One-Year Limited Factory Warranty
- Carrying Capacity
- Heavy
- -
- Duty Front
- and
- Power
- 47.61 HP (34.8 kW)) @ 6500 RPM
- Torque
- 40.00 Nm (4.1 kgf-m or 29.5 ft.lbs) @ 5500 RPM
- Ignition
- CDI
- Fuel System
- Injection
- Bore X Stroke
- 92.0 x 75.0 mm (3.6 x 3.0 inches)
- Compression
- 10.5:1
- Displacement
- 498.50 ccm (30.42 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Transmission Type Final Drive
- Belt
- Dry Weight
- 305.0 kg (672.4 pounds)
- Seat Height
- 890 mm (35.0 inches) If adjustable, lowest setting.
- Fuel Capacity
- 17.00 litres (4.49 gallons)
- Overall Width
- 1,223 mm (48.1 inches)
- Overall Height
- 1,313 mm (51.7 inches)
- Overall Length
- 2,203 mm (86.7 inches)
- Power Weight Ratio
- 0.1561 HP/kg
- Wheels
- Black Aluminum Alloy Wheels
- Rear Tyre
- 25/10-12
- Front Tyre
- 25/8-12
- Rear Brakes
- Single disc
- Front Brakes
- Double disc
- Rear Suspension
- Independent
- Front Suspension
- Dual A-Arm
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 190 mm (7.5 inches)
Available colors
Metallic Silver.
