2008Scooter

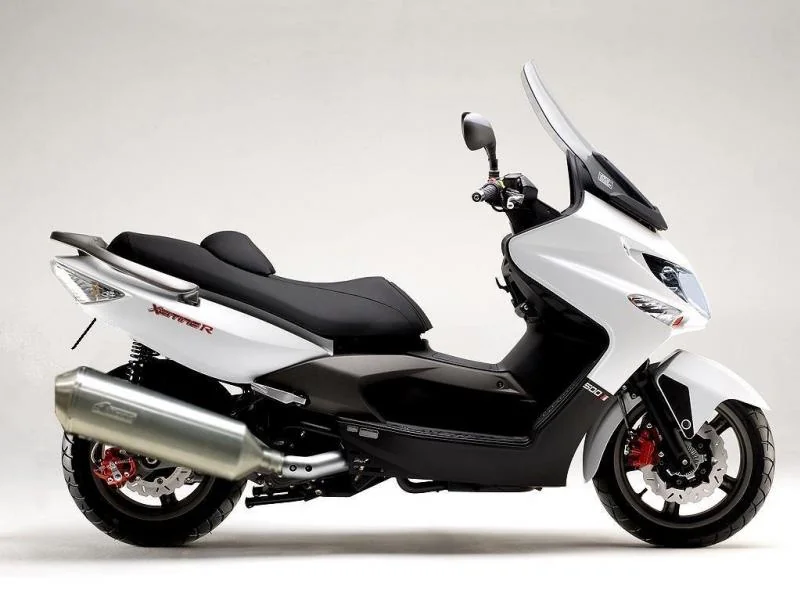

Kymco Xciting R AFI 500
Key specifications
Engine
499 cc
Power
35 HP
Torque
39 Nm
Weight
215 kg
Fuel type
petrol
Fuel capacity
3.4 L
Transmission
Automatic
Seat height
31 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Kymco
- Model
- Xciting R AFI 500
- Category
- Scooter
- Starter
- Electric
- Color Options
- White
- Power
- 35.00 HP (25.5 kW)) @ 7500 RPM
- Torque
- 39.20 Nm (4.0 kgf-m or 28.9 ft.lbs) @ 5500 RPM
- Gearbox
- Automatic
- Bore X Stroke
- 92.0 x 75.0 mm (3.6 x 3.0 inches)
- Compression
- 10.5:1
- Displacement
- 498.50 ccm (30.42 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Transmission Type Final Drive
- Belt
- Dry Weight
- 215.0 kg (474.0 pounds)
- Seat Height
- 780 mm (30.7 inches) If adjustable, lowest setting.
- Fuel Capacity
- 12.80 litres (3.38 gallons)
- Overall Width
- 815 mm (32.1 inches)
- Overall Height
- 1,335 mm (52.6 inches)
- Overall Length
- 2,250 mm (88.6 inches)
- Ground Clearance
- 150 mm (5.9 inches)
- Power Weight Ratio
- 0.1628 HP/kg
- Rear Tyre
- 150/70-14
- Front Tyre
- 120/70-15
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Double Swing
- Front Suspension
- Telescopic fork
- Rear Wheel Travel
- 100 mm (3.9 inches)
- Front Wheel Travel
- 110 mm (4.3 inches)
- Rear Brakes Diameter
- 240 mm (9.4 inches)
- Front Brakes Diameter
- 260 mm (10.2 inches)
Available colors
White
