2013Cruiser

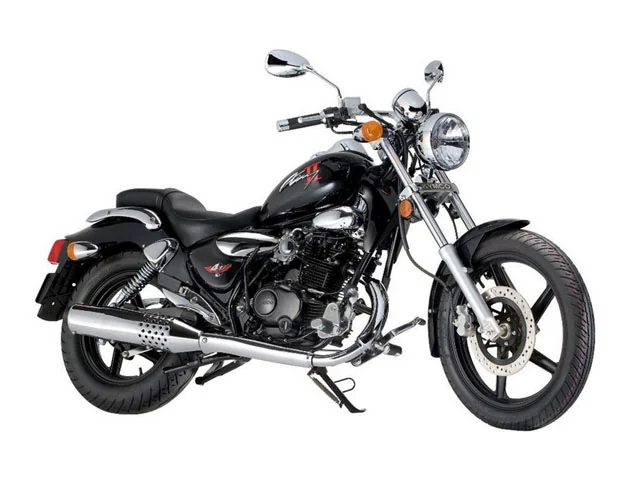

Kymco Zing II 125
Key specifications
Engine
124 cc
Power
12 HP
Torque
9 Nm
Weight
152 kg
Fuel type
petrol
Fuel capacity
3.7 L
Transmission
5-speed
Seat height
27 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Kymco
- Model
- Zing II 125
- Category
- Custom-cruiser
- Starter
- Electric & kick
- Comments
- Kymco
- is made by
- Kwang Yang Motor Company
- ,
- Taiwan
- .
- Color Options
- Black
- Factory Warranty
- 24 months
- Power
- 11.53 HP (8.4 kW)) @ 9500 RPM
- Torque
- 9.30 Nm (0.9 kgf-m or 6.9 ft.lbs) @ 7750 RPM
- Gearbox
- 5-speed
- Top Speed
- 112.7 km/h (70.0 mph)
- Fuel System
- Carburettor
- Bore X Stroke
- 56.5 x 49.5 mm (2.2 x 1.9 inches)
- Compression
- 9.2:1
- Displacement
- 124.10 ccm (7.57 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Dry Weight
- 152.0 kg (335.1 pounds)
- Seat Height
- 680 mm (26.8 inches) If adjustable, lowest setting.
- Fuel Capacity
- 14.00 litres (3.70 gallons)
- Overall Width
- 820 mm (32.3 inches)
- Overall Length
- 2,195 mm (86.4 inches)
- Power Weight Ratio
- 0.0759 HP/kg
- Wheels
- Black, 5-spoke
- Rear Tyre
- 130/90-15
- Frame Type
- Tube box
- Front Tyre
- 3.00-18
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Double Swing
- Front Suspension
- Telescopic fork
- Rear Wheel Travel
- 55 mm (2.2 inches)
- Front Wheel Travel
- 135 mm (5.3 inches)
- Rear Brakes Diameter
- 140 mm (5.5 inches)
- Front Brakes Diameter
- 276 mm (10.9 inches)
Available colors
Black
