Back to Bike FinderYears: 2023
2023Scooter

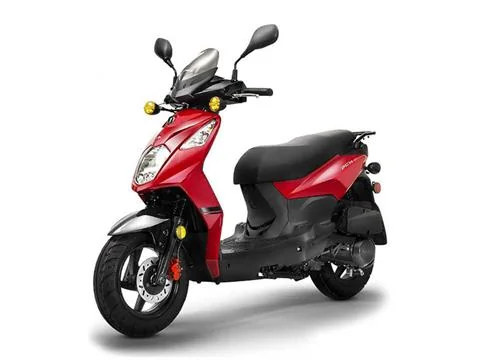

Lance PCH 50
Key specifications
Engine
49 cc
Power
2 HP
Torque
3 Nm
Weight
99 kg
Fuel type
petrol
Fuel capacity
1.4 L
Transmission
Automatic
Seat height
31 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Lance
- Model
- PCH 50
- Category
- Scooter
- Starter
- Electric
- Comments
- Built by SYM.
- Electrical
- 12V 6Ah Maintenance-Free Battery
- Instruments
- Analogue
- Color Options
- Arctic White, Chili Red, Midnight Black
- Factory Warranty
- 24 months unlimited miles
- Carrying Capacity
- Underseat storage
- Power
- 1.9 HP (1.4 kW)) @ 8500 RPM
- Torque
- 2.5 Nm (0.3 kgf-m or 1.8 ft.lbs) @ 6500 RPM
- Gearbox
- Automatic
- Ignition
- CDI
- Top Speed
- 48.3 km/h (30.0 mph)
- Driveline
- CVT
- Engine Type
- Single cylinder, four-stroke
- Compression
- 11.8:1
- Displacement
- 49.0 ccm (2.99 cubic inches)
- Cooling System
- Air
- Engine Details
- Ceramic-Coated Cylinder
- Emission Details
- A
- and
- T Approved
- ,
- C
- .
- A
- .
- R
- .
- B
- .
- Approved
- for
- Fuel Consumption
- 2.01 litres/100 km (49.8 km/l or 117.03 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Transmission Type Final Drive
- Belt (final drive)
- Dry Weight
- 98.9 kg (218.0 pounds)
- Seat Height
- 787 mm (31.0 inches) If adjustable, lowest setting.
- Fuel Capacity
- 5.19 litres (1.37 US gallons)
- Overall Width
- 701 mm (27.6 inches)
- Overall Height
- 1237 mm (48.7 inches)
- Overall Length
- 1905 mm (75.0 inches)
- Ground Clearance
- 206 mm (8.1 inches)
- Power Weight Ratio
- 0.0192 HP/kg
- Wheels
- Aluminium rims
- Rear Tyre
- 130/70-12
- Frame Type
- High Strength Steel
- Front Tyre
- 120/70-12
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- UNit swing
- Front Suspension
- Telescopic fork
- Rear Brakes Diameter
- 130 mm (5.1 inches)
- Front Brakes Diameter
- 190 mm (7.5 inches)
Available colors
Arctic WhiteChili RedMidnight Black
