Back to Bike FinderYears: 2010

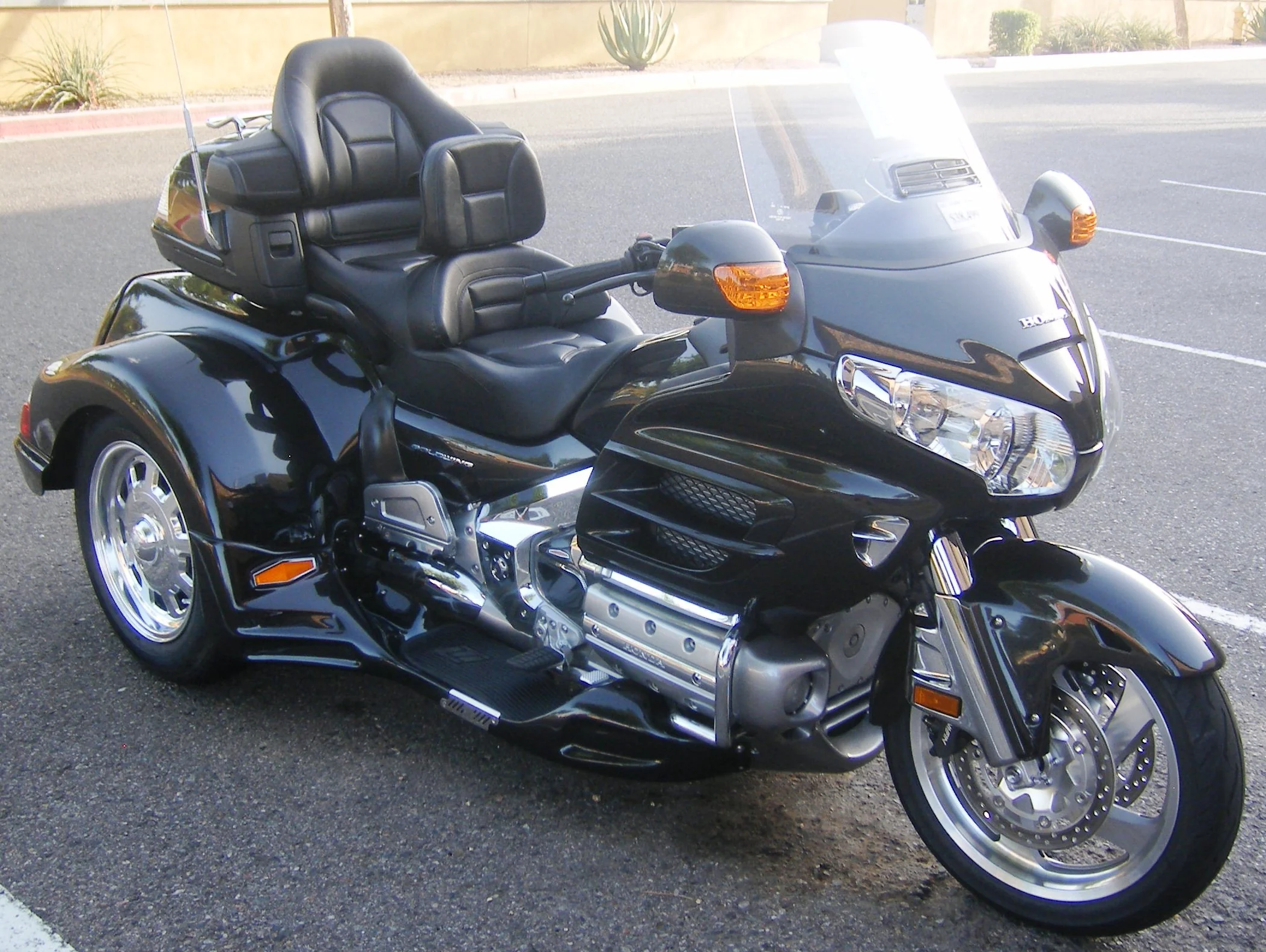

Lehman Trikes Monarch II Gold Wing
2010Touring

Lehman Trikes Monarch II Gold Wing

Key specifications

Engine
1832 cc
Fuel type
petrol
Fuel capacity
6.6 L
Transmission
5-speed
Seat height
29 mm
Front brakes
Double disc
Rear brakes
Single disc

Technical details

Source specification data

Make
Lehman Trikes
Model
Monarch II Gold Wing
Category
Touring
Starter
Electric
Comments
Three
wheels.
L1800 Gold Wing
.
Trunk Volume
: 4.5 cu.ft. (127
L
).
Gearbox
5-speed
Ignition
Computer-controlled digital with three-dimensional mapping
Fuel System
Injection. Programmed Fuel Injection (PGM-FI)
Bore X Stroke
74.0 x 71.0 mm (2.9 x 2.8 inches)
Displacement
1832.00 ccm (111.79 cubic inches)
Cooling System
Liquid
Engine Details
Six cylinder boxer, four-stroke
Valves Per Cylinder
2
Transmission Type Final Drive
Shaft drive (cardan)
Seat Height
739 mm (29.1 inches) If adjustable, lowest setting.
Fuel Capacity
24.98 litres (6.60 gallons)
Overall Width
1,372 mm (54.0 inches)
Overall Length
2,845 mm (112.0 inches)
Weight Incl Oil Gas Etc
521.0 kg (1,148.6 pounds)
Rake
29.2°
Trail
109 mm (4.3 inches)
Rear Tyre
180/60-R16
Front Tyre
130/70-R18
Rear Brakes
Single disc
Front Brakes
Double disc
Rear Suspension
Pro
-
Arm
single-side swingarm with
Pro
-
Link
single shock with computer-controlled spring-preload adjustment with two memory presets
Front Suspension
45mm cartridge fork with anti-dive system, 5.5-inch travel
Rear Wheel Travel
104 mm (4.1 inches)
Rear Brakes Diameter
316 mm (12.4 inches)
Front Brakes Diameter
296 mm (11.7 inches)
