Back to Bike FinderYears: 2010

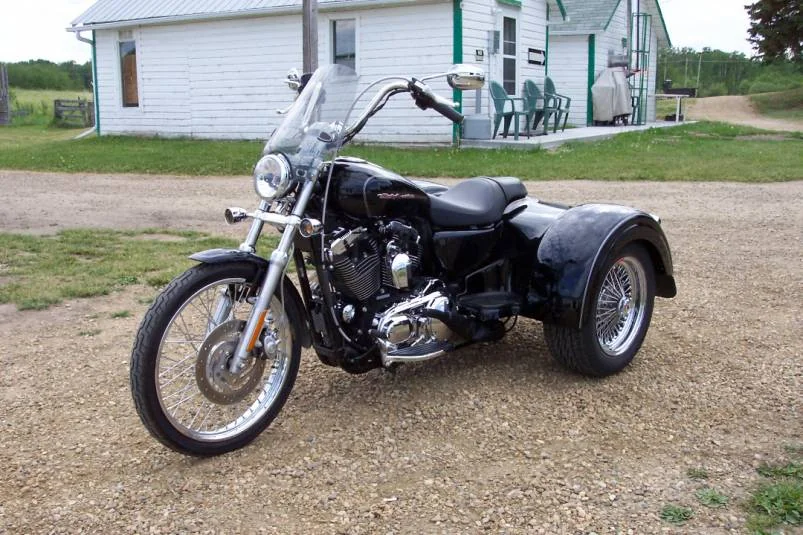

Lehman Trikes Raider Sportster
2010Cruiser

Lehman Trikes Raider Sportster

Key specifications

Engine
1202 cc
Torque
98 Nm
Fuel type
petrol
Fuel capacity
4.5 L
Transmission
5-speed
Seat height
27 mm
Front brakes
Single disc. 2-piston calipers
Rear brakes
Single disc. Single pistom

Technical details

Source specification data

Make
Lehman Trikes
Model
Raider Sportster
Category
Custom-cruiser
Starter
Electric
Comments
Three
wheels.
Modified Harley
-
Davidson Sportster
.
Trunk Volume
: 2 cu.ft. (57
L
).
Clutch
9-plate, wet
Torque
98.00 Nm (10.0 kgf-m or 72.3 ft.lbs) @ 3200 RPM
Gearbox
5-speed
Fuel System
Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Bore X Stroke
88.9 x 96.8 mm (3.5 x 3.8 inches)
Compression
9.7:1
Displacement
1202.00 ccm (73.35 cubic inches)
Cooling System
Air
Engine Details
V2, four-stroke
Exhaust System
Chrome, staggered shorty exhaust with dual mufflers
Transmission Type Final Drive
Belt
Seat Height
673 mm (26.5 inches) If adjustable, lowest setting.
Fuel Capacity
17.00 litres (4.49 gallons)
Overall Width
1,372 mm (54.0 inches)
Overall Length
1,464 mm (57.6 inches)
Ground Clearance
112 mm (4.4 inches)
Weight Incl Oil Gas Etc
378.0 kg (833.3 pounds)
Rake
30.0°
Trail
119 mm (4.7 inches)
Rear Tyre
150/80-16
Front Tyre
MH90-21
Rear Brakes
Single disc. Single pistom
Front Brakes
Single disc. 2-piston calipers
Rear Suspension
Coil-over preload dual-adjustable
Front Suspension
39mm fork
Rear Wheel Travel
54 mm (2.1 inches)
Front Wheel Travel
145 mm (5.7 inches)
Rear Brakes Diameter
292 mm (11.5 inches)
Front Brakes Diameter
292 mm (11.5 inches)
