Back to Bike FinderYears: 2010

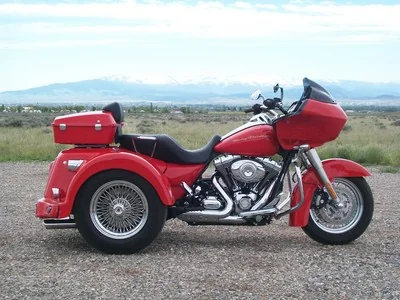

Lehman Trikes Renegade Road Glide
2010Touring

Lehman Trikes Renegade Road Glide

Key specifications

Engine
1584 cc
Torque
125 Nm
Fuel type
petrol
Fuel capacity
6.0 L
Transmission
6-speed
Seat height
27 mm
Front brakes
Double disc. Brembo triple-disc brake system
Rear brakes
Single disc

Technical details

Source specification data

Make
Lehman Trikes
Model
Renegade Road Glide
Category
Touring
Starter
Electric
Comments
Three
wheels.
Trunk
volume 142 kg.
Modified Harley
-
Davidson Road Glide
.
Clutch
9-plate, wet
Torque
125.00 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 3500 RPM
Gearbox
6-speed
Fuel System
Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Bore X Stroke
95.3 x 111.1 mm (3.8 x 4.4 inches)
Compression
9.2:1
Displacement
1584.00 ccm (96.66 cubic inches)
Cooling System
Air
Engine Details
V2, four-stroke
Exhaust System
2-1-2 exhaust system
Fuel Consumption
5.00 litres/100 km (20.0 km/l or 47.04 mpg)
Greenhouse Gases
O2
g/km. (
O2
-
Carbon
dioxide emission)
Transmission Type Final Drive
Belt
Seat Height
683 mm (26.9 inches) If adjustable, lowest setting.
Fuel Capacity
22.71 litres (6.00 gallons)
Overall Width
1,346 mm (53.0 inches)
Overall Height
1,397 mm (55.0 inches)
Overall Length
2,616 mm (103.0 inches)
Ground Clearance
129 mm (5.1 inches)
Weight Incl Oil Gas Etc
455.0 kg (1,003.1 pounds)
Rake
26.0°
Trail
173 mm (6.8 inches)
Rear Tyre
180/65-B16
Frame Type
New mild steel, single spar rigid backbone with
Front Tyre
130/80-B17
Rear Brakes
Single disc
Front Brakes
Double
disc.
Brembo
triple-disc brake system
Rear Suspension
Air-adjustable
Front Suspension
41.3mm telescopic fork
Rear Wheel Travel
76 mm (3.0 inches)
Front Wheel Travel
117 mm (4.6 inches)
Rear Brakes Diameter
300 mm (11.8 inches)
Front Brakes Diameter
300 mm (11.8 inches)
