Back to Bike FinderYears: 2010

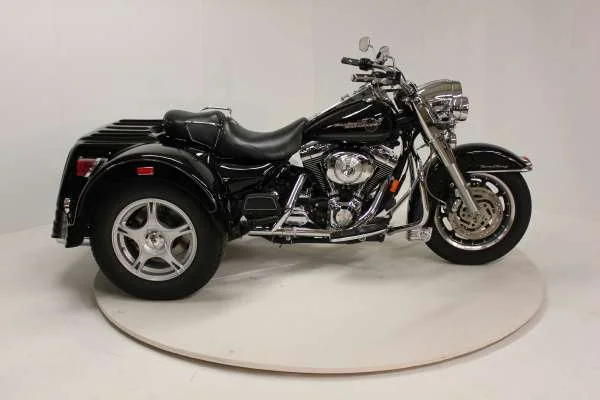

Lehman Trikes Renegade Road King
2010Touring

Lehman Trikes Renegade Road King

Key specifications

Engine
1584 cc
Torque
131 Nm
Fuel type
petrol
Fuel capacity
6.0 L
Transmission
6-speed
Seat height
28 mm
Front brakes
Single disc
Rear brakes
Single disc

Technical details

Source specification data

Make
Lehman Trikes
Model
Renegade Road King
Category
Touring
Starter
Electric
Comments
Three
wheels.
Modified Harley
-
Davidson Road King
.
Clutch
9-plate, wet
Torque
131.00 Nm (13.4 kgf-m or 96.6 ft.lbs) @ 3500 RPM
Gearbox
6-speed
Fuel System
Injection. Electronic Sequential Port Fuel Injection
Bore X Stroke
95.3 x 111.1 mm (3.8 x 4.4 inches)
Compression
9.2:1
Displacement
1584.00 ccm (96.66 cubic inches)
Cooling System
Air
Engine Details
V2, four-stroke
Transmission Type Final Drive
Belt
Seat Height
715 mm (28.1 inches) If adjustable, lowest setting.
Fuel Capacity
22.70 litres (6.00 gallons)
Overall Width
1,346 mm (53.0 inches)
Overall Length
2,591 mm (102.0 inches)
Ground Clearance
145 mm (5.7 inches)
Weight Incl Oil Gas Etc
485.0 kg (1,069.2 pounds)
Rake
26.0°
Trail
173 mm (6.8 inches)
Rear Tyre
180/65-B16
Front Tyre
130/80-B17
Rear Brakes
Single disc
Front Brakes
Single disc
Rear Suspension
Air-adjustable
Front Suspension
41.3mm telescopic fork
Rear Wheel Travel
76 mm (3.0 inches)
Front Wheel Travel
117 mm (4.6 inches)
Rear Brakes Diameter
300 mm (11.8 inches)
Front Brakes Diameter
300 mm (11.8 inches)
