Back to Bike FinderYears: 2006
2006Minibike

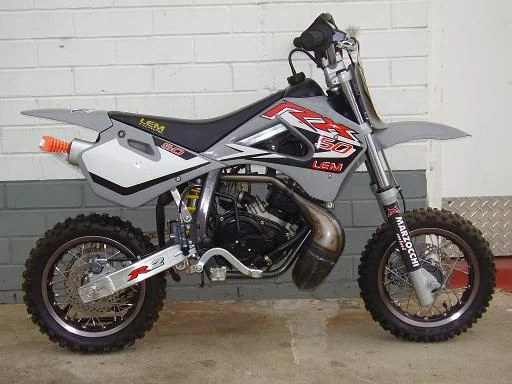

Lem CX3
Key specifications
Engine
50 cc
Power
3 HP
Torque
2 Nm
Weight
45 kg
Fuel type
petrol
Fuel capacity
0.7 L
Transmission
Automatic
Seat height
29 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Lem
- Model
- CX3
- Category
- Minibike-cross
- Starter
- Kick
- Comments
- Morini S6-E engine.
- Power
- 3.20 HP (2.3 kW))
- Clutch
- Centrifugal
- Torque
- 1.60 Nm (0.2 kgf-m or 1.2 ft.lbs)
- Gearbox
- Automatic
- Bore X Stroke
- 39.1 x 41.7 mm (1.5 x 1.6 inches)
- Displacement
- 49.80 ccm (3.04 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, two-stroke
- Lubrication System
- 3% mixture
- Transmission Type Final Drive
- Chain
- Dry Weight
- 45.4 kg (100.0 pounds)
- Seat Height
- 729 mm (28.7 inches) If adjustable, lowest setting.
- Fuel Capacity
- 2.49 litres (0.66 gallons)
- Overall Length
- 1,575 mm (62.0 inches)
- Ground Clearance
- 249 mm (9.8 inches)
- Power Weight Ratio
- 0.0706 HP/kg
- Rear Tyre
- 3.00-12
- Frame Type
- Oval steel tube
- Front Tyre
- 2.50-14
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Brakes Diameter
- 90 mm (3.5 inches)
- Front Brakes Diameter
- 180 mm (7.1 inches)
