2006Minibike

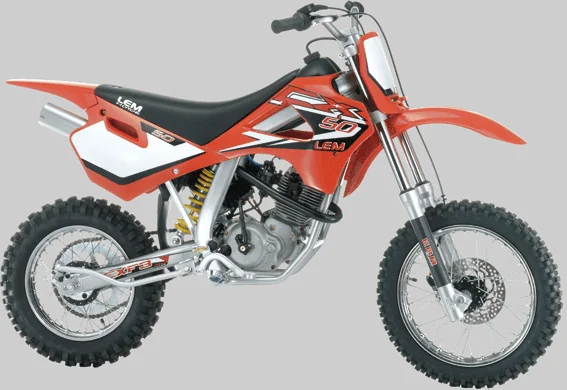

Lem CXF 2
Key specifications
Engine
50 cc
Power
4 HP
Torque
2 Nm
Weight
32 kg
Fuel type
petrol
Transmission
Automatic
Seat height
24 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Lem
- Model
- CXF 2
- Category
- Minibike-cross
- Starter
- Kick
- Power
- 4.00 HP (2.9 kW)) @ 9600 RPM
- Torque
- 1.60 Nm (0.2 kgf-m or 1.2 ft.lbs)
- Gearbox
- Automatic
- Fuel System
- Carburettor. Dell´Orto PHVA 17
- Bore X Stroke
- 39.0 x 41.8 mm (1.5 x 1.6 inches)
- Displacement
- 49.93 ccm (3.05 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- 3% mixture
- Transmission Type Final Drive
- Chain
- Dry Weight
- 32.0 kg (70.5 pounds)
- Seat Height
- 605 mm (23.8 inches) If adjustable, lowest setting.
- Overall Length
- 1,300 mm (51.2 inches)
- Power Weight Ratio
- 0.1250 HP/kg
- Rear Tyre
- 2.75-10
- Frame Type
- Steel
- Front Tyre
- 2.50-10
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Brakes Diameter
- 90 mm (3.5 inches)
- Front Brakes Diameter
- 160 mm (6.3 inches)
