Lem R3
1936Allround

Lem R3

Key specifications

Engine
305 cc
Power
11 HP
Fuel type
petrol
Fuel capacity
3.2 L
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)

Overview

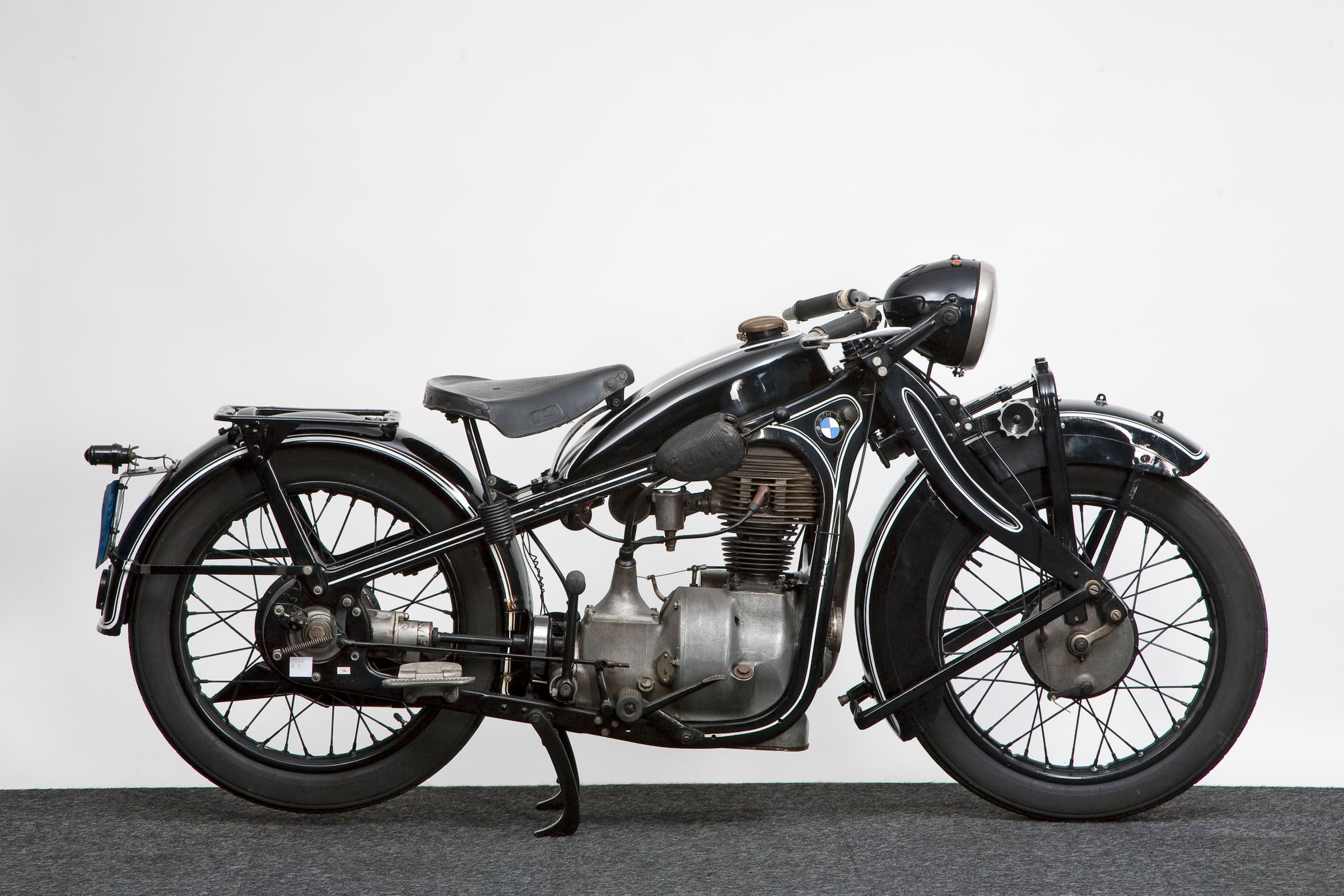

Introducing the 1936 BMW R3: A Timeless Classic The 1936 BMW R3 is a stunning example of early 20th-century engineering that perfectly encapsulates the spirit of adventure and innovation that defined the era. Positioned as an allround motorcycle, the R3 was designed to cater to a wide range of riders, from commuters to weekend explorers. With its classic lines and unmistakable BMW badge, this motorcycle not only offers a glimpse into the past but also serves as a reminder of the brand’s commitment to quality and performance. The R3's elegant design and robust build make it a cherished piece for collectors and classic motorcycle enthusiasts alike. At the heart of the R3 lies a spirited 305cc single-cylinder, four-stroke engine that produces a respectable 11.01 horsepower at 4,200 RPM. This engine configuration not only delivers a charmingly vintage riding experience but also allows the motorcycle to reach a top speed of 100 km/h (62.1 mph). The 6.1:1 compression ratio, combined with an 18mm carburettor, ensures smooth power delivery while maintaining impressive fuel efficiency, consuming just 3.00 litres per 100 km. The air-cooled engine coupled with a dry single-plate cable-operated clutch and a reliable shaft drive ensures that riders enjoy a smooth and responsive ride, whether navigating city streets or tackling winding country roads. The R3's chassis is constructed with a single cradle frame, offering a blend of rigidity and comfort that enhances handling. The motorcycle is equipped with drum brakes, both front and rear, providing confident stopping power with a diameter of 180 mm (7.1 inches). While the front suspension features a cartridge design for improved handling, the rear suspension remains rigid, which adds to the bike's classic character. With dimensions of 1,980 mm in length, 850 mm in width, and a height of 950 mm, the R3 strikes a balance between compactness and comfort, making it accessible for a variety of riders. Additionally, the kickstarter mechanism is an authentic touch, reminding riders of simpler times when the thrill of starting a motorcycle was part of the experience. **

Pros

  • Timeless Design: The classic aesthetics of the R3 make it a stunning piece for collectors and a head-turner on the road.
  • Fuel Efficiency: With an impressive consumption rate of 78.41 mpg, the R3 is economical for long-distance rides.
  • Smooth Handling: The combination of its lightweight frame and well-engineered suspension provides excellent maneuverability.

Cons

  • Limited Power: With only 11.01 HP, the R3 may feel underpowered compared to modern motorcycles, especially for highway cruising.
  • Rigid Rear Suspension: The lack of rear suspension may lead to a less comfortable ride on bumpy roads.
  • Kickstarter Only: The absence of an electric starter may deter some riders who prefer the convenience of modern starting systems.

Technical details

Source specification data

Make
BMW
Model
R3
Category
Allround
Starter
Kick
Carrying Capacity
200kg
Power
11.01 HP (8.0 kW)) @ 4200 RPM
Clutch
Dry-single plate-cable operated
Ignition
Battery
Top Speed
100.0 km/h (62.1 mph)
Fuel System
Carburettor. 18mm
Bore X Stroke
68.0 x 84.0 mm (2.7 x 3.3 inches)
Compression
6.1:1
Displacement
305.00 ccm (18.61 cubic inches)
Cooling System
Air
Engine Details
Single cylinder, four-stroke
Fuel Consumption
3.00 litres/100 km (33.3 km/l or 78.41 mpg)
Greenhouse Gases
O2
g/km. (
O2
-
Carbon
dioxide emission)
Lubrication System
Wet sump
Transmission Type Final Drive
Shaft drive (cardan)
Fuel Capacity
12.00 litres (3.17 gallons)
Overall Width
850 mm (33.5 inches)
Overall Height
950 mm (37.4 inches)
Overall Length
1,980 mm (78.0 inches)
Weight Incl Oil Gas Etc
149.0 kg (328.5 pounds)
Rear Tyre
3.50-26.00
Frame Type
Single cradle
Front Tyre
3.50-26.00
Rear Brakes
Expanding brake (drum brake)
Front Brakes
Expanding brake (drum brake)
Rear Suspension
Rigid
Front Suspension
Cartridge
Rear Brakes Diameter
180 mm (7.1 inches)
Front Brakes Diameter
180 mm (7.1 inches)
