Back to Bike FinderYears: 2015 · 2010

2015Scooter

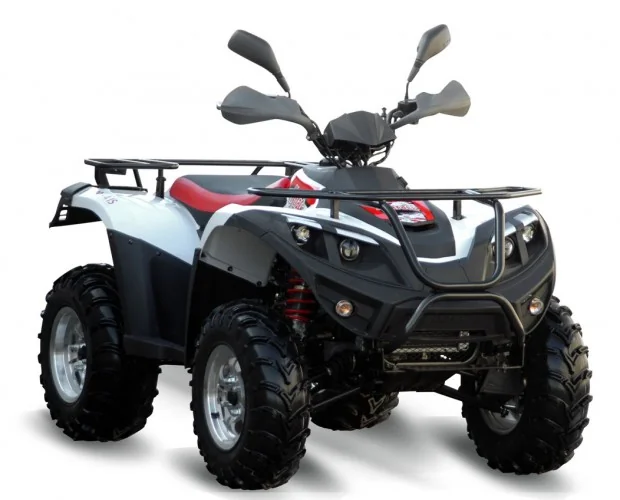

Linhai ATV Dragon Fly 400
Key specifications
Engine
352 cc
Weight
330 kg
Fuel type
petrol
Fuel capacity
4.2 L
Transmission
Automatic
Seat height
34 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Linhai
- Model
- ATV Dragon Fly 400
- Category
- Scooter
- Starter
- Electric
- Comments
- Chinese made ATV. Sold in Europe.
- Color Options
- Red, white
- Gearbox
- Automatic
- Driveline
- CVT
- Fuel System
- Carburettor
- Compression
- 9.0:1
- Displacement
- 352.00 ccm (21.48 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Pressure lubrication wet sump
- Transmission Type Final Drive
- Shaft drive (cardan)
- Dry Weight
- 330.0 kg (727.5 pounds)
- Seat Height
- 865 mm (34.1 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.00 litres (4.23 gallons)
- Overall Width
- 1,114 mm (43.9 inches)
- Overall Height
- 1,220 mm (48.0 inches)
- Overall Length
- 2,110 mm (83.1 inches)
- Ground Clearance
- 183 mm (7.2 inches)
- Rear Tyre
- 25/10-12
- Front Tyre
- 25/8-12
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Independent- double triangles superimposed
- Front Suspension
- Independent - mac pherson
Available colors
Redwhite
