Back to Bike FinderYears: 2013
2013Scooter

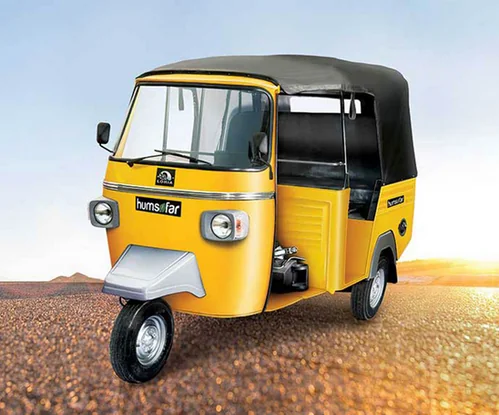

Lohia Humsafar
Key specifications
Engine
436 cc
Power
8 HP
Torque
18 Nm
Weight
420 kg
Fuel type
diesel
Fuel capacity
2.8 L
Transmission
4-speed
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Lohia
- Model
- Humsafar
- Category
- Scooter
- Starter
- Electric
- Comments
- Three
- wheel passenger scooter.
- Lohia
- is made in
- India
- .
- Electrical
- 12V, 50 A.H battery.
- Instruments
- Analogue
- Power
- 7.50 HP (5.5 kW)) @ 3600 RPM
- Torque
- 18.00 Nm (1.8 kgf-m or 13.3 ft.lbs) @ 2400 RPM
- Gearbox
- 4-speed
- Top Speed
- 50.0 km/h (31.1 mph)
- Engine Type
- Diesel engine
- Fuel System
- Injection
- Compression
- 19.0:1
- Displacement
- 436.00 ccm (26.60 cubic inches)
- Cooling System
- Oil & air
- Engine Details
- Single cylinder, four-stroke
- Dry Weight
- 420.0 kg (925.9 pounds)
- Fuel Capacity
- 10.50 litres (2.77 gallons)
- Overall Width
- 1,440 mm (56.7 inches)
- Overall Height
- 1,800 mm (70.9 inches)
- Overall Length
- 2,930 mm (115.4 inches)
- Power Weight Ratio
- 0.0179 HP/kg
- Seat
- 2-person rear seat
- Wheels
- Two rear wheels
- Rear Tyre
- 4.50-10
- Frame Type
- Monocoque
- chassis design with pressed steel
- Sheet
- and
- Stamped
- .
- Front Tyre
- 4.50-10
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Expanding brake (drum brake)
- Rear Suspension
- Independent
- suspensions with triangular
- Arm
- , rubber compression spring and dual action hydraulic shock absorber
- Front Suspension
- Dual Action Hydraulic Telescopic Shock Absorber with Helical Springs
