2004Minibike

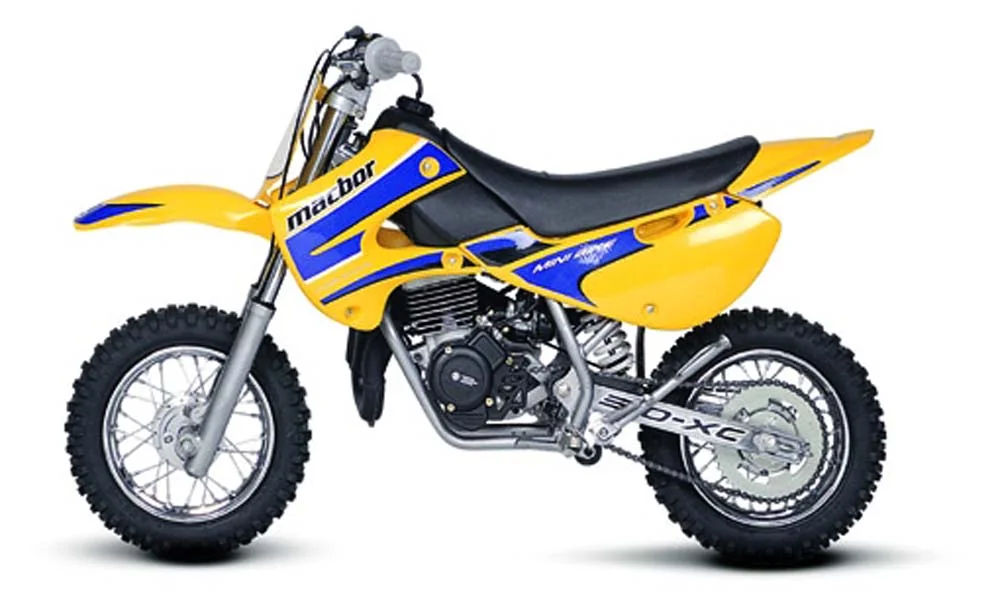

Macbor XC 510 S
Key specifications
Engine
50 cc
Weight
38 kg
Fuel type
petrol
Fuel capacity
1.0 L
Transmission
1-speed
Seat height
23 mm
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Macbor
- Model
- XC 510 S
- Category
- Minibike-cross
- Gearbox
- 1-speed
- Fuel System
- Carburettor
- Bore X Stroke
- 39.0 x 41.7 mm (1.5 x 1.6 inches)
- Displacement
- 49.80 ccm (3.04 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, two-stroke
- Dry Weight
- 38.0 kg (83.8 pounds)
- Seat Height
- 580 mm (22.8 inches) If adjustable, lowest setting.
- Fuel Capacity
- 3.90 litres (1.03 gallons)
- Overall Width
- 700 mm (27.6 inches)
- Overall Height
- 780 mm (30.7 inches)
- Overall Length
- 1,270 mm (50.0 inches)
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Expanding brake (drum brake)
- Rear Suspension
- Single shock absorber
- Front Suspension
- Mechanical fork
- Rear Wheel Travel
- 185 mm (7.3 inches)
- Front Wheel Travel
- 145 mm (5.7 inches)
