Back to Bike FinderYears: 2007
2007Naked

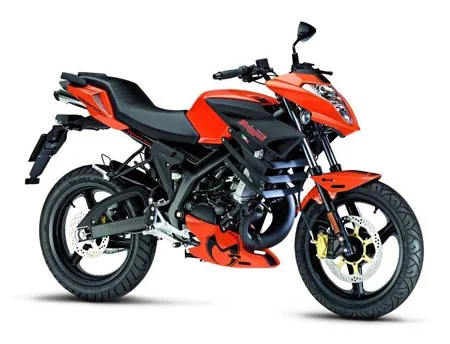

Malaguti Drakon NKD 50
Key specifications
Engine
50 cc
Weight
112 kg
Fuel type
petrol
Fuel capacity
2.6 L
Transmission
6-speed
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Malaguti
- Model
- Drakon NKD 50
- Category
- Naked bike
- Starter
- Electric
- Comments
- A
- special
- Dicati Course
- version ia available.
- Color Options
- Black, Yellow/black
- Clutch
- Multi-disc oil bathed clutch
- Gearbox
- 6-speed
- Fuel System
- Carburettor. Dell´Orto PHBN16
- Bore X Stroke
- 40.3 x 39.0 mm (1.6 x 1.5 inches)
- Compression
- 12.0:1
- Displacement
- 50.00 ccm (3.05 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Separate lubrication by automatic mixing pump
- Valves Per Cylinder
- 4
- Dry Weight
- 112.0 kg (246.9 pounds)
- Fuel Capacity
- 10.00 litres (2.64 gallons)
- Overall Width
- 755 mm (29.7 inches)
- Overall Length
- 1,970 mm (77.6 inches)
- Reserve Fuel Capacity
- 1.20 litres (0.32 gallons)
- Rear Tyre
- 130/70-17
- Front Tyre
- 100/80-17
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Brakes Diameter
- 218 mm (8.6 inches)
- Front Brakes Diameter
- 280 mm (11.0 inches)
Available colors
BlackYellow/black
