2007Scooter

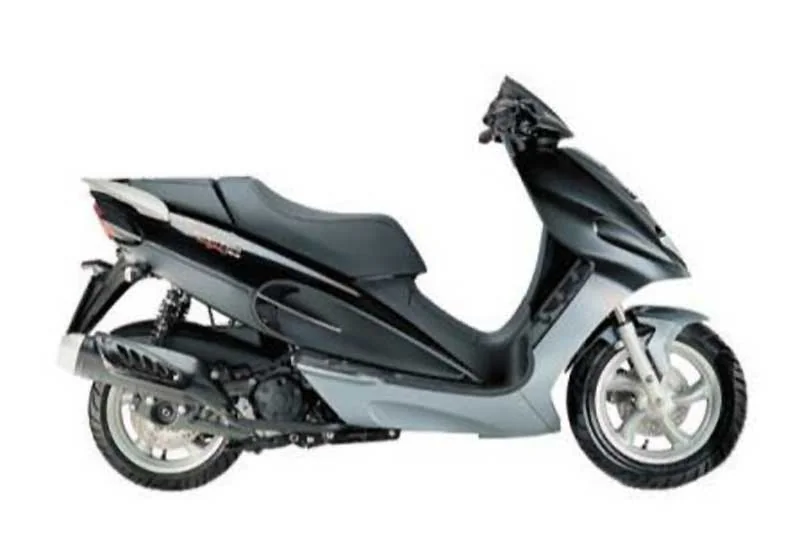

Malaguti Phantom Max 125
Key specifications
Engine
124 cc
Power
13 HP
Torque
11 Nm
Weight
131 kg
Fuel type
petrol
Transmission
Automatic
Seat height
31 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Malaguti
- Model
- Phantom Max 125
- Category
- Scooter
- Starter
- Electric
- Color Options
- Silver
- ,
- Titanium
- ,
- Blue Black
- ,
- Power
- 13.41 HP (9.8 kW)) @ 9500 RPM
- Clutch
- Automatic centrifugal dry clutch
- Torque
- 10.50 Nm (1.1 kgf-m or 7.7 ft.lbs) @ 8000 RPM
- Gearbox
- Automatic
- Bore X Stroke
- 53.7 x 54.8 mm (2.1 x 2.2 inches)
- Compression
- 11.0:1
- Displacement
- 124.00 ccm (7.57 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Exhaust System
- Catalyst exhaust system
- Transmission Type Final Drive
- Belt
- Dry Weight
- 131.0 kg (288.8 pounds)
- Seat Height
- 790 mm (31.1 inches) If adjustable, lowest setting.
- Overall Length
- 1,980 mm (78.0 inches)
- Power Weight Ratio
- 0.1024 HP/kg
- Rear Tyre
- 130/60-13
- Front Tyre
- 130/70-13
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Swinging engine and two hydraulic shock absorbers
- Front Suspension
- Hydraulic fork
- Rear Wheel Travel
- 80 mm (3.1 inches)
- Front Wheel Travel
- 90 mm (3.5 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 220 mm (8.7 inches)
Available colors
SilverDark Blue/TitaniumBlue BlackVelvet Black
