2006Scooter

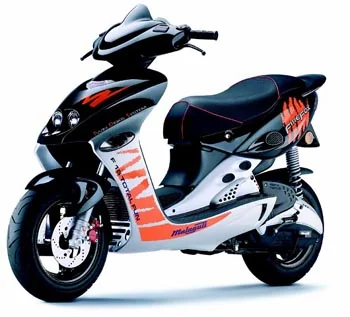

Malaguti Phantom Max 250
Key specifications
Engine
245 cc
Power
22 HP
Torque
20 Nm
Weight
138 kg
Fuel type
petrol
Fuel capacity
2.5 L
Seat height
31 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Malaguti
- Model
- Phantom Max 250
- Category
- Scooter
- Starter
- Electric
- Power
- 22.09 HP (16.1 kW)) @ 8500 RPM
- Clutch
- Automatic centrifugal dry clutch
- Torque
- 20.00 Nm (2.0 kgf-m or 14.8 ft.lbs) @ 6750 RPM
- Fuel System
- Carburettor
- Bore X Stroke
- 72.0 x 60.0 mm (2.8 x 2.4 inches)
- Compression
- 11.0:1
- Displacement
- 244.80 ccm (14.94 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Exhaust System
- Catalyst exhaust system
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Belt
- Dry Weight
- 138.0 kg (304.2 pounds)
- Seat Height
- 790 mm (31.1 inches) If adjustable, lowest setting.
- Fuel Capacity
- 9.40 litres (2.48 gallons)
- Overall Width
- 760 mm (29.9 inches)
- Overall Height
- 1,210 mm (47.6 inches)
- Overall Length
- 1,980 mm (78.0 inches)
- Power Weight Ratio
- 0.1601 HP/kg
- Rear Tyre
- 140/60-14
- Frame Type
- High resistance braced tubular steel frame
- Front Tyre
- 120/70-14
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Swinging engine and 2 hydraulic shock absorbers
- Front Suspension
- Hydraulic fork
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 220 mm (8.7 inches)
