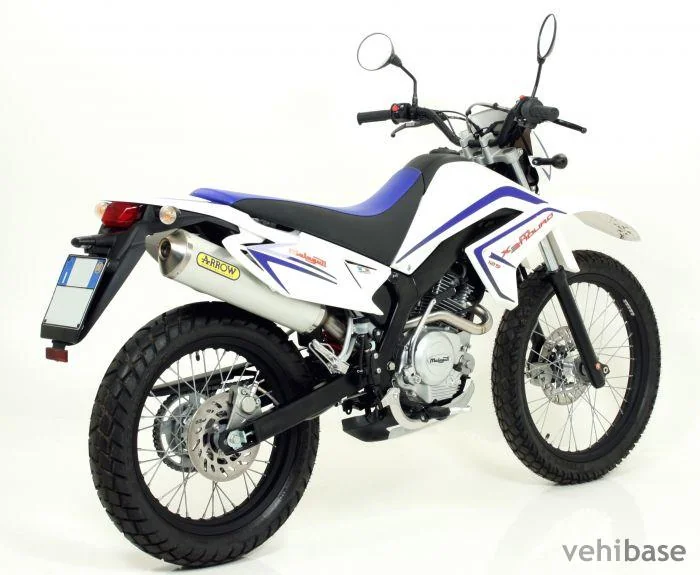

Malaguti X3M 125 Enduro
Key specifications
Engine
125 cc
Power
10 HP
Torque
10 Nm
Weight
113 kg
Fuel type
petrol
Fuel capacity
2.4 L
Transmission
5-speed
Seat height
34 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Malaguti
- Model
- X3M 125 Enduro
- Category
- Super motard
- Starter
- Electric & kick
- Comments
- Italian brand.
- Color Options
- White, titanium
- Power
- 10.19 HP (7.4 kW)) @ 8250 RPM
- Clutch
- Multi-disc oil bathed clutch
- Torque
- 10.10 Nm (1.0 kgf-m or 7.4 ft.lbs) @ 5500 RPM
- Gearbox
- 5-speed
- Fuel System
- Carburettor. Mikuni
- Bore X Stroke
- 54.0 x 54.0 mm (2.1 x 2.1 inches)
- Compression
- 10.0:1
- Displacement
- 125.00 ccm (7.63 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Exhaust System
- Euro 3
- Transmission Type Final Drive
- Chain
- Dry Weight
- 113.0 kg (249.1 pounds)
- Seat Height
- 860 mm (33.9 inches) If adjustable, lowest setting.
- Fuel Capacity
- 9.00 litres (2.38 gallons)
- Overall Width
- 800 mm (31.5 inches)
- Overall Height
- 1,140 mm (44.9 inches)
- Overall Length
- 2,110 mm (83.1 inches)
- Power Weight Ratio
- 0.0902 HP/kg
- Rear Tyre
- 120/80-18
- Frame Type
- Double-cradled tubular steel perimeter frame with modular rear side
- Front Tyre
- 90/90-21
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Swinging arm with single hydraulic shock absorber, 190 mm stroke
- Front Suspension
- 36 mm leading spindle telescopic hydraulic fork, 175 mm
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 240 mm (9.4 inches)
Available colors
Whitetitanium
