Back to Bike FinderYears: 2024
2024Off-road

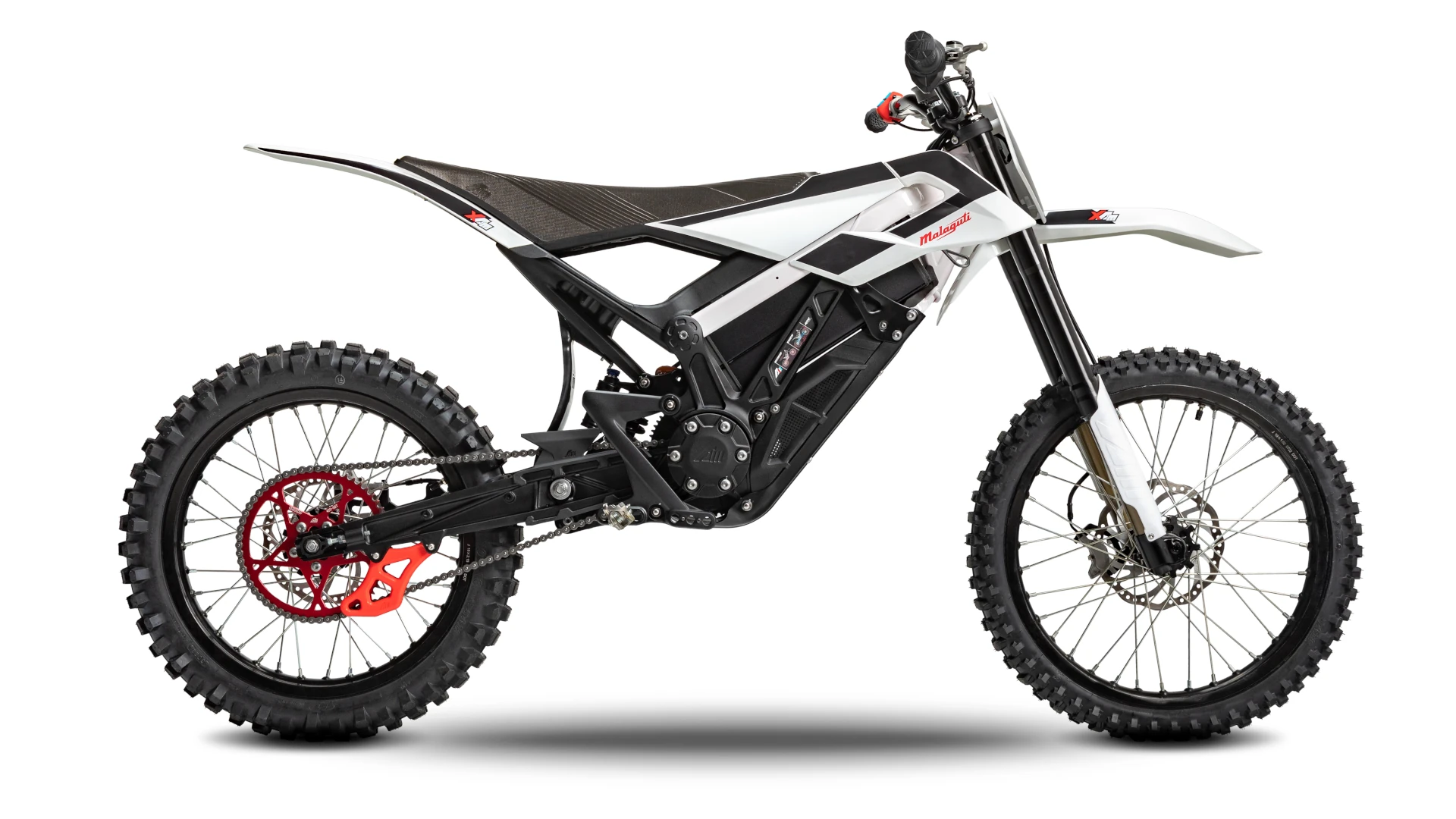

Malaguti XAM Off-Road
Key specifications
Torque
21 Nm
Weight
68 kg
Fuel type
electric
Transmission
1-speed
Seat height
34 mm
Front brakes
Single disc. 4-piston caliper
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Malaguti
- Model
- XAM Off-Road
- Category
- Enduro-offroad
- Starter
- Electric
- Comments
- Range
- 1-2 hours. 72
- V
- 2.59 k
- Wh
- battery.
- Charging
- 2-3 hours.
- Italian
- brand.
- Color Options
- Black/red/white
- Torque
- 21.0 Nm (2.1 kgf-m or 15.5 ft.lbs) @ 2500 RPM
- Gearbox
- 1-speed
- Top Speed
- 80.0 km/h (49.7 mph)
- Engine Type
- Electric
- Engine Details
- Permanent
- magnet synchronous motor.
- Peak
- power 11 k
- Transmission Type Final Drive
- Chain (final drive)
- Dry Weight
- 68.0 kg (149.9 pounds)
- Seat Height
- 860 mm (33.9 inches) If adjustable, lowest setting.
- Overall Width
- 770 mm (30.3 inches)
- Overall Height
- 1080 mm (42.5 inches)
- Overall Length
- 1950 mm (76.8 inches)
- Ground Clearance
- 320 mm (12.6 inches)
- Power Weight Ratio
- 0.0987 HP/kg
- Wheels
- Wire spoked
- Rear Tyre
- 90/100-18
- Front Tyre
- 70/100-19
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc. 4-piston caliper
- Rear Suspension
- Monoshock
- Front Suspension
- Upside-down shock absorber
- Rear Wheel Travel
- 185 mm (7.3 inches)
- Front Wheel Travel
- 200 mm (7.9 inches)
- Rear Brakes Diameter
- 200 mm (7.9 inches)
- Front Brakes Diameter
- 200 mm (7.9 inches)
Available colors
Black/red/white
