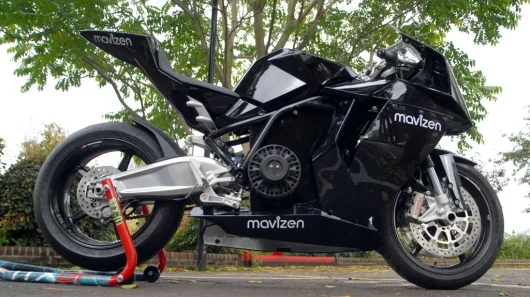

Mavizen TTX02

Key specifications

Power

100 HP

Torque

105 Nm

Weight

115 kg

Fuel type

electric

Seat height

32 mm

Front brakes

Double disc

Rear brakes

Single disc

Technical details

Source specification data

Make: Mavizen
Model: TTX02
Category: Sport

Starter

Electric

Comments

Swappable: drivetrain and batteries at trackside.
P: connectivity.
Linux: based.
B: based system bus allows a virtually unlimited number of peripherals to extend the capabilities of the machine with plug’n’play.
Remote: factory support package available.

Electrical

V: 7.5 k
Wh Lithium Polymer Battery Pack: .
Charge: time: 4 hours.

Instruments

Touch: screen user interface and on board
C: that is integrated into the bike´s electronics.

Color Options

Black

Power: 100.00 HP (73.0 kW)) @ 5800 RPM
Torque: 105.00 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 5800 RPM
Top Speed: 210.0 km/h (130.5 mph)
Engine Type: Twin DC Brushed Electric Motors.
Cooling System: Air
Engine Details: Electric
Zero To One Hundred: 5.000 seconds
Transmission Type Final Drive: Chain

Dry Weight: 115.0 kg (253.5 pounds)
Seat Height: 805 mm (31.7 inches) If adjustable, lowest setting.
Ground Clearance: 110 mm (4.3 inches)
Power Weight Ratio: 0.8696 HP/kg
Weight Incl Oil Gas Etc: 170.0 kg (374.8 pounds)

Rake

23.3°

Trail

90 mm (3.5 inches)

Rear Tyre

190/55-17

Frame Type

Powder: coated
Chromium: -
Molybdenum: trellis

Front Tyre

120/70-17

Rear Brakes

Single disc

Front Brakes

Double disc

Rear Suspension

WP-Monoshock

Front Suspension

WP-USD, 43 mm

Available colors

Black
