Back to Bike FinderYears: 2005
2007Scooter

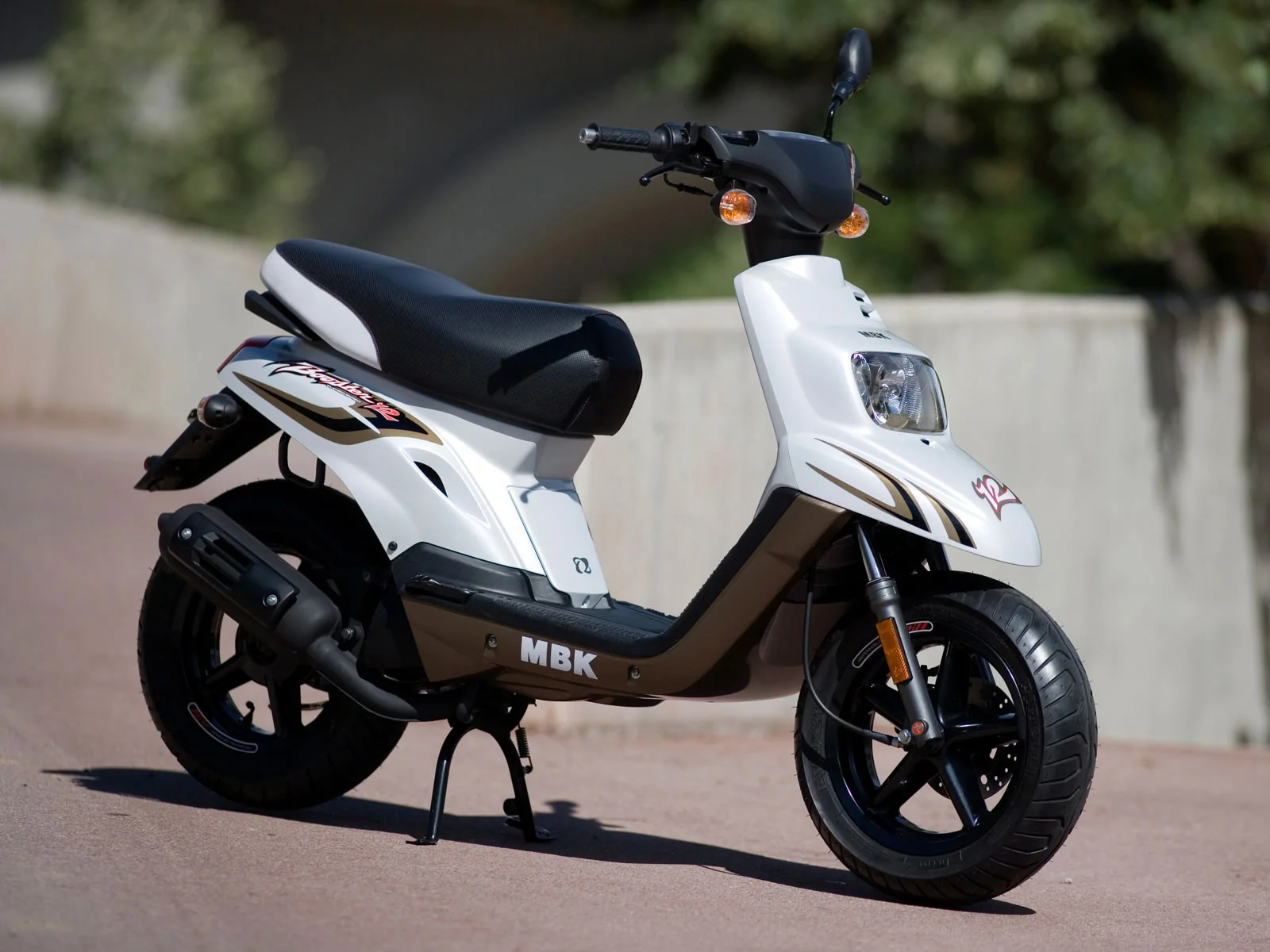

MBK Booster 12inch
Key specifications
Engine
49 cc
Power
3 HP
Torque
4 Nm
Weight
75 kg
Fuel type
petrol
Fuel capacity
1.4 L
Transmission
Automatic
Seat height
30 mm
Front brakes
Single disc. Disc, Ø 180
Rear brakes
Expanding brake (drum brake). Drum, Ø 110
Technical details
Source specification data
- Make
- MBK
- Model
- Booster 12inch
- Category
- Scooter
- Starter
- Electric & kick
- Color Options
- Jet Black, Light/Tech Gold
- Power
- 3.21 HP (2.3 kW)) @ 6500 RPM
- Torque
- 3.60 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 6000 RPM
- Gearbox
- Automatic
- Ignition
- Electronic (C.D.I.)
- Fuel System
- Carburettor. GURTNER PY-12
- Bore X Stroke
- 40.0 x 39.2 mm (1.6 x 1.5 inches)
- Displacement
- 49.00 ccm (2.99 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, two-stroke
- Lubrication System
- Separate lubrication
- Transmission Type Final Drive
- Belt
- Dry Weight
- 75.0 kg (165.3 pounds)
- Seat Height
- 768 mm (30.2 inches) If adjustable, lowest setting.
- Fuel Capacity
- 5.30 litres (1.40 gallons)
- Overall Width
- 675 mm (26.6 inches)
- Overall Height
- 1,049 mm (41.3 inches)
- Overall Length
- 1,685 mm (66.3 inches)
- Ground Clearance
- 124 mm (4.9 inches)
- Power Weight Ratio
- 0.0428 HP/kg
- Rear Tyre
- 130/70-12
- Front Tyre
- 120/70-12
- Rear Brakes
- Expanding
- brake (drum brake).
- Drum
- , Ø 110
- Front Brakes
- Single disc. Disc, Ø 180
- Rear Suspension
- Hydraulic unit swing
- Front Suspension
- Hydraulic and telescopic fork
- Rear Wheel Travel
- 70 mm (2.8 inches)
- Front Wheel Travel
- 70 mm (2.8 inches)
Available colors
Jet BlackLight/Tech Gold
