Back to Bike FinderYears: 2009
2009Scooter

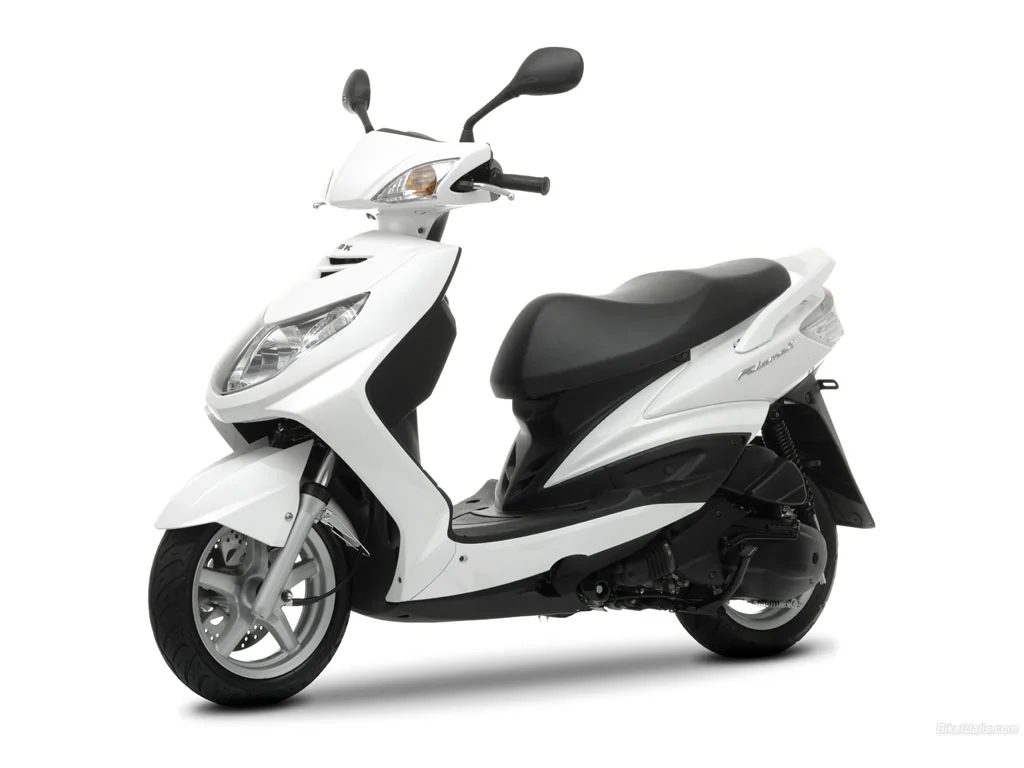

MBK Flame X 125
Key specifications
Engine
125 cc
Power
11 HP
Torque
9 Nm
Fuel type
petrol
Fuel capacity
1.9 L
Seat height
31 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- MBK
- Model
- Flame X 125
- Category
- Scooter
- Starter
- Electric & kick
- Color Options
- Black, white
- Power
- 10.72 HP (7.8 kW)) @ 8500 RPM
- Torque
- 9.30 Nm (0.9 kgf-m or 6.9 ft.lbs) @ 7500 RPM
- Ignition
- TCI
- Fuel System
- Carburettor. CVK24
- Bore X Stroke
- 52.4 x 57.9 mm (2.1 x 2.3 inches)
- Compression
- 10.0:1
- Displacement
- 125.00 ccm (7.63 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Wet sump
- Transmission Type Final Drive
- Belt
- Seat Height
- 785 mm (30.9 inches) If adjustable, lowest setting.
- Fuel Capacity
- 7.10 litres (1.88 gallons)
- Overall Length
- 1,855 mm (73.0 inches)
- Rear Tyre
- 120/70-12
- Front Tyre
- 110/70-12
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- UNit swing
- Front Suspension
- Telescopic fork
- Rear Wheel Travel
- 105 mm (4.1 inches)
- Front Wheel Travel
- 100 mm (3.9 inches)
- Rear Brakes Diameter
- 150 mm (5.9 inches)
- Front Brakes Diameter
- 216 mm (8.5 inches)
Available colors
Blackwhite
