Back to Bike FinderYears: 2007 · 2006 · 2005
2007Scooter

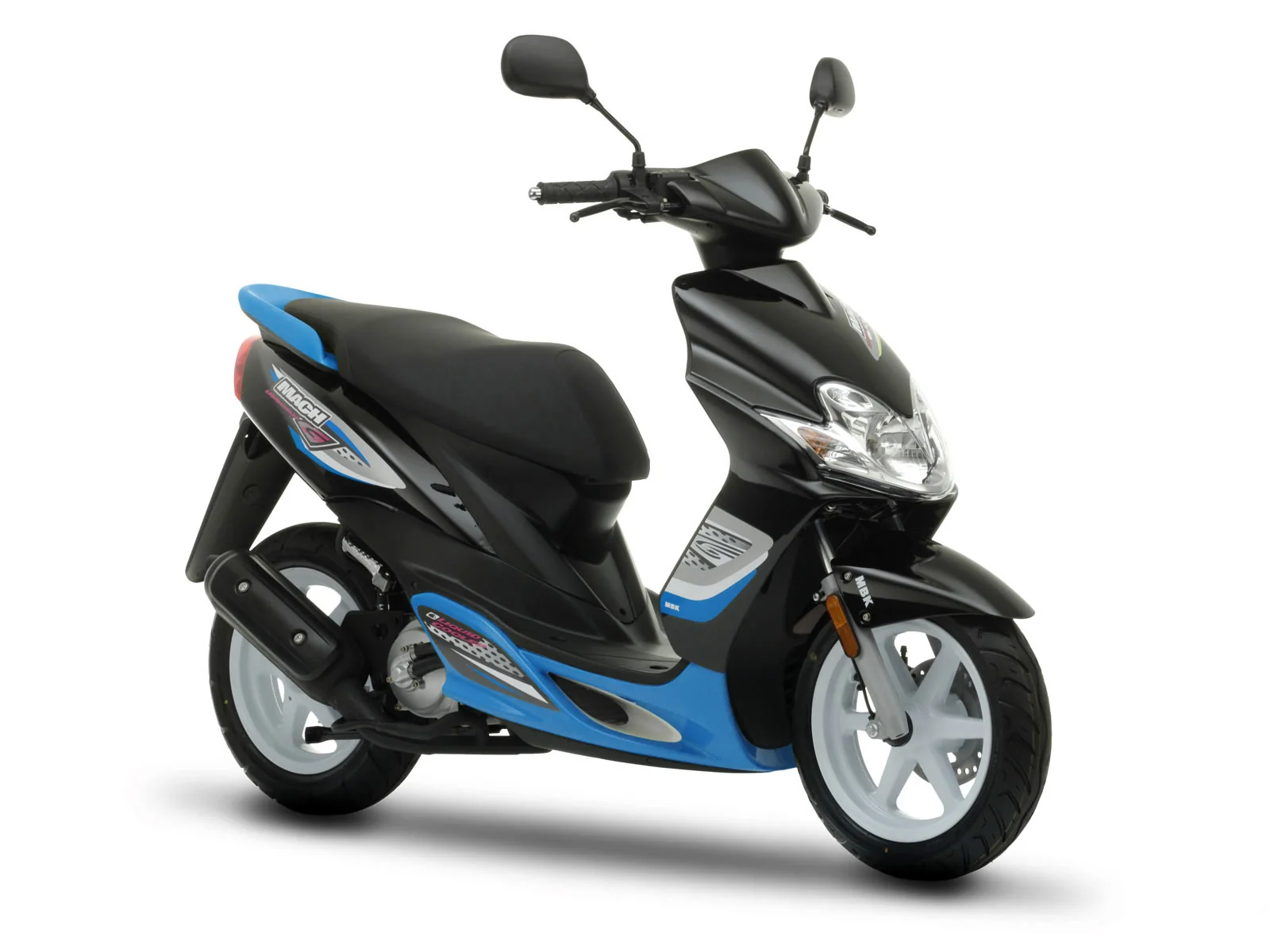

MBK MachG AC
Key specifications
Engine
49 cc
Power
2 HP
Torque
2 Nm
Weight
76 kg
Fuel type
petrol
Fuel capacity
1.5 L
Transmission
Automatic
Seat height
30 mm
Front brakes
Single disc. Disc, Ø 190
Rear brakes
Expanding brake (drum brake). Drum, Ø 110
Technical details
Source specification data
- Make
- MBK
- Model
- MachG AC
- Category
- Scooter
- Starter
- Electric & kick
- Color Options
- Concrete Grey, Blue Topaz
- Power
- 2.15 HP (1.6 kW)) @ 6750 RPM
- Torque
- 2.46 Nm (0.3 kgf-m or 1.8 ft.lbs) @ 4500 RPM
- Gearbox
- Automatic
- Ignition
- Electronic (C.D.I.)
- Fuel System
- Carburettor. GURTNER PY-12
- Bore X Stroke
- 40.0 x 39.2 mm (1.6 x 1.5 inches)
- Compression
- 10.2:1
- Displacement
- 49.00 ccm (2.99 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, two-stroke
- Lubrication System
- Separate lubrication
- Transmission Type Final Drive
- Belt
- Dry Weight
- 76.0 kg (167.6 pounds)
- Seat Height
- 770 mm (30.3 inches) If adjustable, lowest setting.
- Fuel Capacity
- 5.50 litres (1.45 gallons)
- Overall Width
- 675 mm (26.6 inches)
- Overall Height
- 1,065 mm (41.9 inches)
- Overall Length
- 1,740 mm (68.5 inches)
- Ground Clearance
- 132 mm (5.2 inches)
- Power Weight Ratio
- 0.0283 HP/kg
- Rear Tyre
- 130/70-12
- Front Tyre
- 110/70-12
- Rear Brakes
- Expanding
- brake (drum brake).
- Drum
- , Ø 110
- Front Brakes
- Single disc. Disc, Ø 190
- Rear Suspension
- Hydraulic unit swing
- Front Suspension
- Hydraulic and telescopic fork
- Rear Wheel Travel
- 60 mm (2.4 inches)
- Front Wheel Travel
- 70 mm (2.8 inches)
Available colors
Concrete GreyBlue Topaz
