2005Scooter

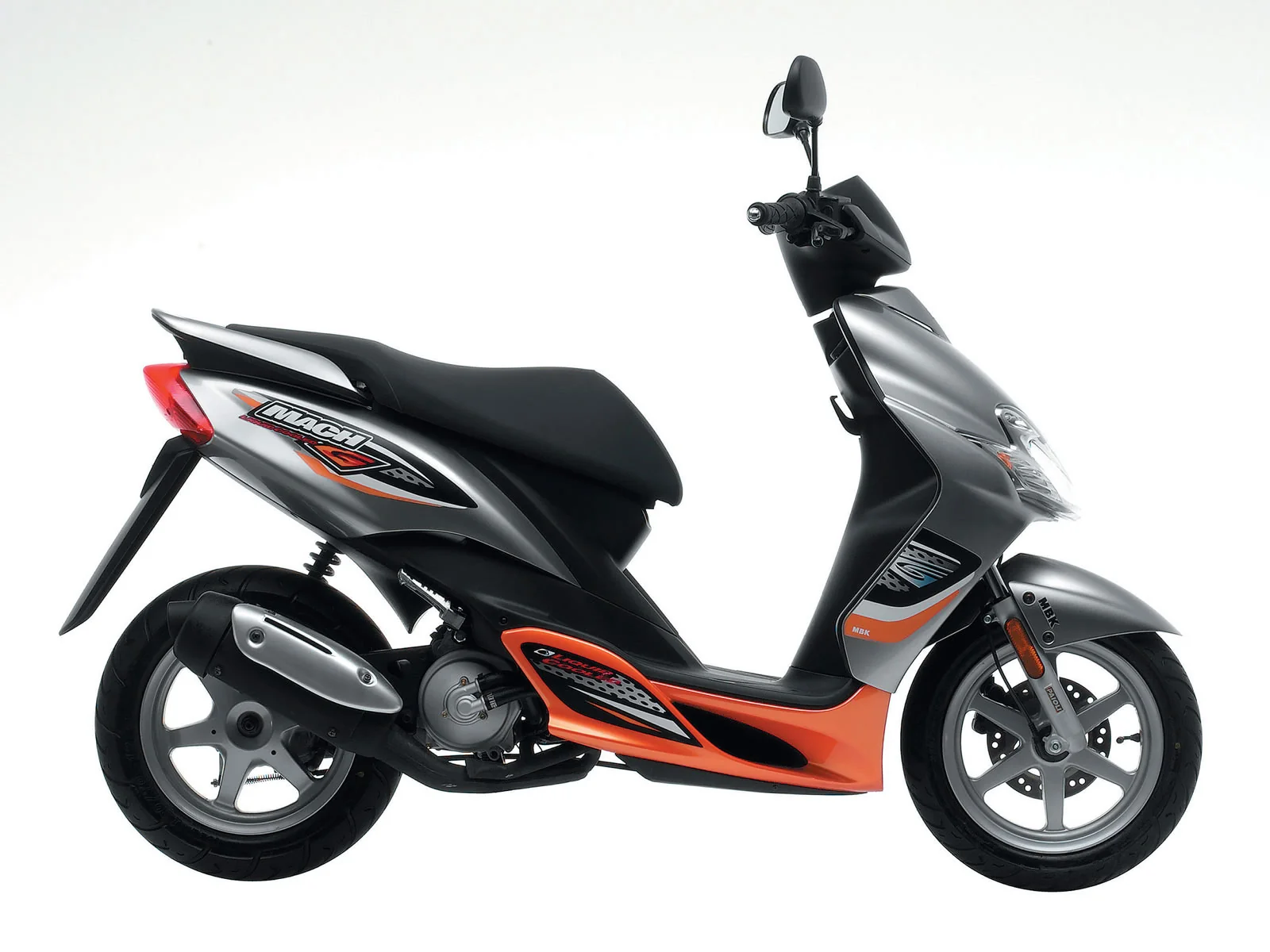

MBK MachG LC
Key specifications
Engine
49 cc
Power
3 HP
Torque
4 Nm
Weight
77 kg
Fuel type
petrol
Fuel capacity
1.4 L
Seat height
31 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- MBK
- Model
- MachG LC
- Category
- Scooter
- Starter
- Electric & kick
- Power
- 2.80 HP (2.0 kW)) @ 6750 RPM
- Clutch
- Automatic centrifugal
- Torque
- 3.98 Nm (0.4 kgf-m or 2.9 ft.lbs) @ 6500 RPM
- Ignition
- Electronic (C.D.I.)
- Bore X Stroke
- 40.0 x 39.2 mm (1.6 x 1.5 inches)
- Compression
- 10.2:1
- Displacement
- 49.00 ccm (2.99 cubic inches)
- Cooling System
- Liquid
- Engine Details
- In-line six, two-stroke
- Lubrication System
- Separate lubrication
- Dry Weight
- 77.0 kg (169.8 pounds)
- Seat Height
- 776 mm (30.6 inches) If adjustable, lowest setting.
- Fuel Capacity
- 5.30 litres (1.40 gallons)
- Ground Clearance
- 132 mm (5.2 inches)
- Power Weight Ratio
- 0.0364 HP/kg
- Rear Tyre
- 130/70-12
- Front Tyre
- 110/70-12
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Single shock
- Front Suspension
- Hydraulic and telescopic fork
- Rear Brakes Diameter
- 110 mm (4.3 inches)
- Front Brakes Diameter
- 190 mm (7.5 inches)
