Back to Bike FinderYears: 2017
2017Off-road

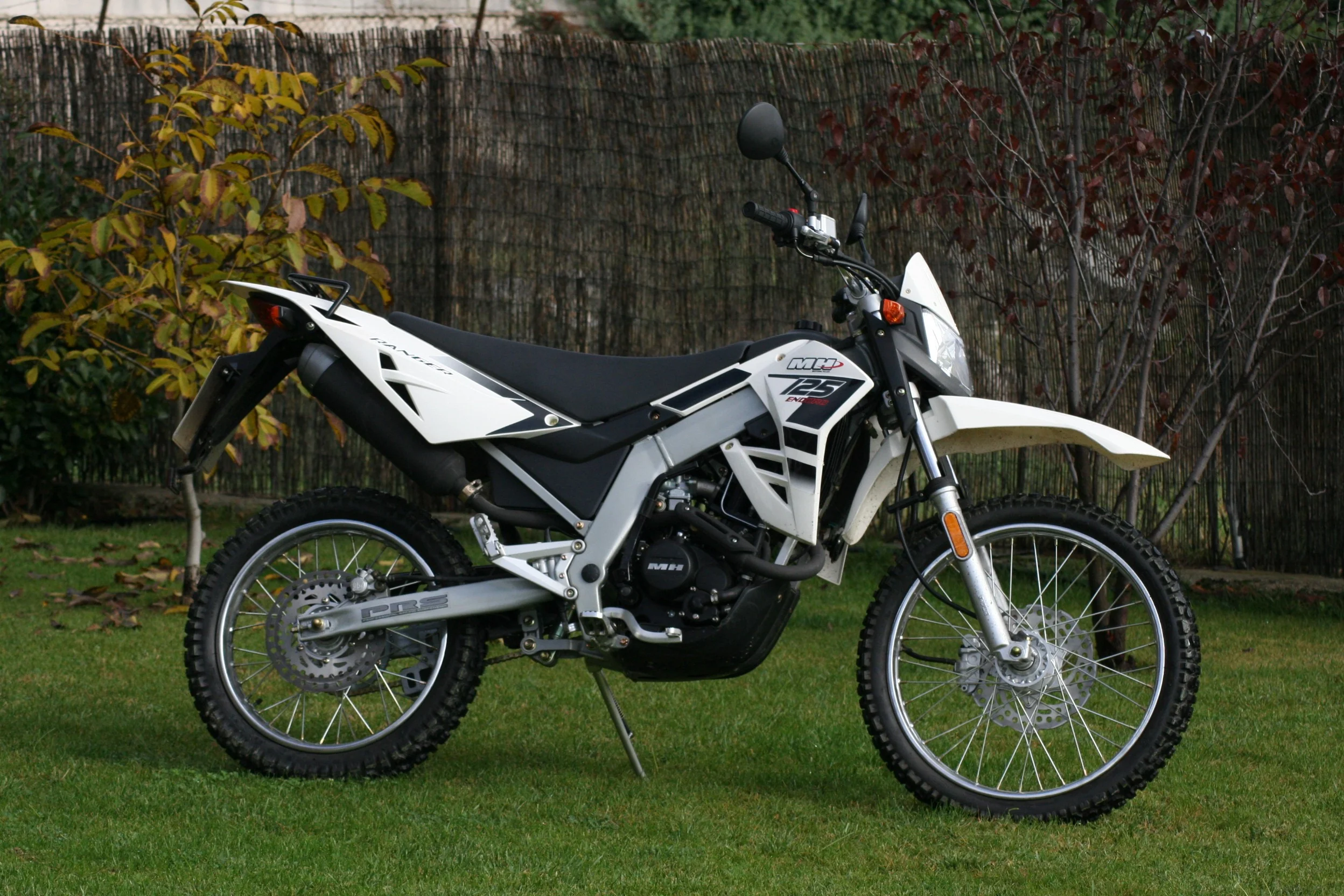

MH Ranger 125 LC
$2,275
Key specifications
Engine
125 cc
Power
12 HP
Torque
9 Nm
Weight
127 kg
Fuel type
petrol
Fuel capacity
4.5 L
Transmission
5-speed
Seat height
32 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- MH
- Model
- Ranger 125 LC
- Price
- Euro
- 2275.
- Prices
- depend on country, taxes, accessories, etc.
- Category
- Enduro-offroad
- Starter
- Electric & kick
- Comments
- Brand
- previously called
- Motorhispania
- .
- Made
- in
- Spain
- .
- Color Options
- White/black
- Power
- 12.00 HP (8.8 kW)) @ 8500 RPM
- Clutch
- Wet, multidisk
- Torque
- 9.20 Nm (0.9 kgf-m or 6.8 ft.lbs) @ 7500 RPM
- Gearbox
- 5-speed
- Ignition
- C.D.I.
- Fuel System
- Carburettor. Keihin 26 mm.
- Displacement
- 125.00 ccm (7.63 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Emission Details
- Euro 3
- Fuel Consumption
- 2.20 litres/100 km (45.5 km/l or 106.92 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Transmission Type Final Drive
- Chain
- Dry Weight
- 127.0 kg (280.0 pounds)
- Seat Height
- 810 mm (31.9 inches) If adjustable, lowest setting.
- Fuel Capacity
- 17.00 litres (4.49 gallons)
- Overall Width
- 855 mm (33.7 inches)
- Overall Height
- 1,066 mm (42.0 inches)
- Overall Length
- 2,010 mm (79.1 inches)
- Power Weight Ratio
- 0.0945 HP/kg
- Rear Tyre
- 110/80-18
- Frame Type
- Double firder in steel
- Front Tyre
- 80/90-21
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Double monoshock arm with crank of progressive system and absorver with adjustable wharf
- Front Suspension
- Telescopic fork
- Rear Brakes Diameter
- 210 mm (8.3 inches)
- Front Brakes Diameter
- 280 mm (11.0 inches)
Available colors
White/black
