Back to Bike FinderYears: 2013
2013Scooter

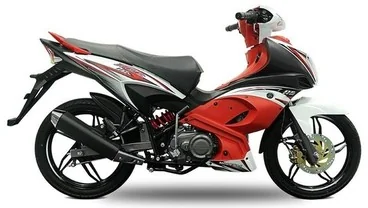

Modenas Ace 115
Key specifications
Engine
120 cc
Fuel type
petrol
Fuel capacity
1.4 L
Transmission
4-speed
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Modenas
- Model
- Ace 115
- Category
- Scooter
- Starter
- Electric
- Comments
- Malaysian cub.
- Electrical
- 12 V 5 Ah battery.
- Color Options
- Red, blue
- Clutch
- Centrifugal and wet mutiple disc
- Gearbox
- 4-speed
- Ignition
- Magneto - CDI
- Driveline
- Chassis
- Fuel System
- Carburettor
- Bore X Stroke
- 55.0 x 50.6 mm (2.2 x 2.0 inches)
- Compression
- 9.8:1
- Displacement
- 120.00 ccm (7.32 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Fuel Consumption
- 46.10 litres/100 km (2.2 km/l or 5.10 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Fuel Capacity
- 5.30 litres (1.40 gallons)
- Frame Type
- Square Pipe Backbone
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Trailing Swing
- Front Suspension
- Telescopic fork
- Rear Brakes Diameter
- 110 mm (4.3 inches)
- Front Brakes Diameter
- 220 mm (8.7 inches)
Available colors
Redblue
