Back to Bike FinderYears: 2024
2024Scooter

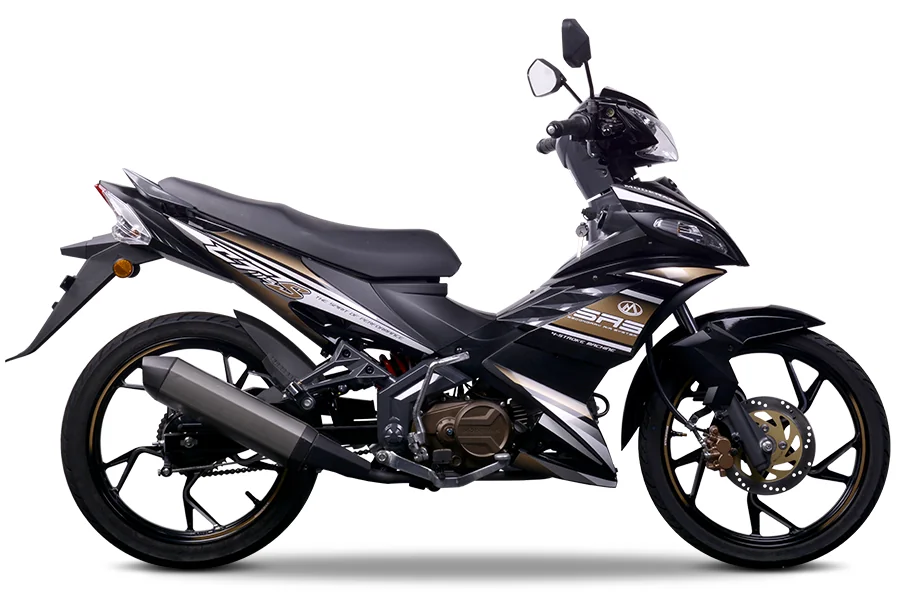

Modenas CT 115S
Key specifications
Torque
8 Nm
Fuel type
petrol
Fuel capacity
1.4 L
Transmission
4-speed
Seat height
30 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Modenas
- Model
- CT 115S
- Category
- Scooter
- Starter
- Kick
- Comments
- Made in Malaysia.
- Electrical
- 12 Volt 5 Ah battery
- Instruments
- Analogue
- Color Options
- Black, red, blue
- Clutch
- Centrifugal and wet multiple disc
- Torque
- 8.1 Nm (0.8 kgf-m or 6.0 ft.lbs) @ 5000 RPM
- Gearbox
- 4-speed
- Ignition
- Magneto to CDI
- Fuel System
- Carburettor. Spaco AV20
- Bore X Stroke
- 53.8 x 50.6 mm (2.1 x 2.0 inches)
- Compression
- 9.0:1
- Cooling System
- Air
- Fuel Consumption
- 2.13 litres/100 km (46.9 km/l or 110.43 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Transmission Type Final Drive
- Chain (final drive)
- Seat Height
- 750 mm (29.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 5.30 litres (1.40 US gallons)
- Overall Width
- 725 mm (28.5 inches)
- Overall Height
- 1084 mm (42.7 inches)
- Overall Length
- 1970 mm (77.6 inches)
- Ground Clearance
- 145 mm (5.7 inches)
- Weight Incl Oil Gas Etc
- 99.0 kg (218.3 pounds)
- Wheels
- Alloy rims
- Rear Tyre
- 80/90-17
- Frame Type
- Pipe backbone
- Front Tyre
- 70/90-17
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Trailing swing arm suspension
- Front Suspension
- Telescopic fork
- Rear Brakes Diameter
- 110 mm (4.3 inches)
- Front Brakes Diameter
- 220 mm (8.7 inches)
Available colors
Blackredblue
