2010Cruiser

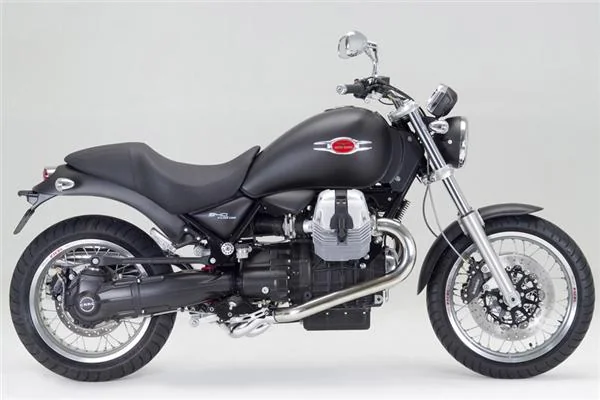

Moto Guzzi Bellagio
Key specifications
Engine
936 cc
Power
74 HP
Torque
78 Nm
Weight
223 kg
Fuel type
petrol
Fuel capacity
5.0 L
Transmission
6-speed
Seat height
30 mm
Front brakes
Double disc. Stainless steel discs, floating Brembo calipers with 2 parallel pistons.
Rear brakes
Single disc. Fixed stainless steel disc, floating Brembo calipers with 2 parallel pistons.
Technical details
Source specification data
- Make
- Moto Guzzi
- Model
- Bellagio
- Category
- Custom-cruiser
- Color Options
- Black, gray
- Power
- 73.75 HP (53.8 kW)) @ 7200 RPM
- Clutch
- Dry mechanically operated twin plate
- Torque
- 78.00 Nm (8.0 kgf-m or 57.5 ft.lbs) @ 6000 RPM
- Gearbox
- 6-speed
- Fuel System
- Injection
- Bore X Stroke
- 95.0 x 66.0 mm (3.7 x 2.6 inches)
- Compression
- 10.0:1
- Displacement
- 935.60 ccm (57.09 cubic inches)
- Cooling System
- Air
- Engine Details
- V2, four-stroke
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Shaft drive (cardan)
- Dry Weight
- 223.0 kg (491.6 pounds)
- Seat Height
- 760 mm (29.9 inches) If adjustable, lowest setting.
- Fuel Capacity
- 19.00 litres (5.02 gallons)
- Overall Width
- 820 mm (32.3 inches)
- Overall Height
- 1,130 mm (44.5 inches)
- Overall Length
- 2,253 mm (88.7 inches)
- Ground Clearance
- 150 mm (5.9 inches)
- Power Weight Ratio
- 0.3307 HP/kg
- Reserve Fuel Capacity
- 4.00 litres (1.06 gallons)
- Weight Incl Oil Gas Etc
- 237.0 kg (522.5 pounds)
- Rake
- 28.0°
- Trail
- 138 mm (5.4 inches)
- Rear Tyre
- 180/55-ZR17
- Frame Type
- Very rigid high tensile steel tubular twin cradle
- Front Tyre
- 120/70-ZR18
- Rear Brakes
- Single
- disc.
- Fixed
- stainless steel disc, floating
- Brembo
- calipers with 2 parallel pistons.
- Front Brakes
- Double
- disc.
- Stainless
- steel discs, floating
- Brembo
- calipers with 2 parallel pistons.
- Rear Suspension
- Single swingarm with progressive action and ndash
- Front Suspension
- Marzocchi 45 mm adjustable front forks
- Rear Wheel Travel
- 120 mm (4.7 inches)
- Front Wheel Travel
- 140 mm (5.5 inches)
- Rear Brakes Diameter
- 282 mm (11.1 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Blackgray
