2018Allround

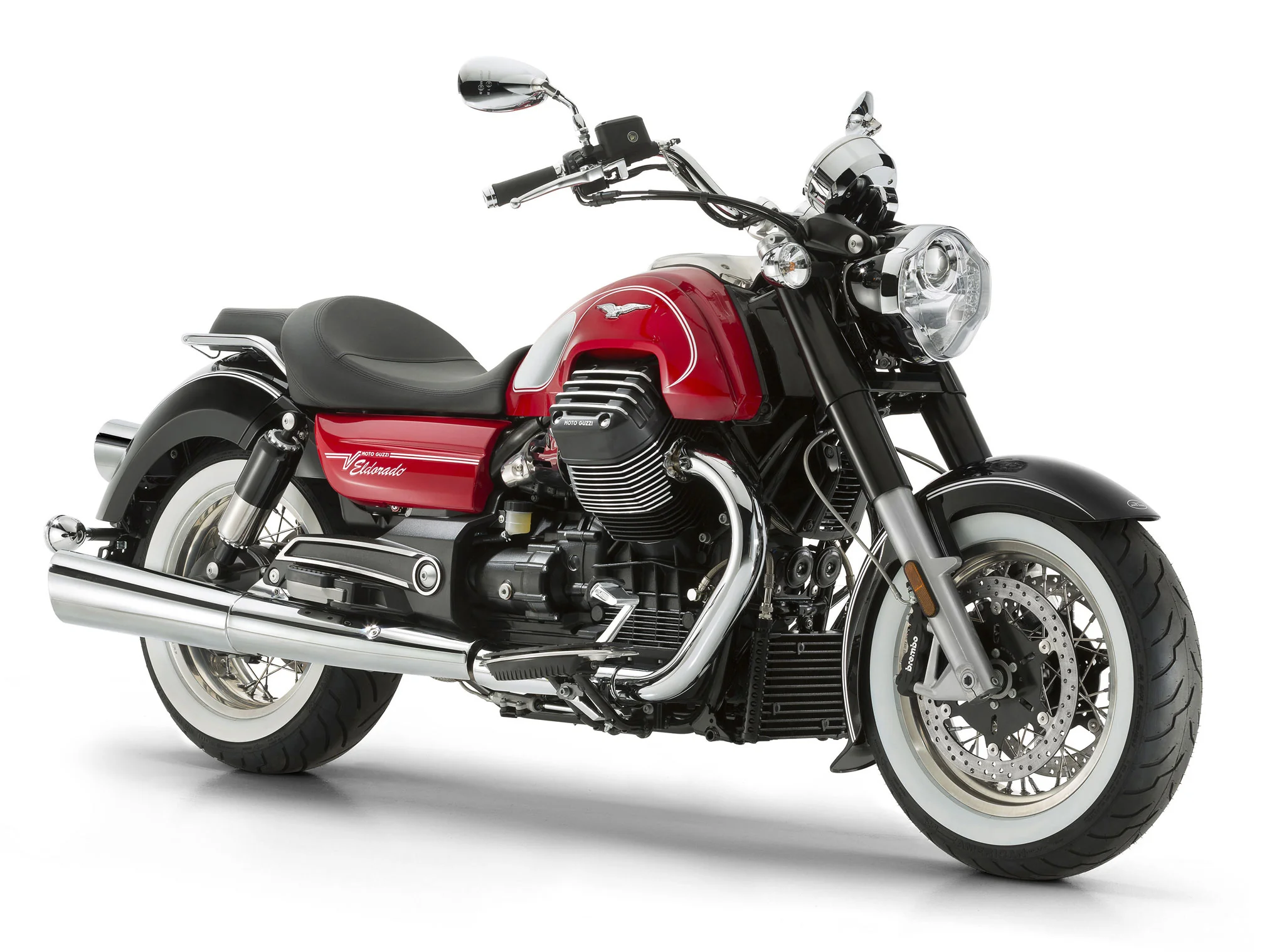

Moto Guzzi Eldorado
$16,490
Key specifications
Engine
1380 cc
Power
96 HP
Torque
121 Nm
Fuel type
petrol
Fuel capacity
5.4 L
Transmission
6-speed
Seat height
29 mm
Front brakes
Double disc. ABS. Floating discs.
Rear brakes
Single disc. ABS. Floating disc.
Technical details
Source specification data
- Make
- Moto Guzzi
- Model
- Eldorado
- Price
- S
- $ 16490.
- Prices
- depend on country, taxes, accessories, etc.
- Category
- Classic
- Starter
- Electric
- Comments
- Ride by Wire with 3 engine maps
- Color Options
- Black, Red
- Power
- 96.00 HP (70.1 kW)) @ 6500 RPM
- Clutch
- Dry single plate with flexible couplings
- Torque
- 121.00 Nm (12.3 kgf-m or 89.2 ft.lbs) @ 3000 RPM
- Gearbox
- 6-speed
- Driveline
- CA.R.C. Compact Reactive Shaft Drive
- Fuel System
- Injection
- .
- Weber
- -
- Marelli
- electronic fuel injection.
- Bore X Stroke
- 104.0 x 81.2 mm (4.1 x 3.2 inches)
- Compression
- 10.5:1
- Displacement
- 1380.00 ccm (84.21 cubic inches)
- Cooling System
- Oil & air
- Engine Details
- V2, four-stroke
- Exhaust System
- Stainless steel, 2-in-2 type, 3-way catalytic converter with double oxygen sensor
- Emission Details
- Euro 3
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Shaft drive (cardan)
- Seat Height
- 740 mm (29.1 inches) If adjustable, lowest setting.
- Fuel Capacity
- 20.44 litres (5.40 gallons)
- Overall Width
- 940 mm (37.0 inches)
- Overall Height
- 1,113 mm (43.8 inches)
- Overall Length
- 2,445 mm (96.3 inches)
- Ground Clearance
- 165 mm (6.5 inches)
- Reserve Fuel Capacity
- 2.50 litres (0.66 gallons)
- Weight Incl Oil Gas Etc
- 314.0 kg (692.3 pounds)
- Rake
- 33.0°
- Trail
- 144 mm (5.7 inches)
- Wheels
- Polished
- aluminum, spoked.
- Metzeler Lasertec
- tyres.
- Rear Tyre
- 130/80-17
- Frame Type
- Double
- cradle tubular frame in
- S
- steel with detachable rear subframe
- Front Tyre
- 100/90-18
- Rear Brakes
- Single disc. ABS. Floating disc.
- Front Brakes
- Double disc. ABS. Floating discs.
- Rear Suspension
- Swingarm with double shock absorber adjustable spring preload
- Front Suspension
- Standard swingarm 46 mm, with radical calliper mountain bracket and telescopes on the stanchions
- Rear Wheel Travel
- 120 mm (4.7 inches)
- Front Wheel Travel
- 120 mm (4.7 inches)
- Rear Brakes Diameter
- 282 mm (11.1 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
BlackRed
