Back to Bike FinderYears: 2012 · 2011 · 2007
2012Naked

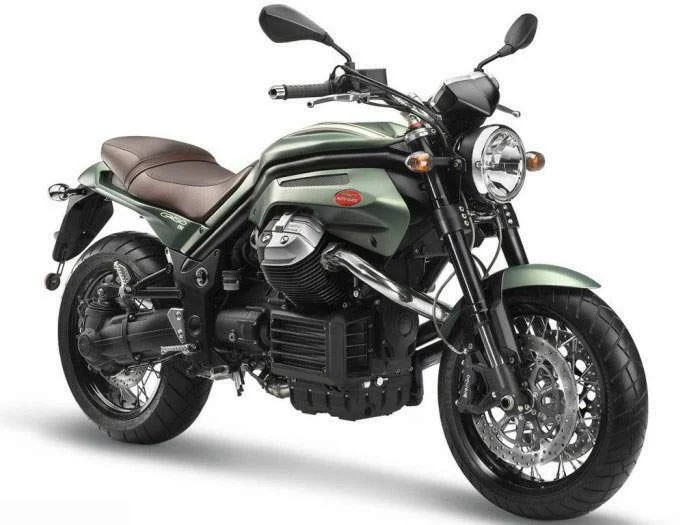

Moto Guzzi Griso 1200 8V
$14,290
Key specifications
Engine
1151 cc
Power
110 HP
Torque
108 Nm
Weight
222 kg
Fuel type
petrol
Fuel capacity
4.4 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc. Stainless steel wave discs, radial calipers with 4 opposed pistons.
Rear brakes
Single disc. Fixed stainless steel disc, floating caliper with 2 parallel pistons.
Technical details
Source specification data
- Make
- Moto Guzzi
- Model
- Griso 1200 8V
- Price
- S
- $ 14290.
- Prices
- depend on country, taxes, accessories, etc.
- Category
- Naked bike
- Starter
- Electric
- Color Options
- Guzzi Black
- Power
- 110.00 HP (80.3 kW)) @ 7500 RPM
- Clutch
- Single plate with integrated flexible couplings
- Torque
- 108.00 Nm (11.0 kgf-m or 79.7 ft.lbs) @ 6400 RPM
- Gearbox
- 6-speed
- Ignition
- Inductive discharge, digitally controlled, electronic twin spark ignition
- Driveline
- Primary
- drive:
- Helicoidal
- gears, ratio 26/35 = 1 : 1.346.
- Final
- drive
- A
- .
- R
- .
- C
- reactive drive; double universal joint with floating bevel gear, ratio 12/44 = 1 : 3,666
- Engine Type
- V 90 twin
- Fuel System
- Injection. Weber-Marelli
- Bore X Stroke
- 95.0 x 81.2 mm (3.7 x 3.2 inches)
- Compression
- 11.0:1
- Displacement
- 1151.00 ccm (70.23 cubic inches)
- Cooling System
- Air
- Engine Details
- V2, four-stroke
- Exhaust System
- Stainless
- steel two-into-one 3-way catalysed with
- Lambda
- probe.
- Emission Details
- Three
- way catalyser and
- Lambda
- probe oxygen sensor
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Shaft drive (cardan)
- Dry Weight
- 222.0 kg (489.4 pounds)
- Seat Height
- 800 mm (31.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.70 litres (4.41 gallons)
- Overall Width
- 830 mm (32.7 inches)
- Overall Height
- 1,070 mm (42.1 inches)
- Overall Length
- 2,260 mm (89.0 inches)
- Ground Clearance
- 185 mm (7.3 inches)
- Power Weight Ratio
- 0.4955 HP/kg
- Reserve Fuel Capacity
- 3.30 litres (0.87 gallons)
- Rake
- 26.3°
- Trail
- 108 mm (4.3 inches)
- Wheels
- Three-spoked aluminum alloy
- Rear Tyre
- 180/55-ZR17
- Frame Type
- Double cradle, in high tensile strength tubular steel
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single
- disc.
- Fixed
- stainless steel disc, floating caliper with 2 parallel pistons.
- Front Brakes
- Double
- disc.
- Stainless
- steel wave discs, radial calipers with 4 opposed pistons.
- Rear Suspension
- Progressive single swingarm, fully adjustable monoshock with separate gas reservoir (spring preload and hydraulic for rebound and compression).
- Front Suspension
- Upside down fork, fully adjustable in spring preload and compression and rebound damping
- Rear Wheel Travel
- 110 mm (4.3 inches)
- Front Wheel Travel
- 120 mm (4.7 inches)
- Rear Brakes Diameter
- 282 mm (11.1 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Guzzi Black
